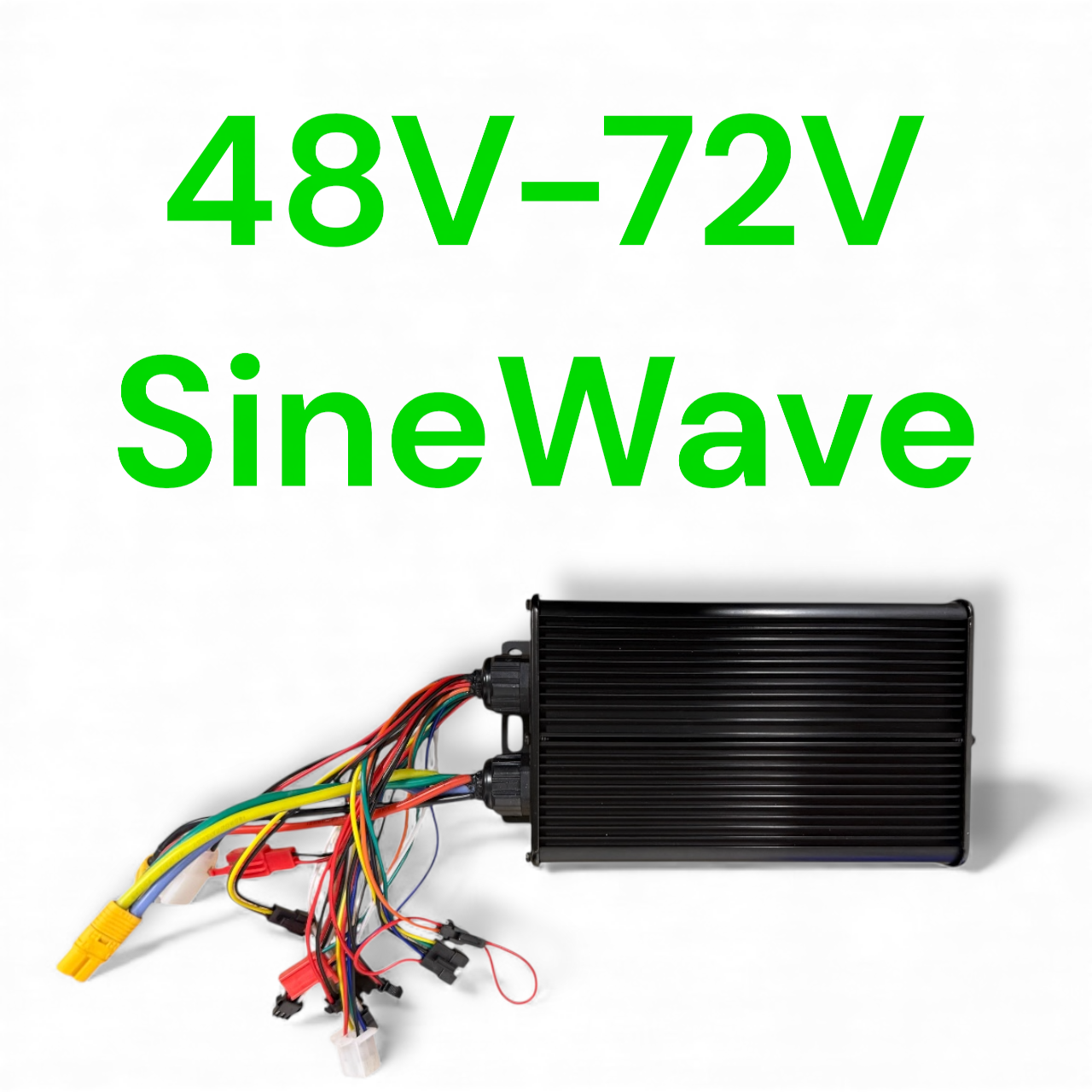

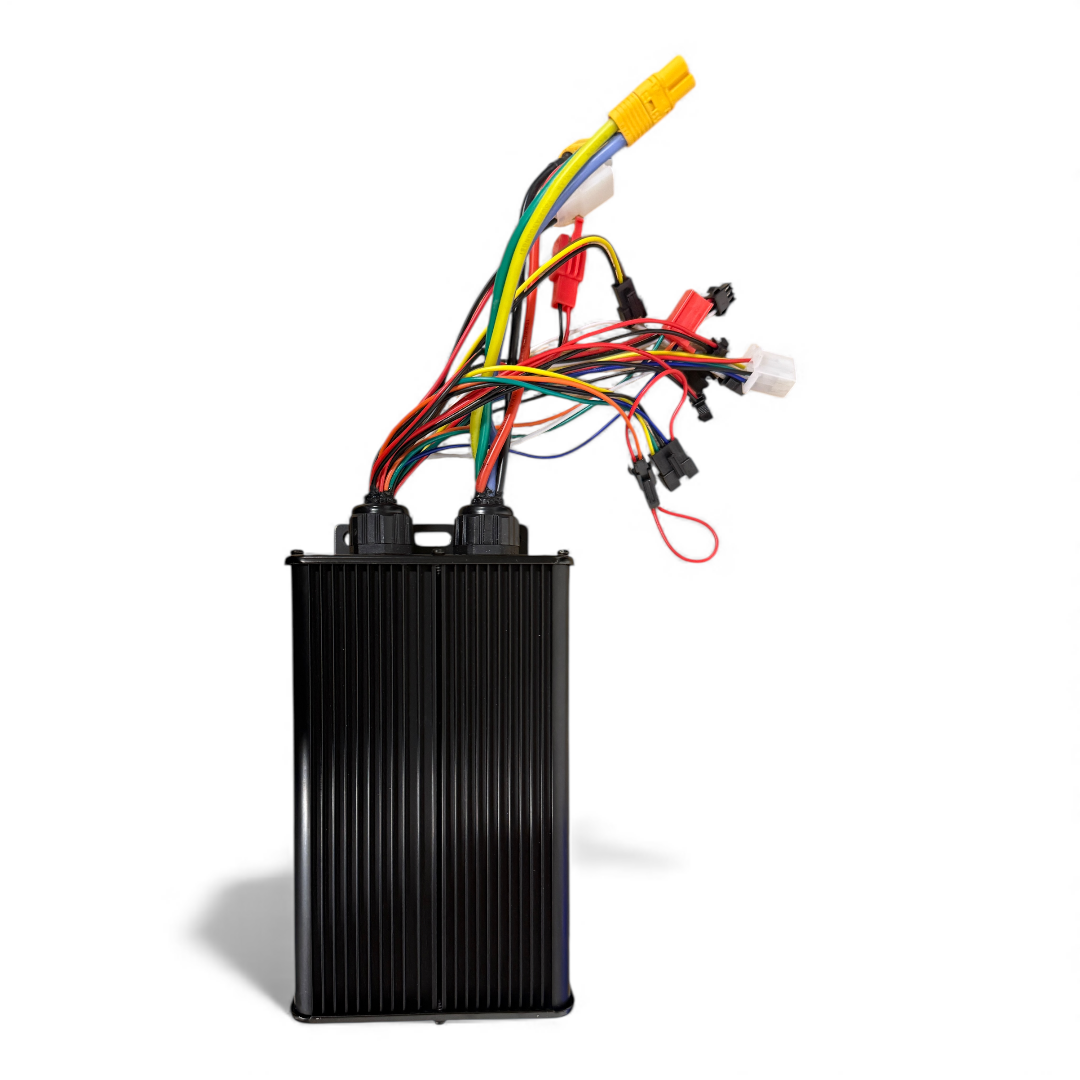

This high-performance, 48V to 72V universal controller is designed to deliver a smooth and efficient ride with a 45A current limit. Utilizing sine-wave technology, it ensures quieter operation, greater efficiency, and a comfortable feel compared to traditional square-wave controllers.

Key Features and Specifications

• Voltage: 48V to 72V DC (Universal)

• Current Limit: 45A

• Technology: Sine-Wave (for quiet and smooth motor operation)

• Power Input: XT60 Power Connector (Common, reliable, high-current connector)

• Motor Phase: MT60 3-phase connectors (Secure connection for motor power)

Connector Layout

The controller is fully equipped with dedicated ports for all essential e-bike components:

• Display: 5-Pin Display Connector (For connecting an LCD or LED display unit)

• Throttle: 3-Pin Throttle Connector (Standard connection for speed control)

• Motor Hall Sensors: 5-Pin Hall Sensor Connector (For precise motor commutation and efficiency)

• Pedal Assist (PAS): 12 Magnet Pedal Assist Sensor Connector (For smooth and responsive pedaling assistance)

• Braking: Brake Sensors Connectors (Input for mechanical or hydraulic brake levers with cut-off sensors)

• Security: Alarm Connector available on controller (For connecting an external alarm system)

• Lighting: Light Connector (Dedicated output for powering an e-bike headlight or taillight)
