Available in 2 Options:

-48V 25AH 1200WH 2160W

-52V 25AH 1300WH 2340W

(Volts = Speed / AH = Range / WH = Battery Capacity / W = Power)

Basic information:

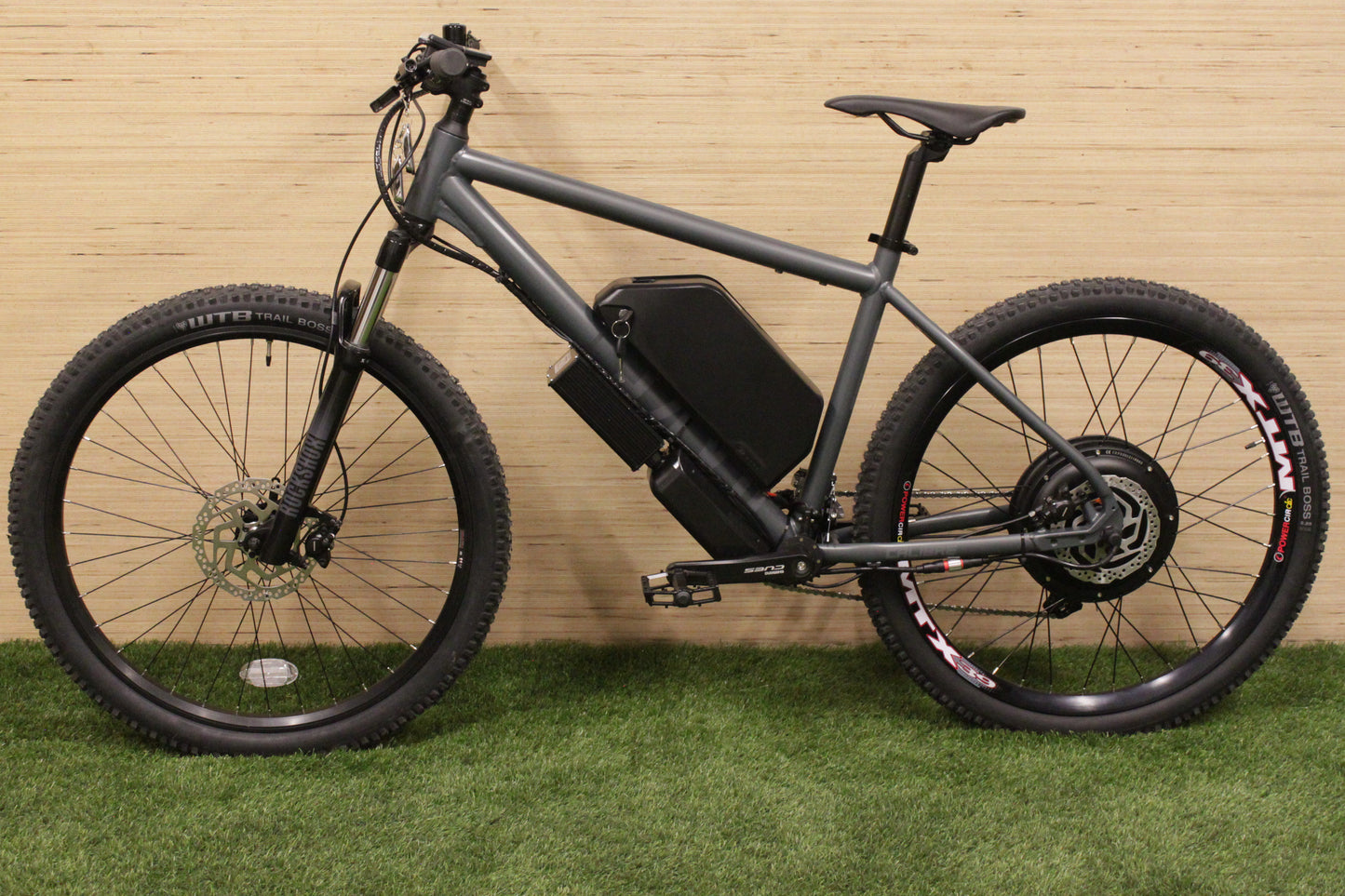

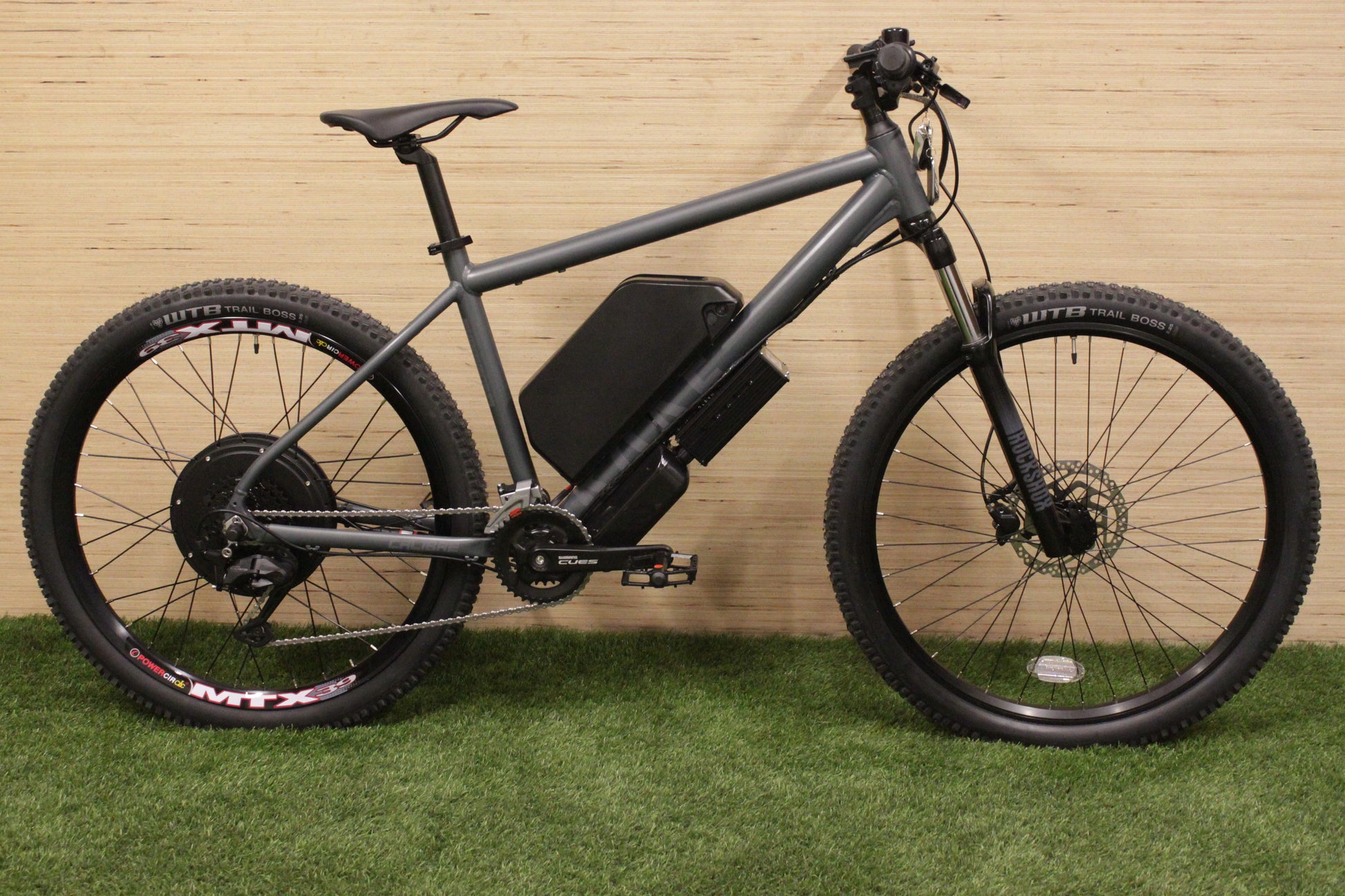

Make: Caliber

Model: Rake

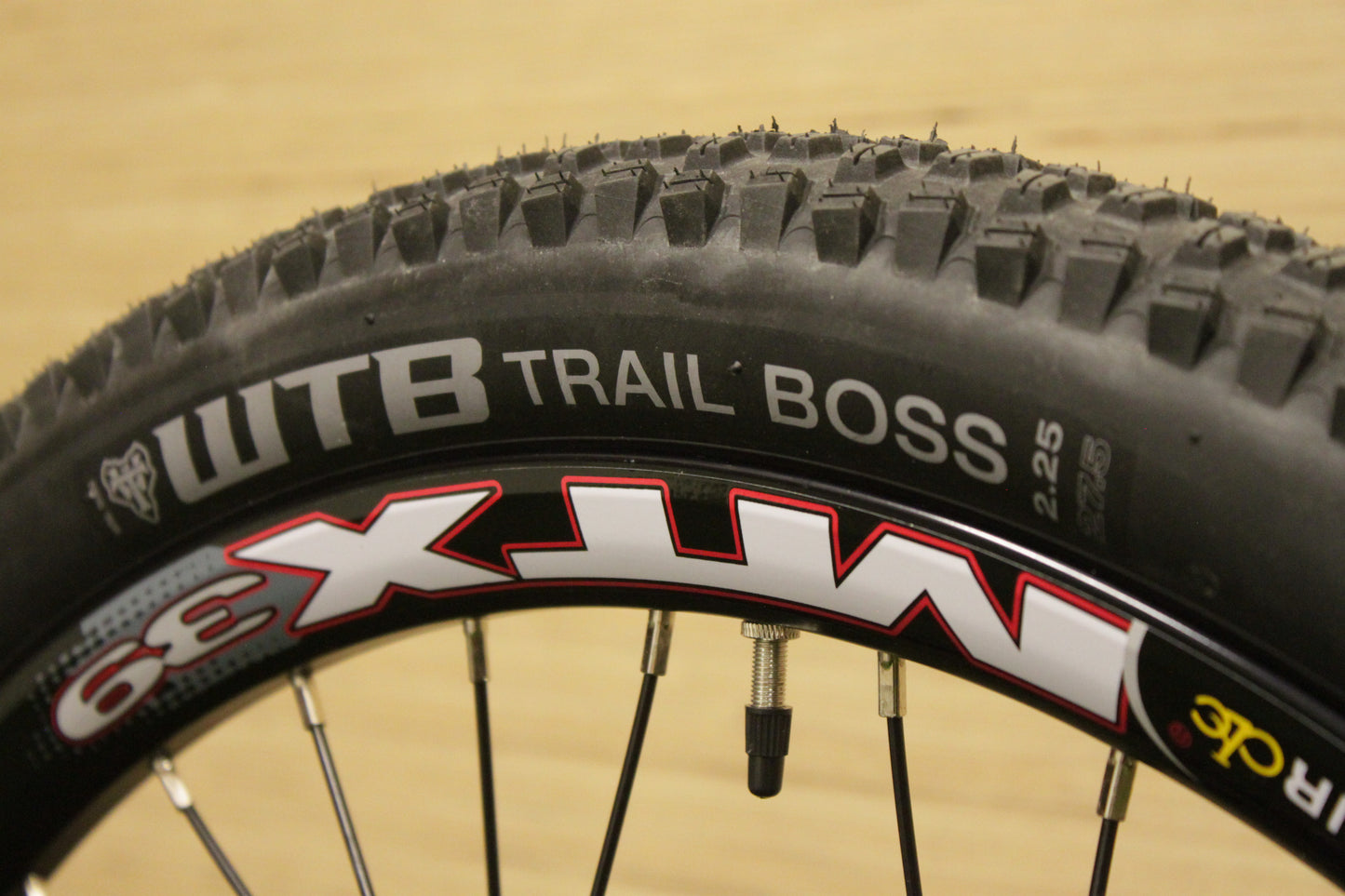

Wheel Size: 27.5" 2X2.25"

Colour: Grey

Features:

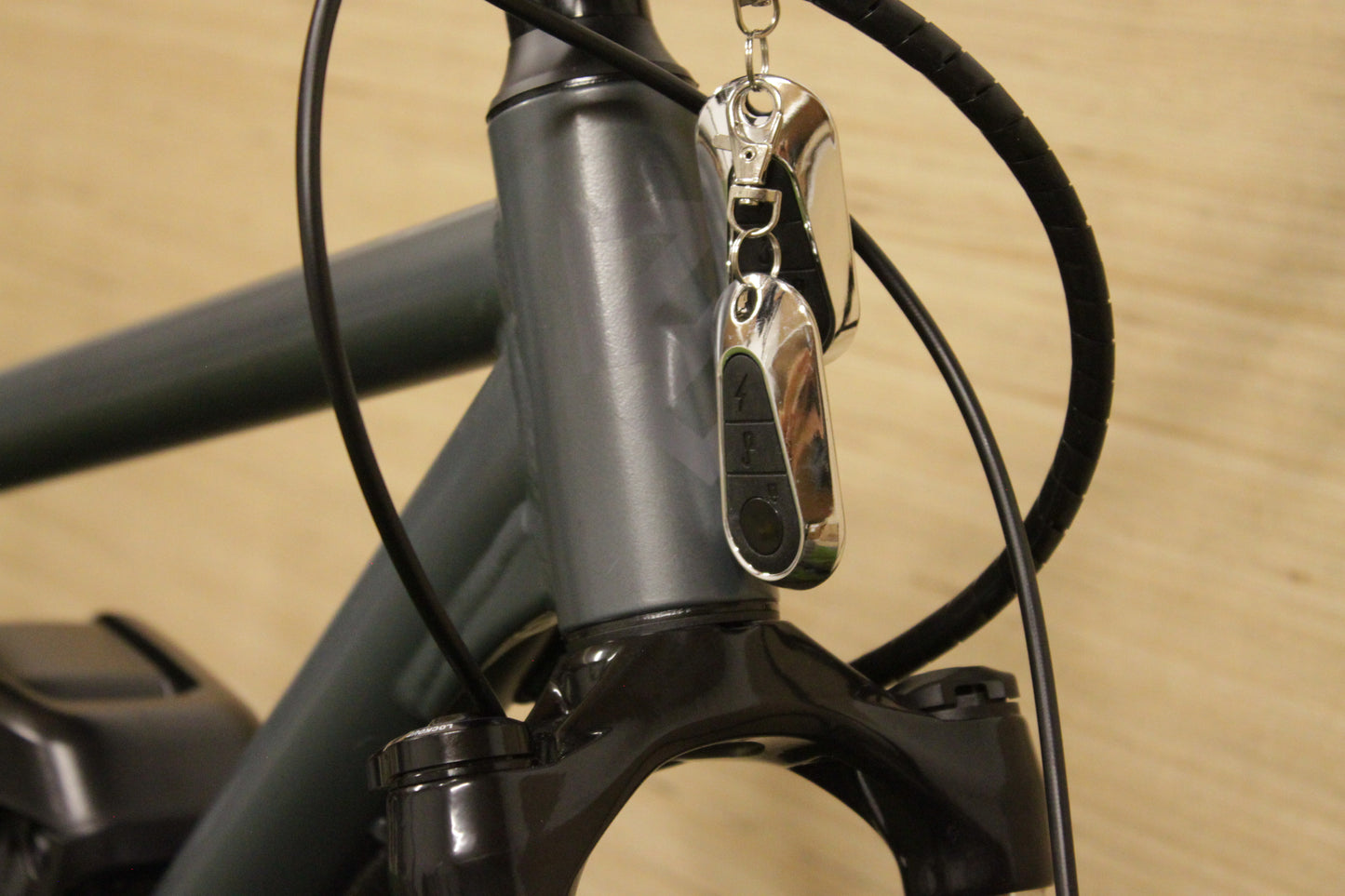

- Alarm System With Automatic Wheel Locking Technology

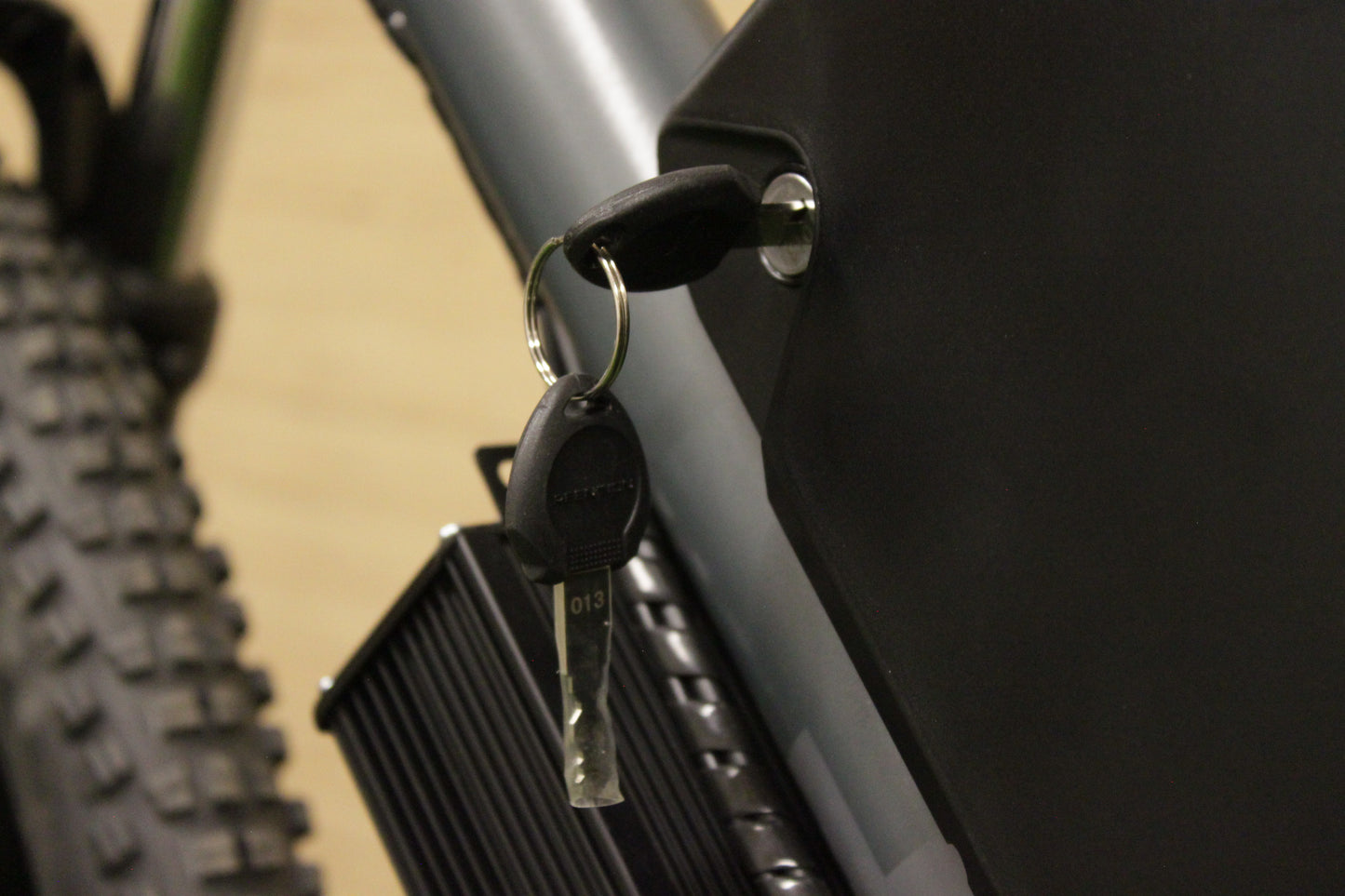

- Detachable and Lockable Battery

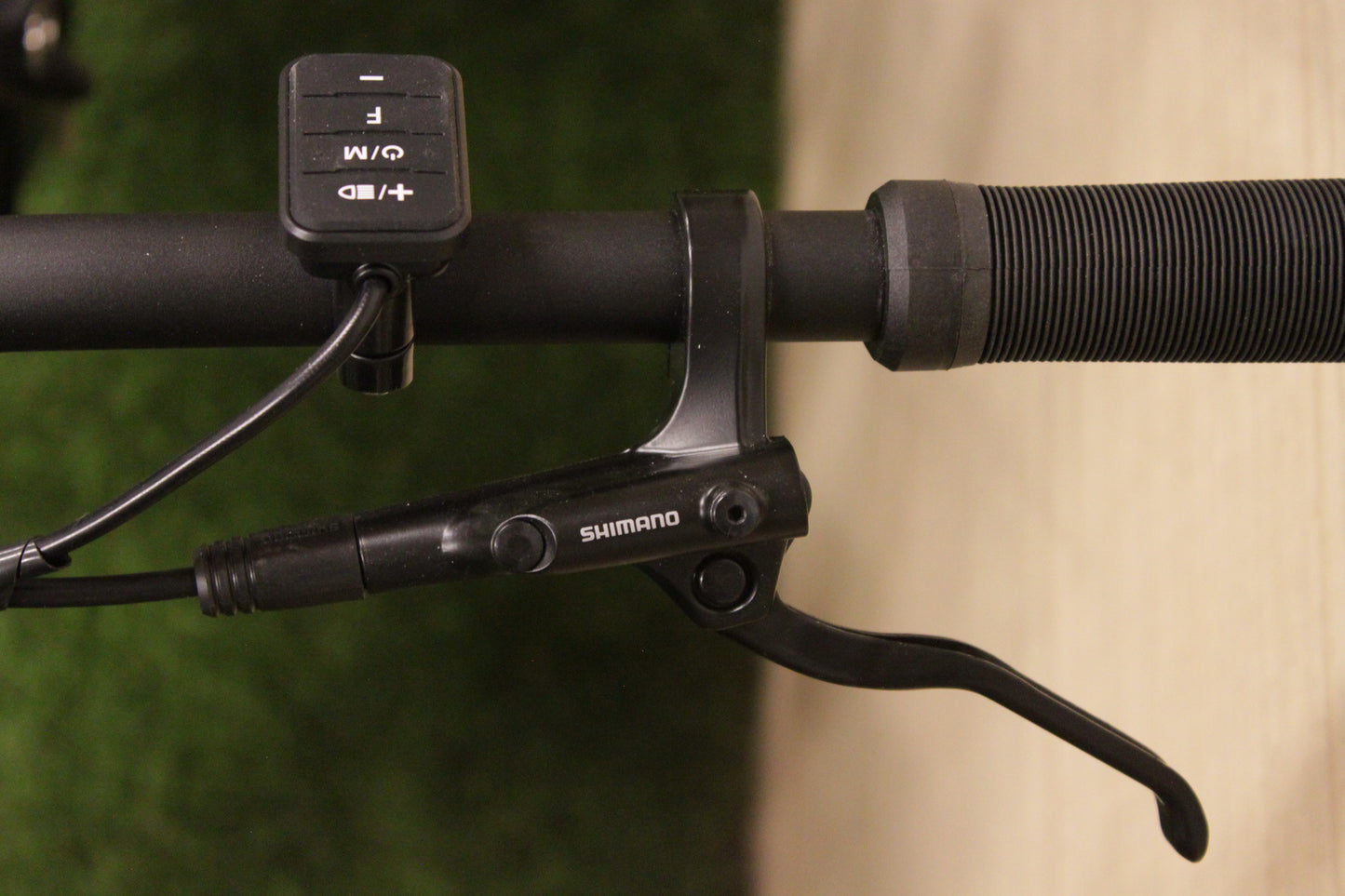

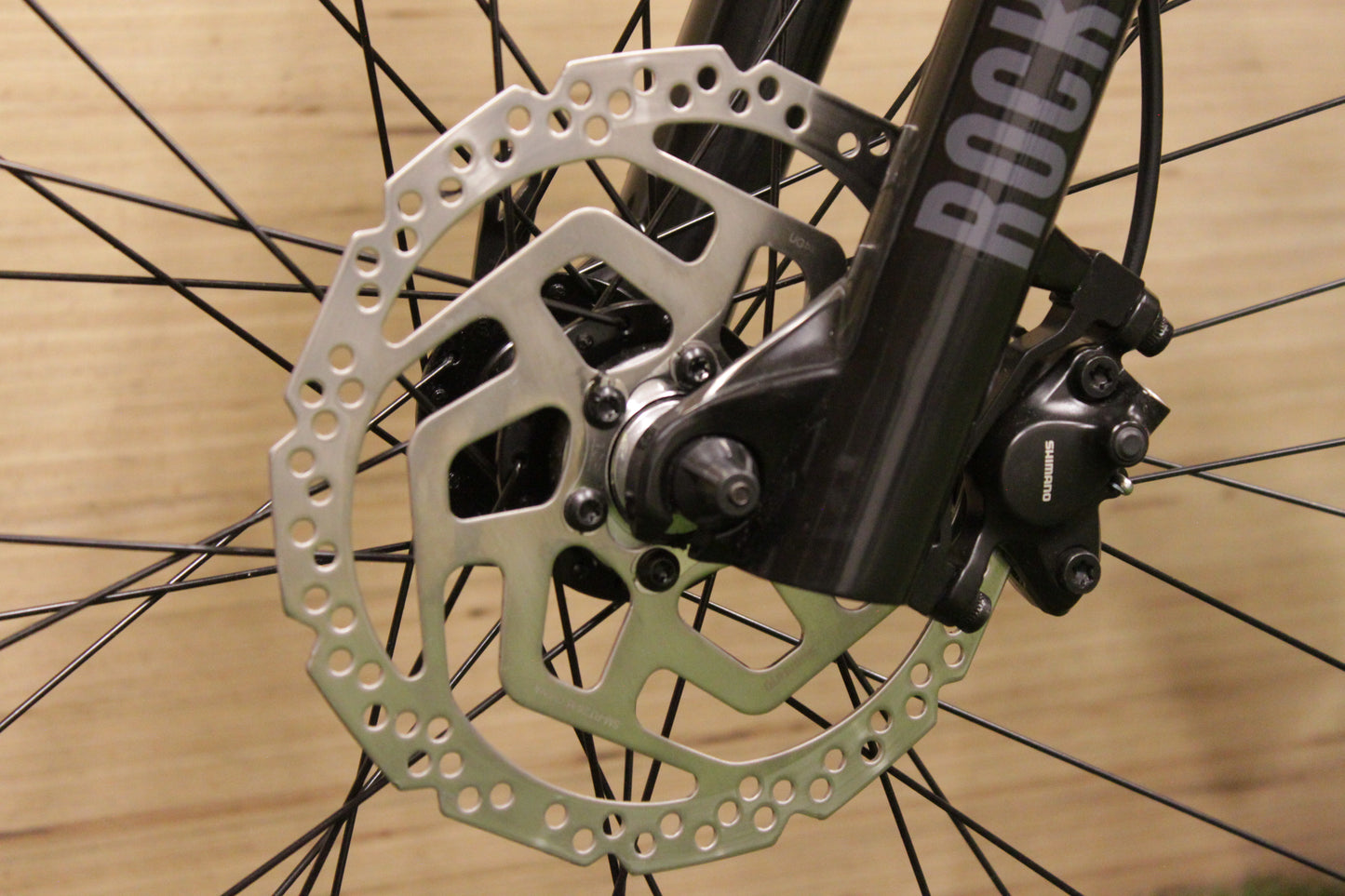

- Powerful Self Adjusting Hydraulic Brakes

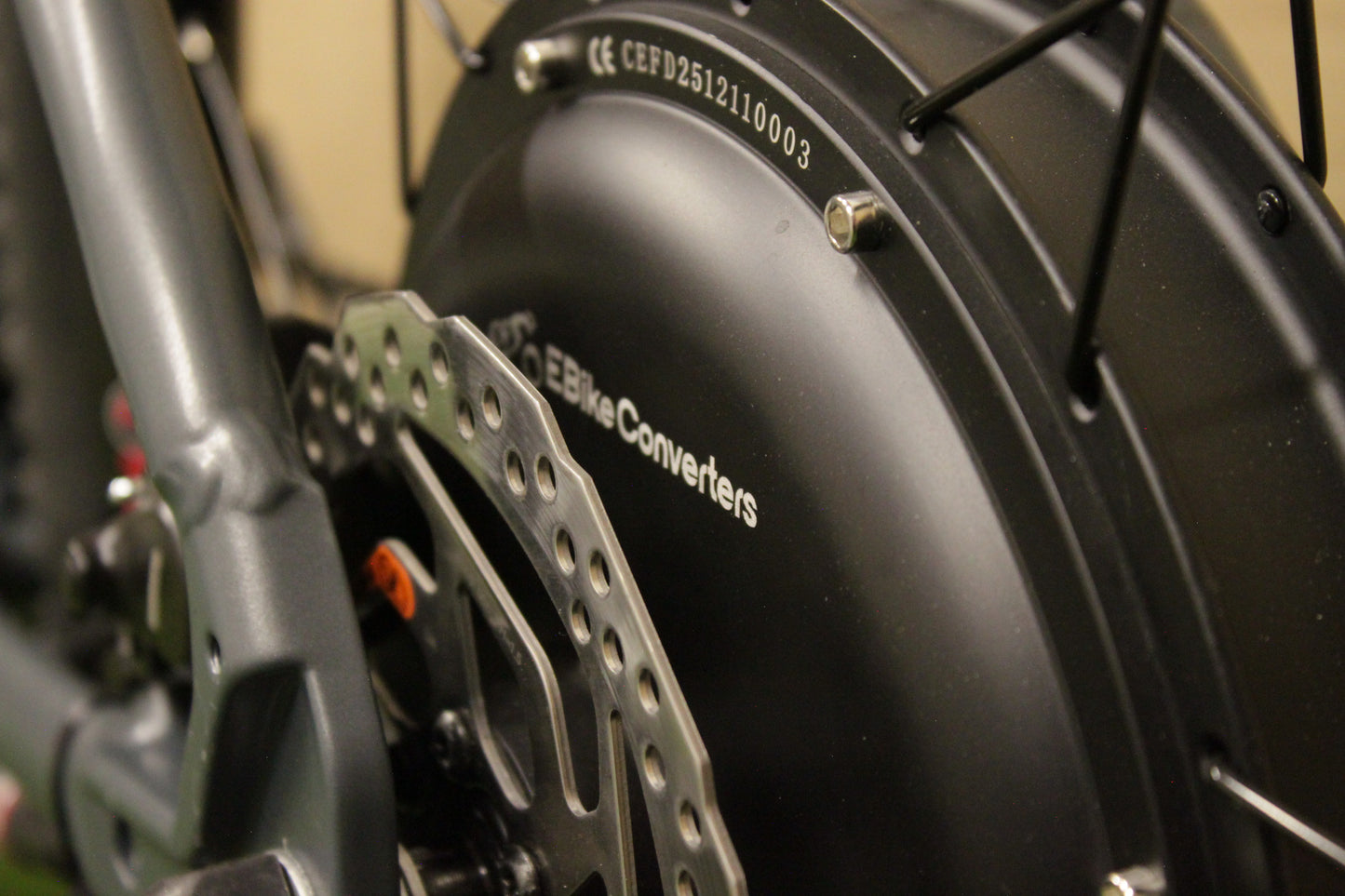

- Powerful Direct Drive Rear Hub Motor

- 100% Silent and smooth ride

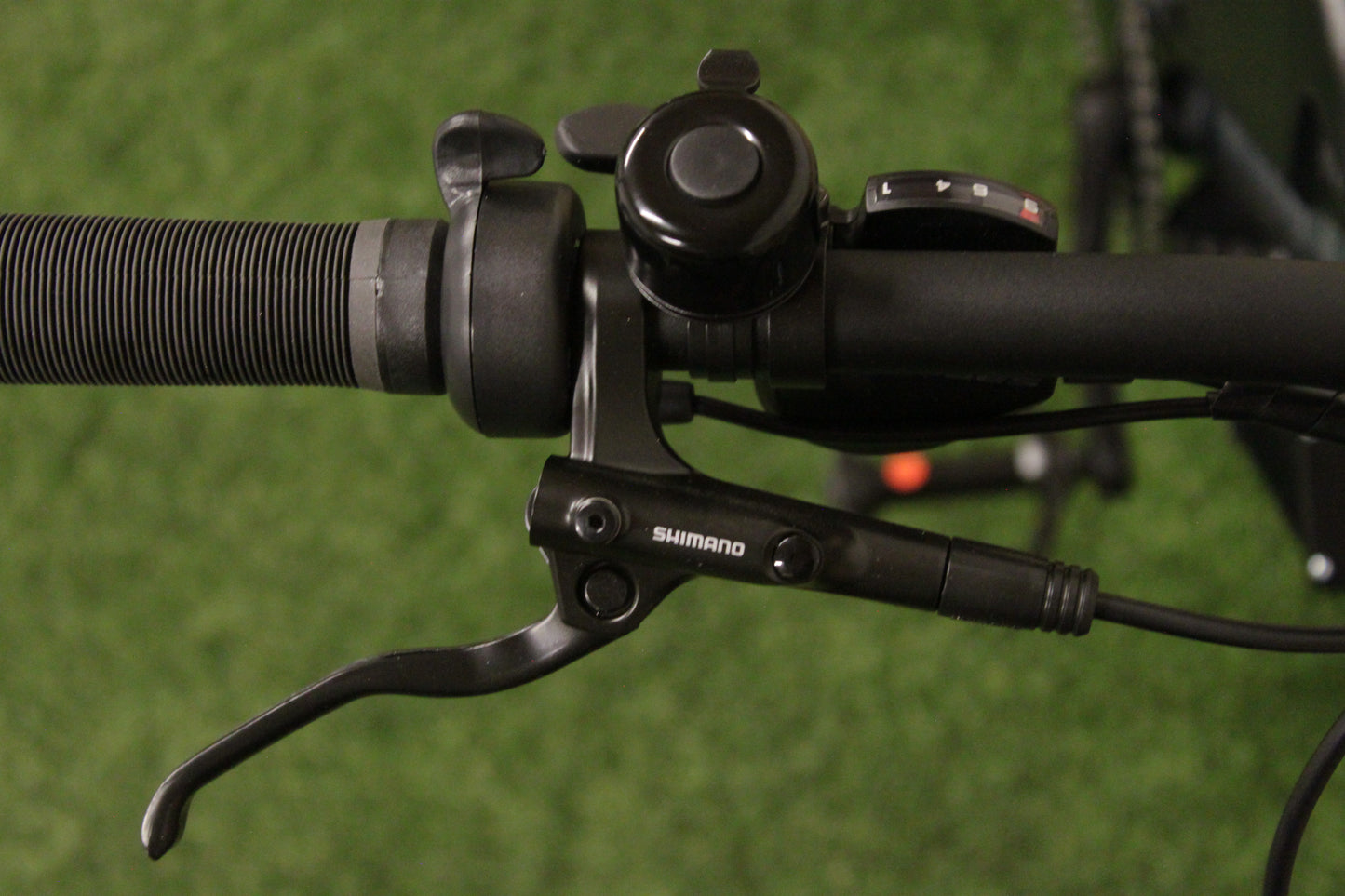

- Thumb Throttle and up to 9 Pedal Assist Modes

- Disconnect-able Motor Wheel

Electrical Specification:

Power:  48V-2160W / 52V 2340W

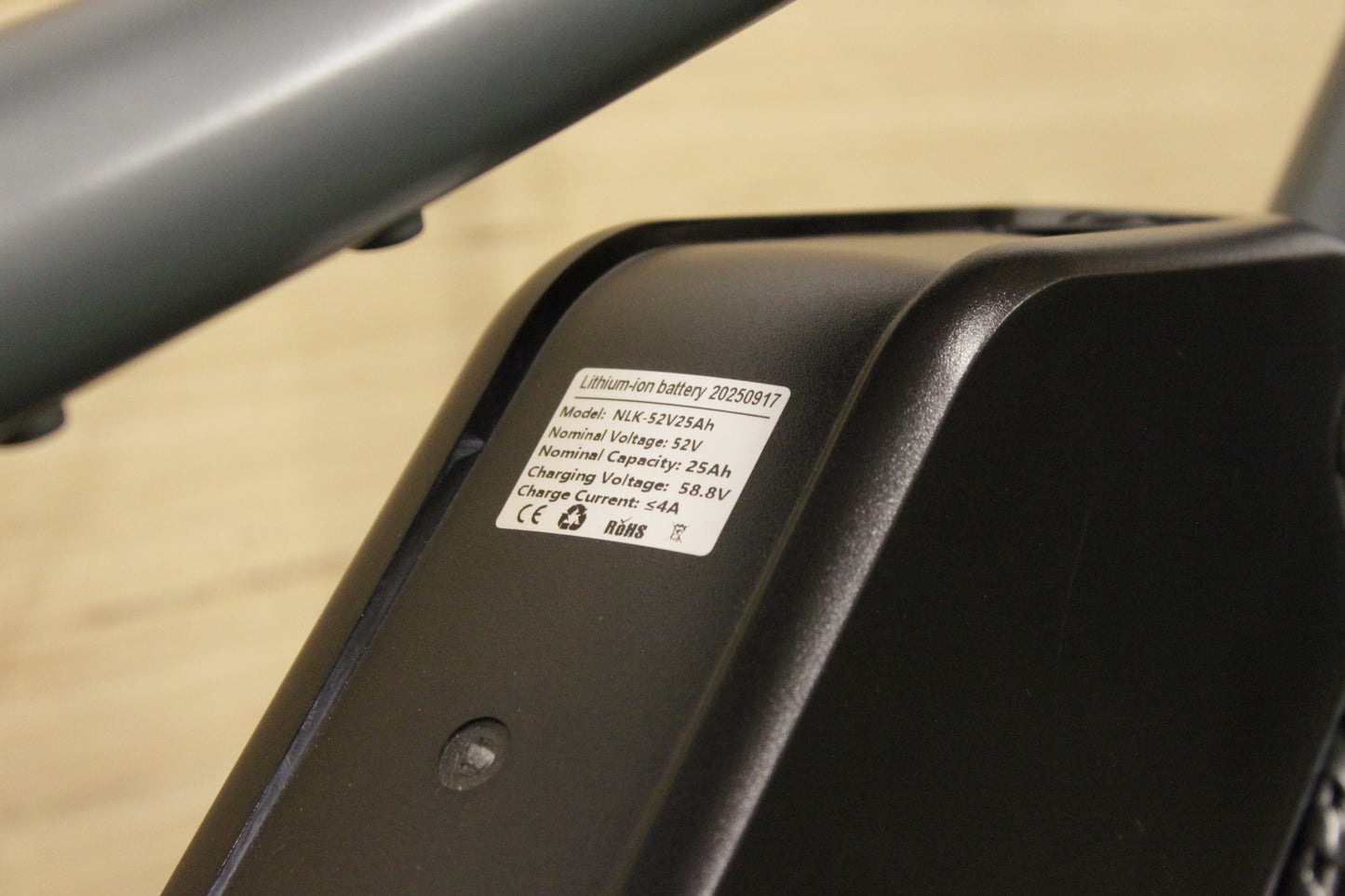

Battery Voltage: 48V / 52V

Battery Type: Polly (5 Pin)

Range: 48V - 35 Miles / 52V 40 Miles (in ideal riding conditions)

Ride modes: Thumb Throttle and/or 9 Pedal Assist Modes

Charge time: 5-6 hours

Top speed: 48V-38MPH/52V-42MPH (in ideal riding conditions)

Controller: Sine Wave 45A

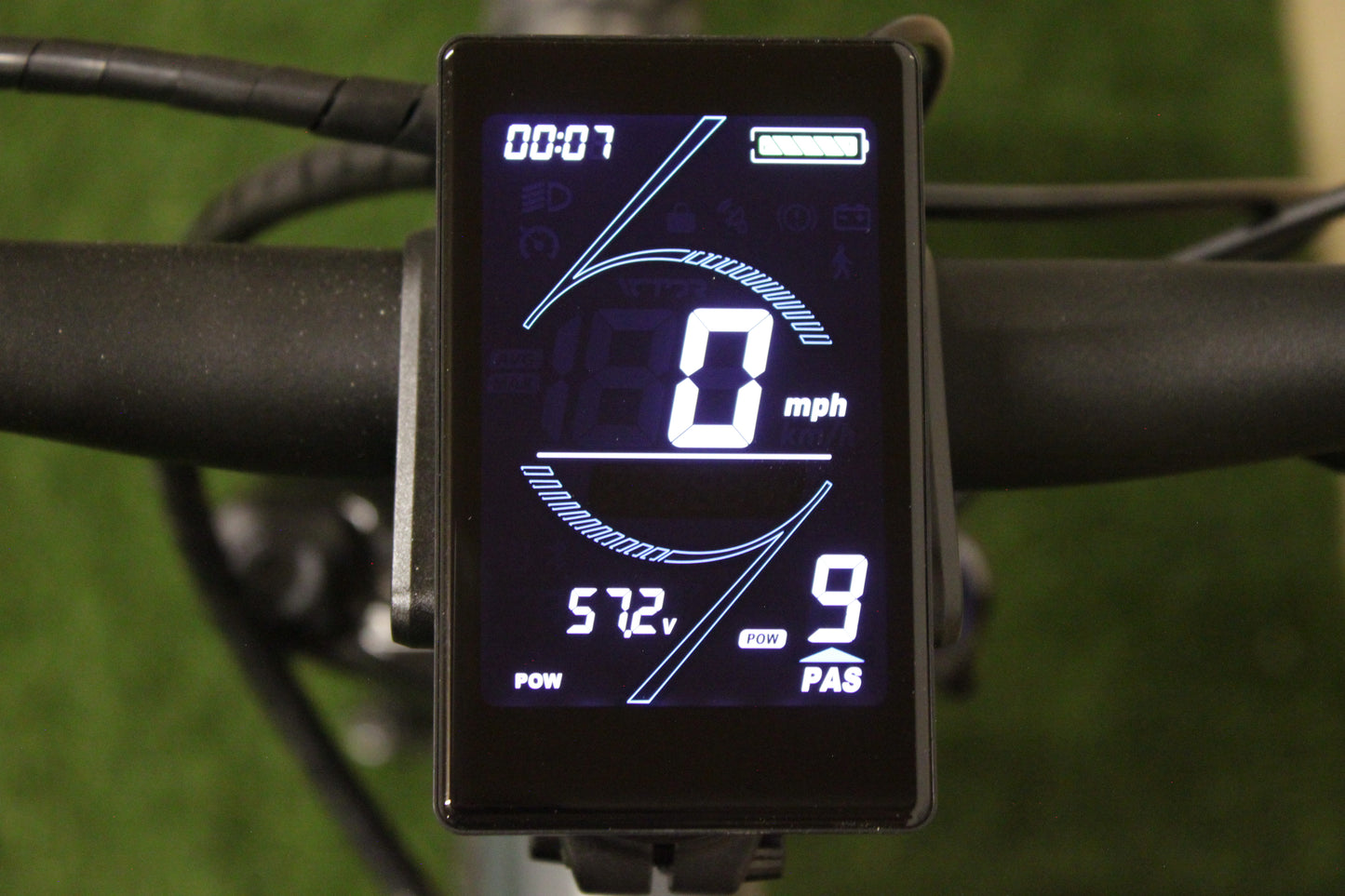

Display model: T5S (colour screen)

Display Features: Current/Average/Top speed, Voltage, Battery Percentage

Included: 2X Battery Keys and 2X Alarm keys

Charger: 3A charger DC5521 (UK Plug)

Mechanical Specification:

Frame: Alu 6061 29”, 135 QR, Post-mount disc, 44mm headtube

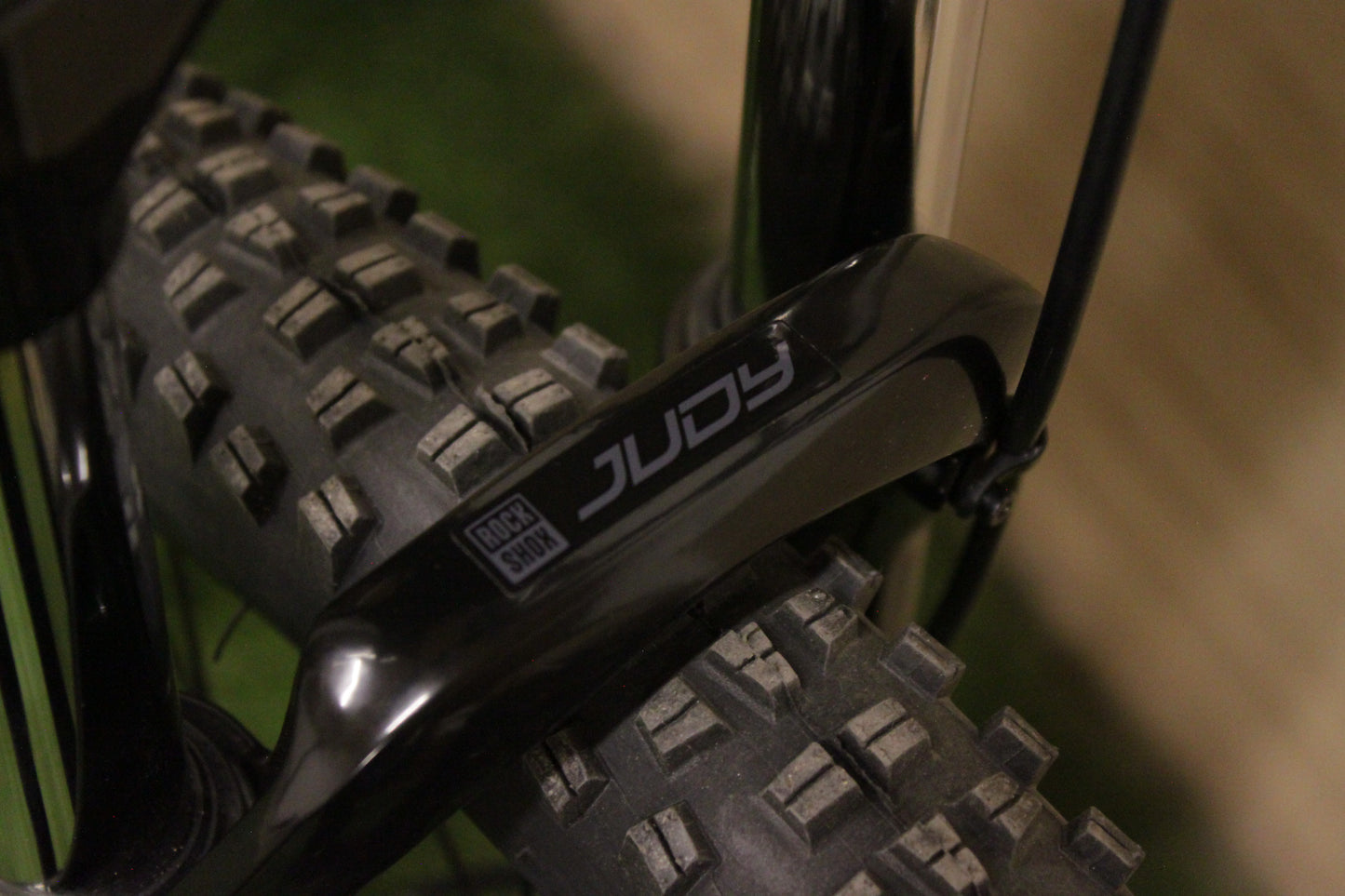

Fork: RockShox FS-Judy TK 27.5” QR, Rebound adjust, 100mm travel

Handlebar: Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp

Stem: Calibre Trail, 31.8mm clamp, 45mm extension

Grips: Calibre Trail, Single lock-on, soft compound, integrated bar end

Headset: Semi-integrated, ZS44

Saddle: Calibre Trail, steel rails

Seatpost: Calibre Trail 30.9 x 350mm

Seatclamp: Calibre QR 34.9MM

Chainset: Shimano Cues 36T

Pedals: Flat Alloy pedals

Bottom Bracket: Square taper 73mm BB

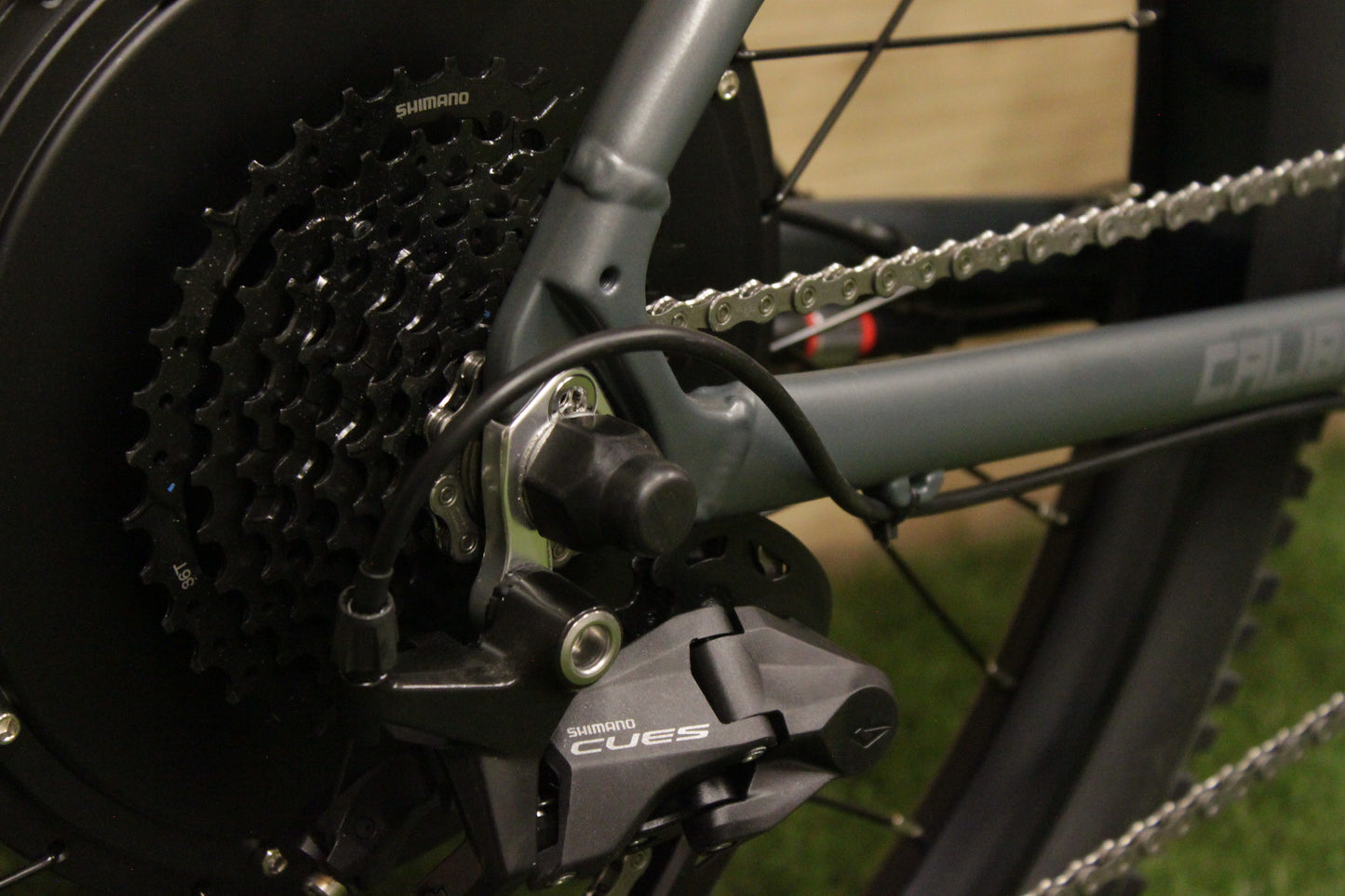

Drivetrain: Shimano 9 speed

Cassette: Shimano 9 speed Acera 11-36T

Chain: KMC X9

Shifter Right: Shimano Alivio 9 speed for 1x9


Rear Derailleur: Shimano Alivio 9 speed

Packaging:

This ebike arrives well packaged with minimal assembly time out the box (tools included). Attach the front quick release wheel, saddle, handlebar and pedals and it's ready to ride.
