-36V 28AH 1008WH 900W

(Volts = Speed / AH = Range / WH = Battery Capacity / W = Power)

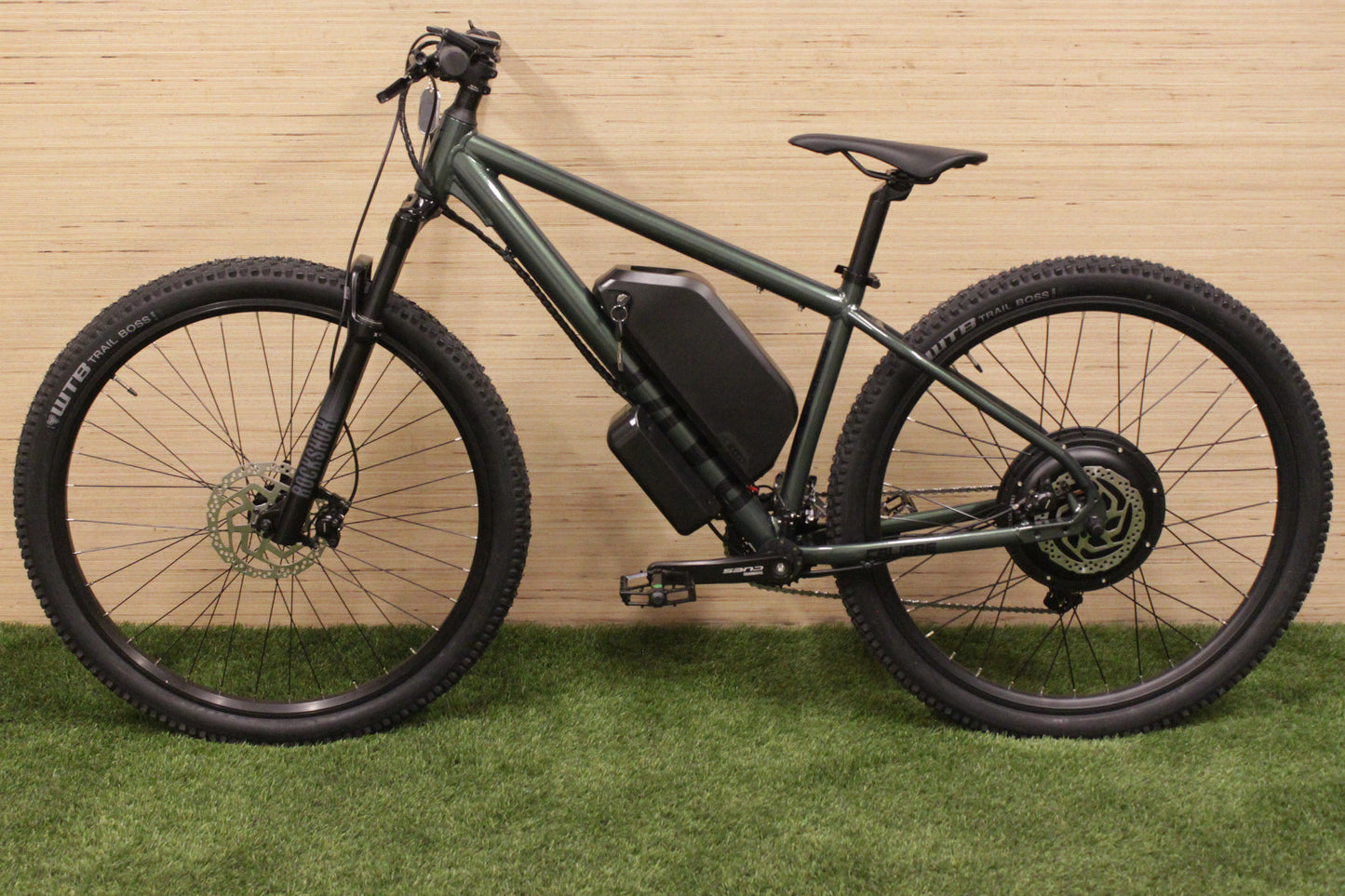

Basic information:

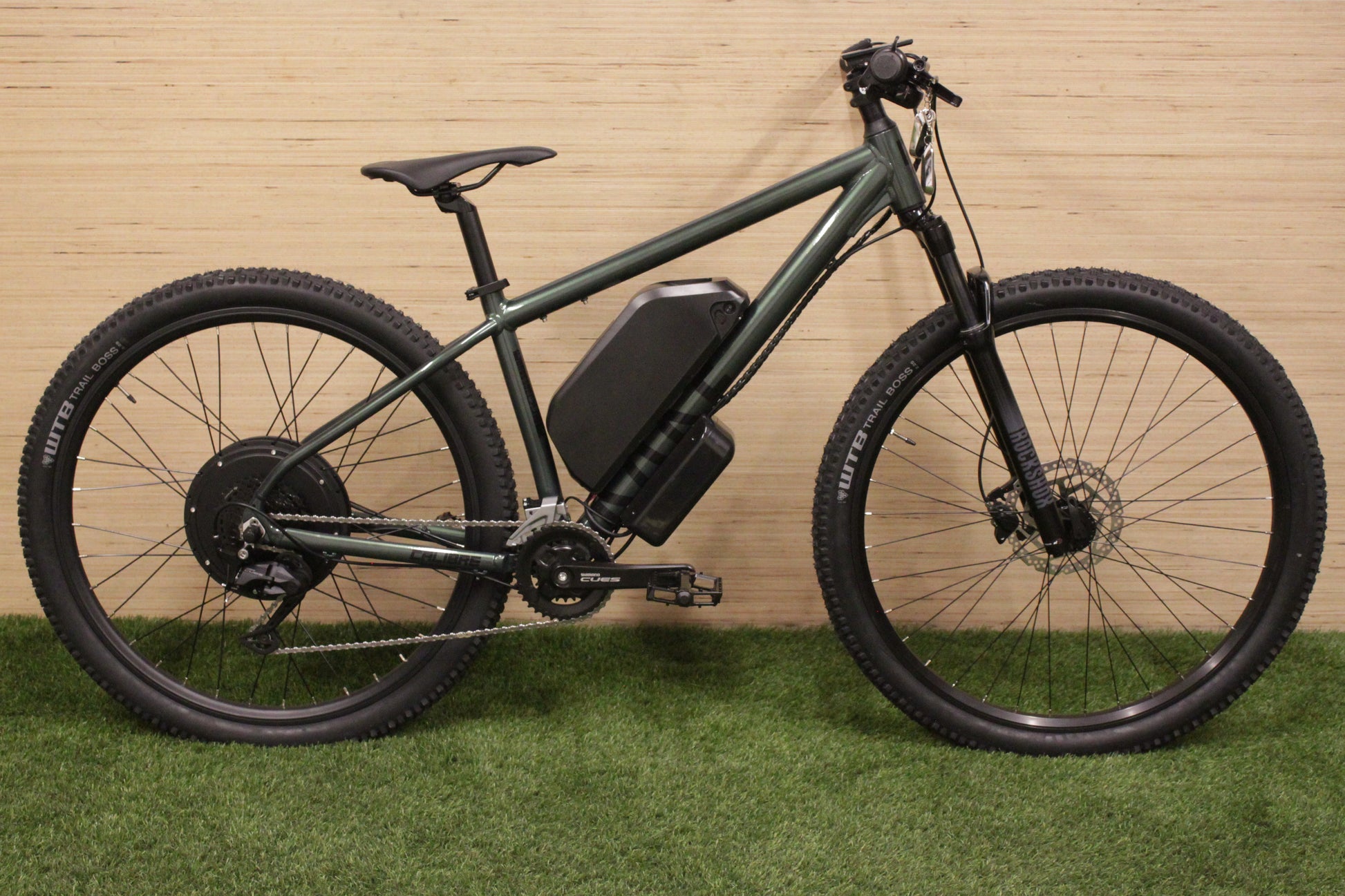

- Make: Caliber

- Model: Rake

- Shimano Hydraulic Disc Brakes

- Wheel Size: 29"

- Colour: Dark Green

Features:

- Alarm System With Automatic Wheel Locking Technology

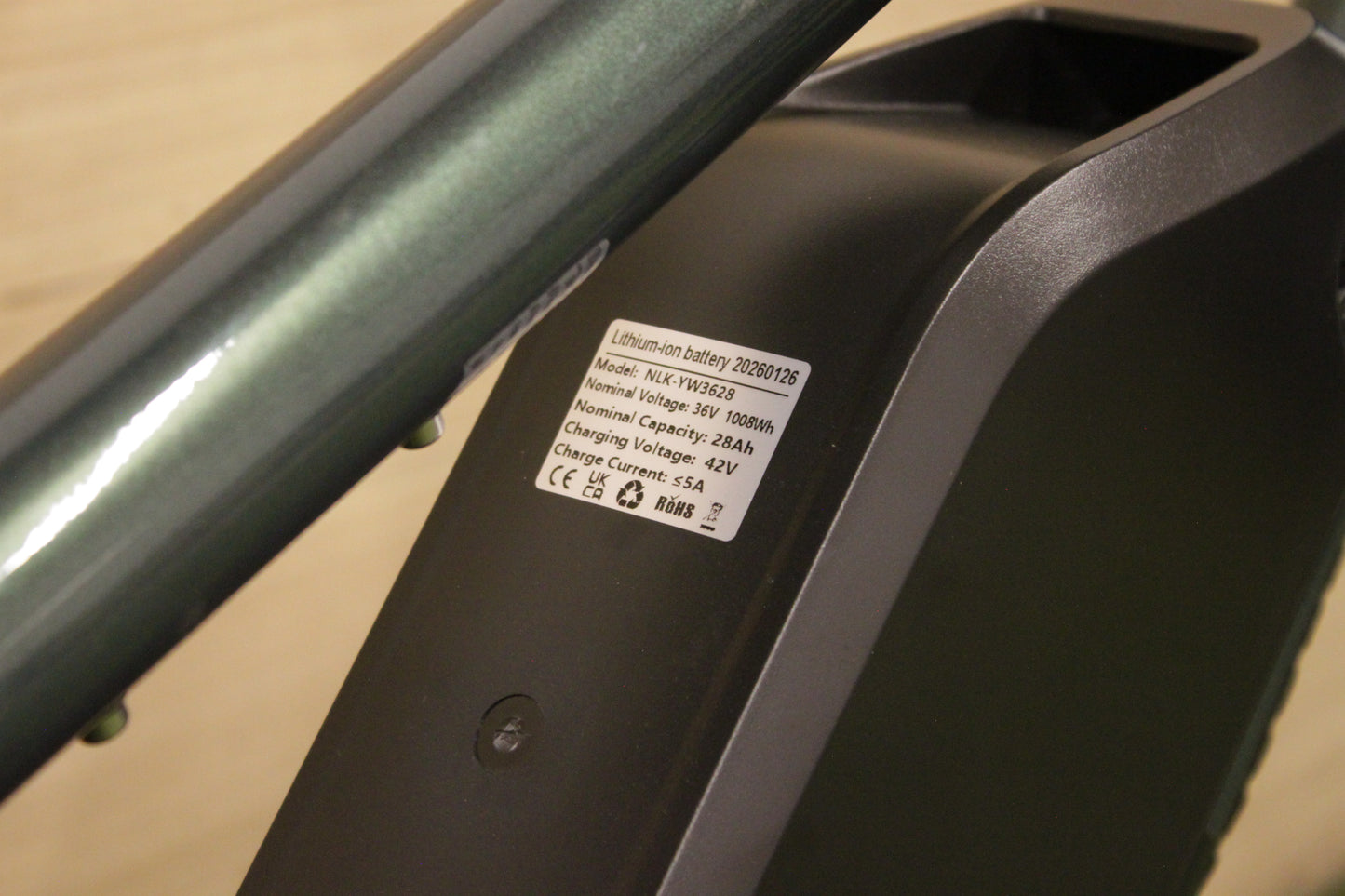

- Detachable and Lockable Battery

- Powerful Self Adjusting Hydraulic Brakes

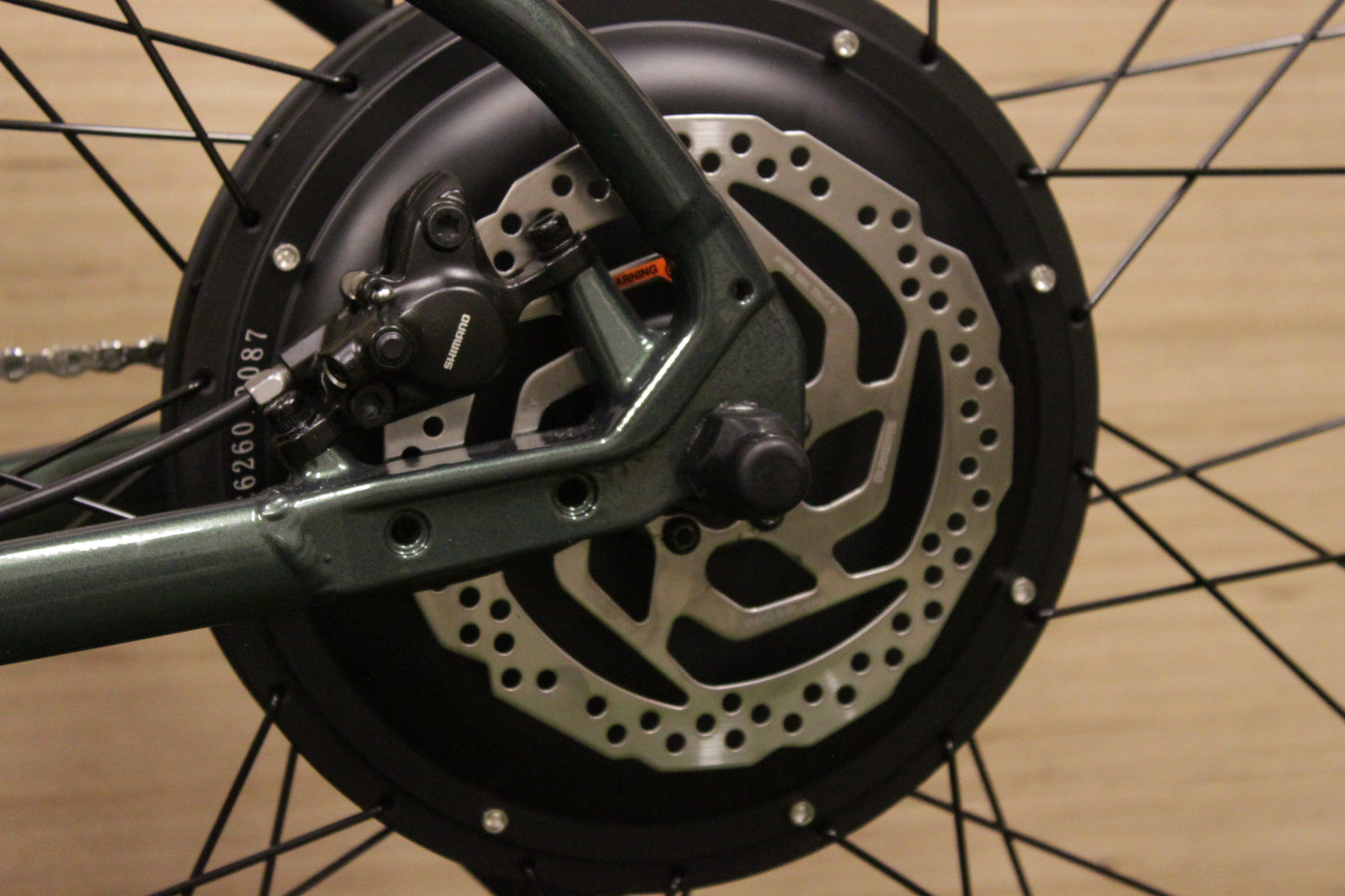

- Powerful Direct Drive Rear Hub Motor

- 100% Silent and smooth ride

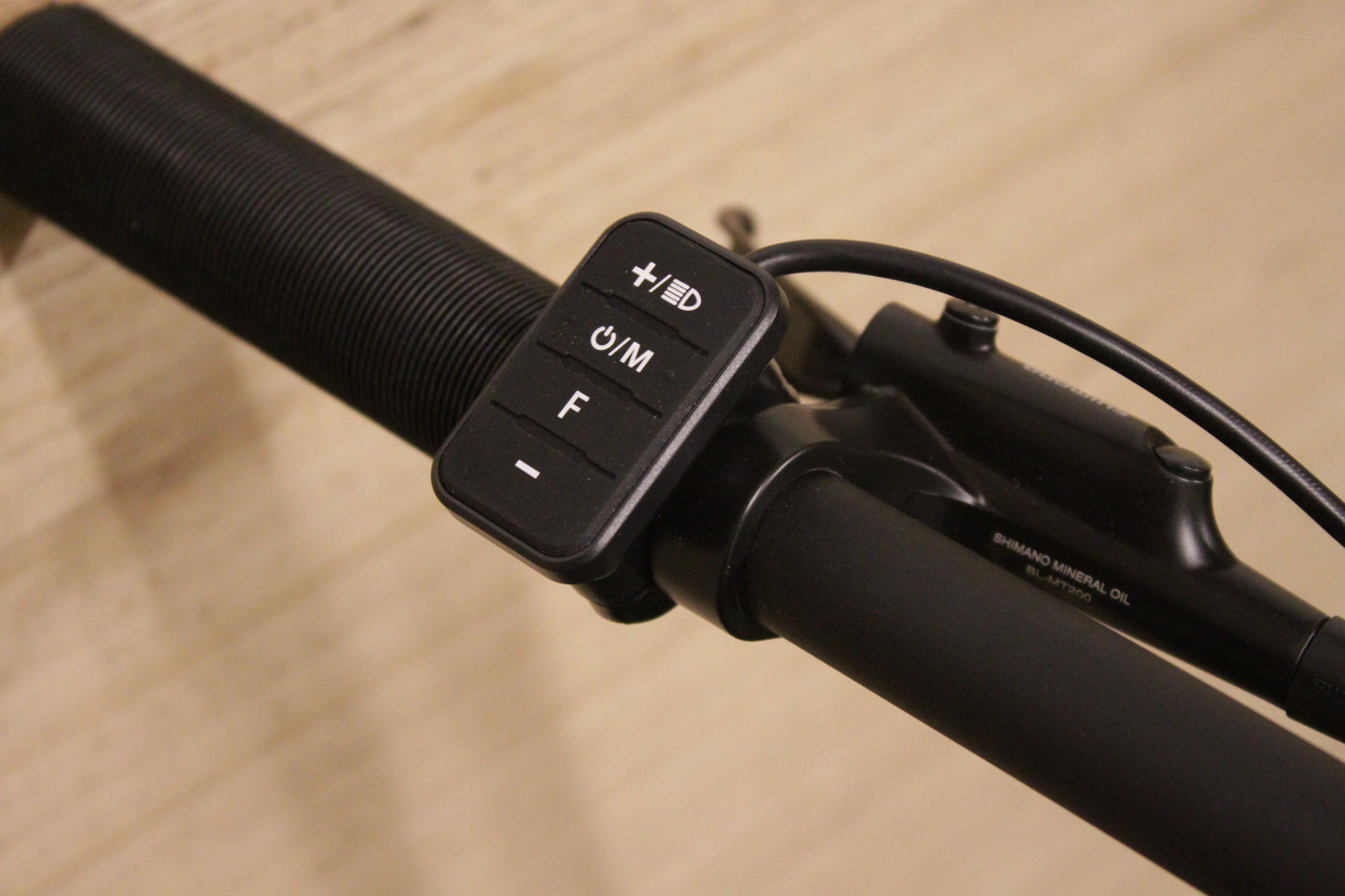

- Thumb Throttle and up to 9 Pedal Assist Modes

- Kickstand (optional)

Electrical Specification:

- Power: 900W

- Battery Voltage: 36V Nominal

- Battery Type: Polly (5 Pin)

- Range: Up to 50 Miles (in ideal riding conditions)

- Ride modes: Thumb Throttle and/or 9 Pedal Assist Modes

- 5A Fast Charger (Charging time 4-5 hours)

- Top speed: 30MPH (in ideal riding conditions)

- Controller: Sine Wave 25A

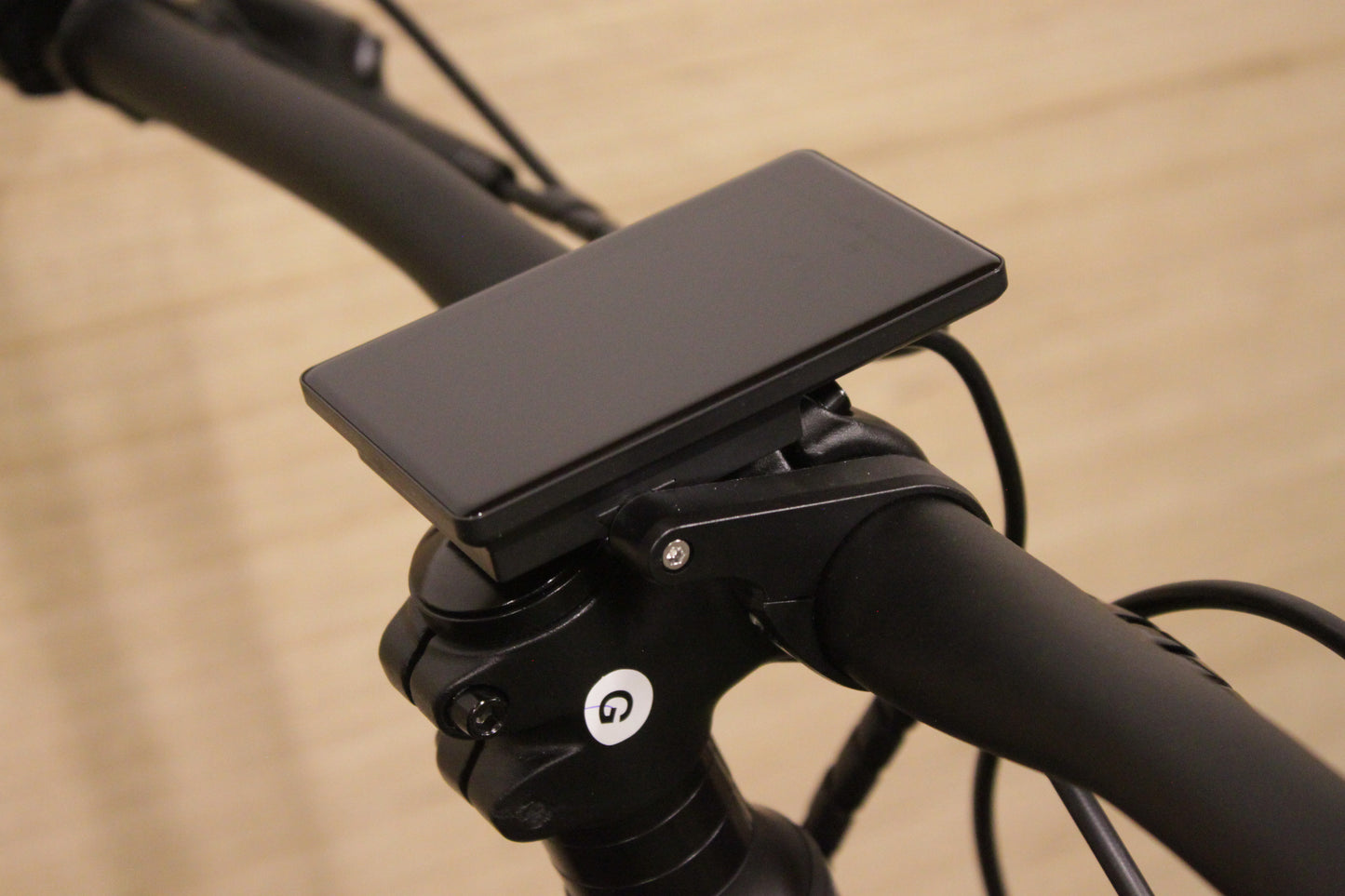

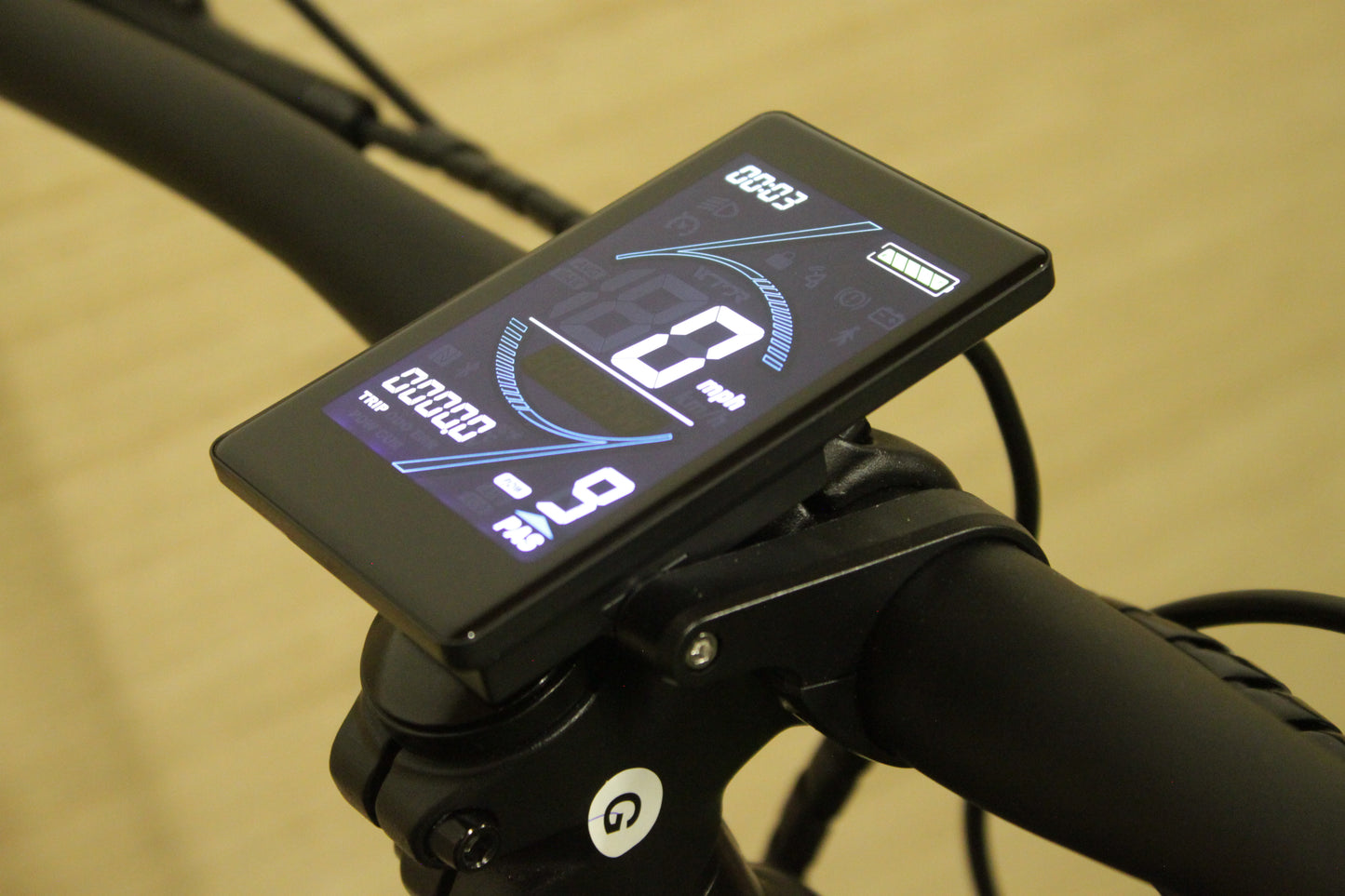

- Display model: T5S (colour screen)

- Display Features: Current/Average/Top speed, Voltage, Battery Percentage

- Charger: 5A charger Single Pin (UK Plug)

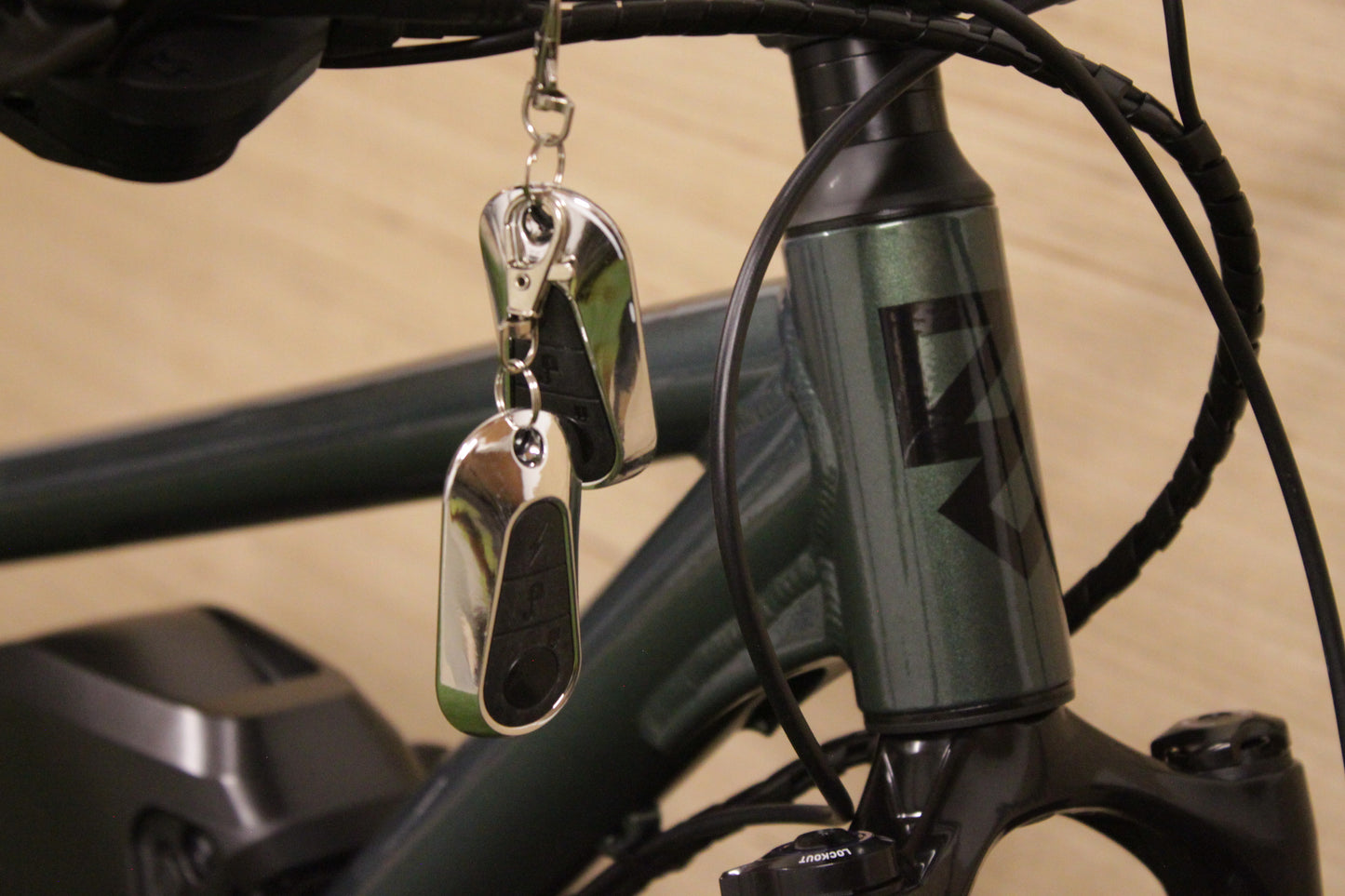

- Includes: 2X Battery Keys and 2X Alarm keys

Mechanical Specification:

- Calibre hardtail frame – A lightweight alloy frame with balanced geometry for efficient climbs and confident descents

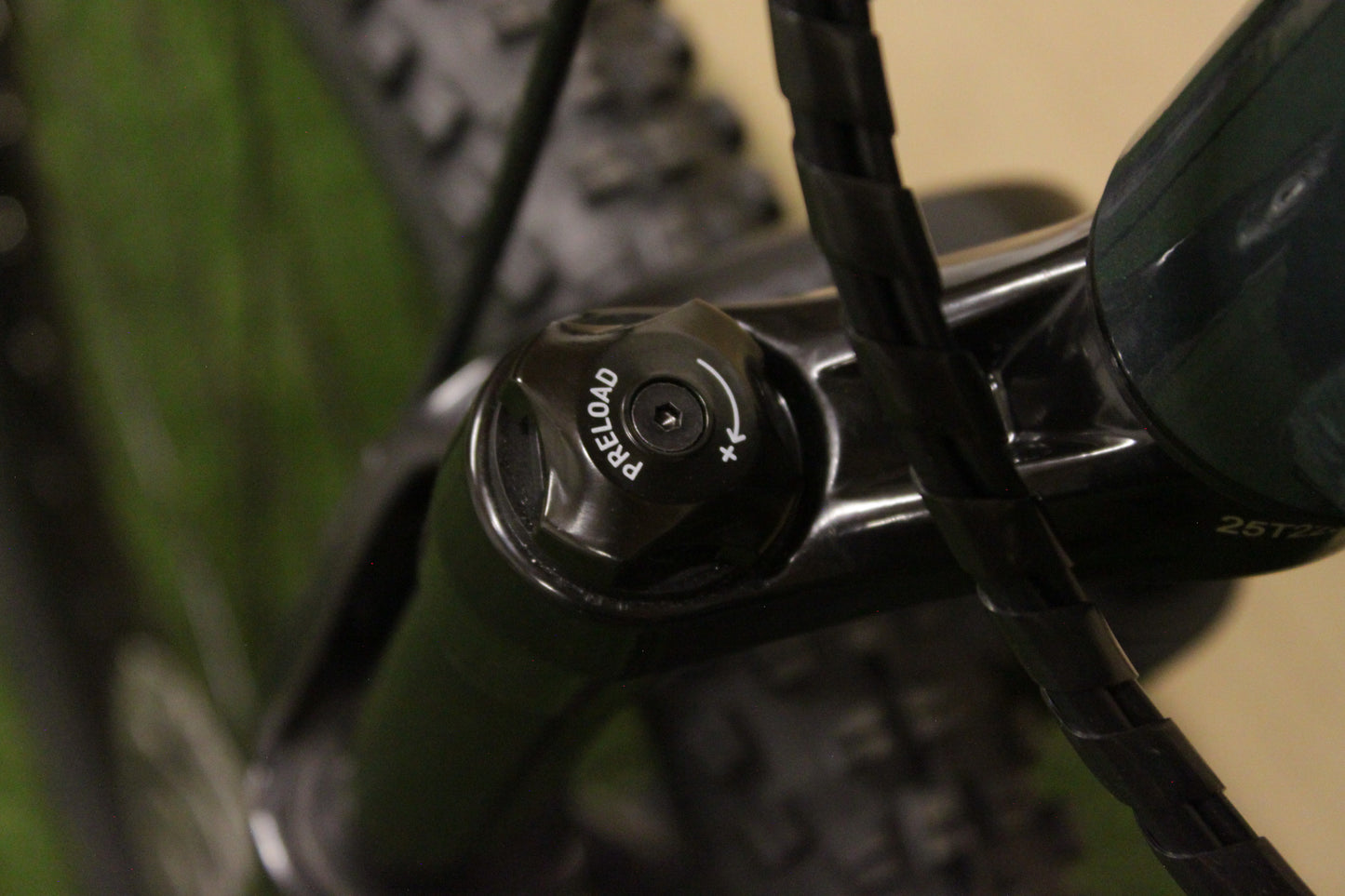

- 100mm RockShox Judy suspension fork - A capable coil-sprung trail fork with adjustable rebound damping

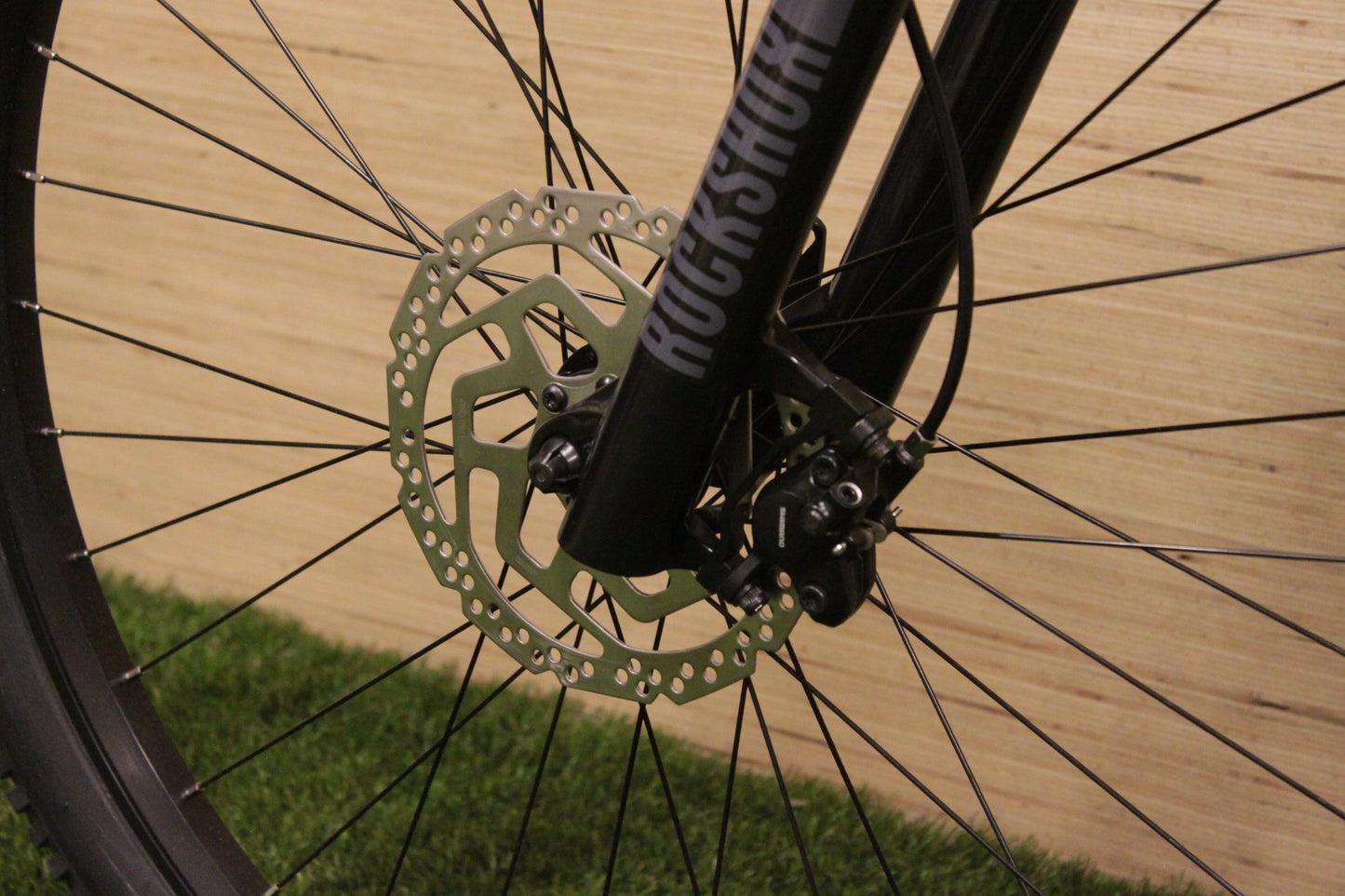

- Clarks M2 hydraulic disc brakes – Smooth and responsive brakes that represent awesome value

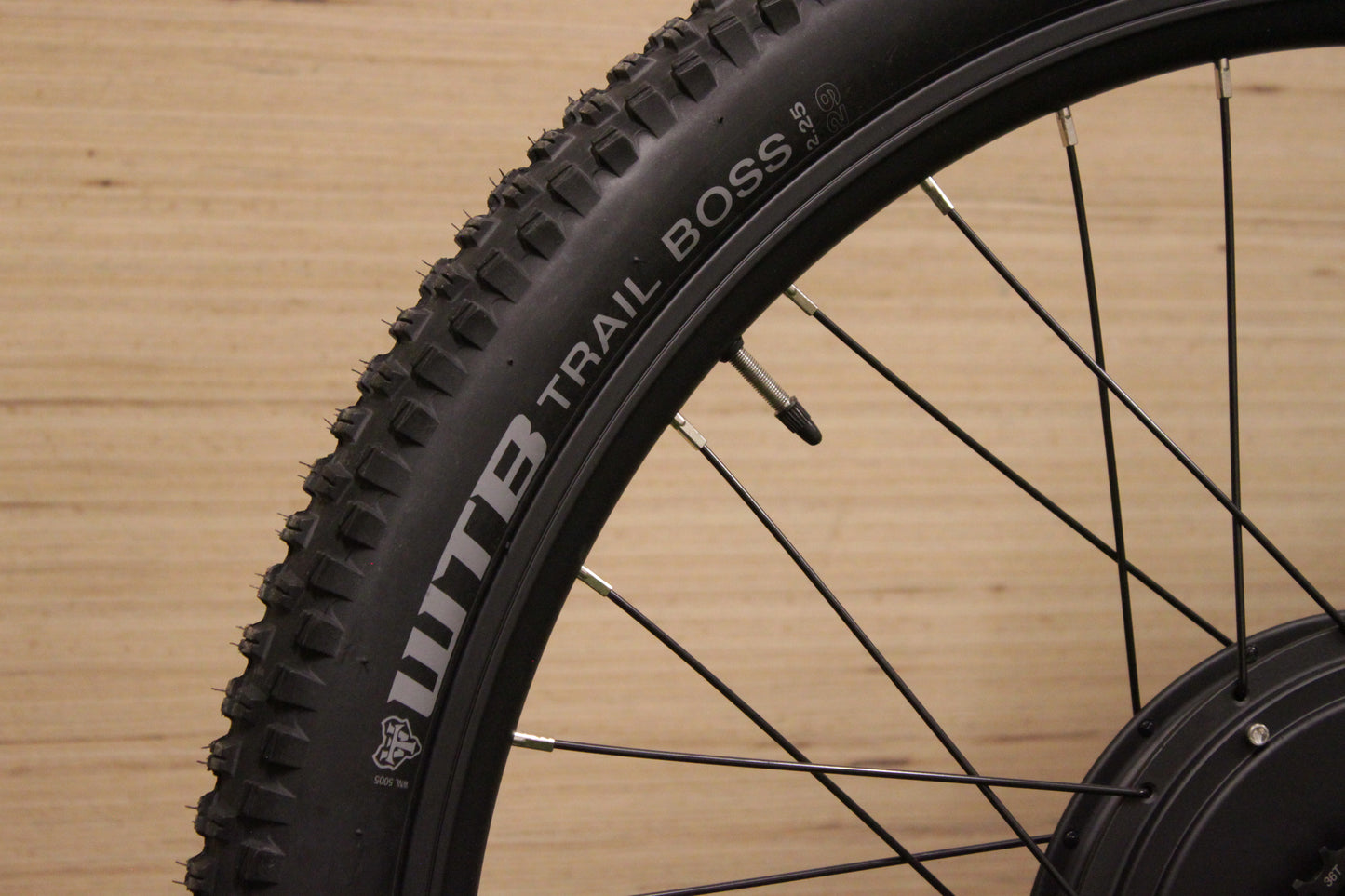

- WTB Trail Boss tyres– An all-round trail tyre that excels on loose and rocky surfaces

- Frame: Alu 6061 29”, 135 QR, Post-mount disc, 44mm headtube

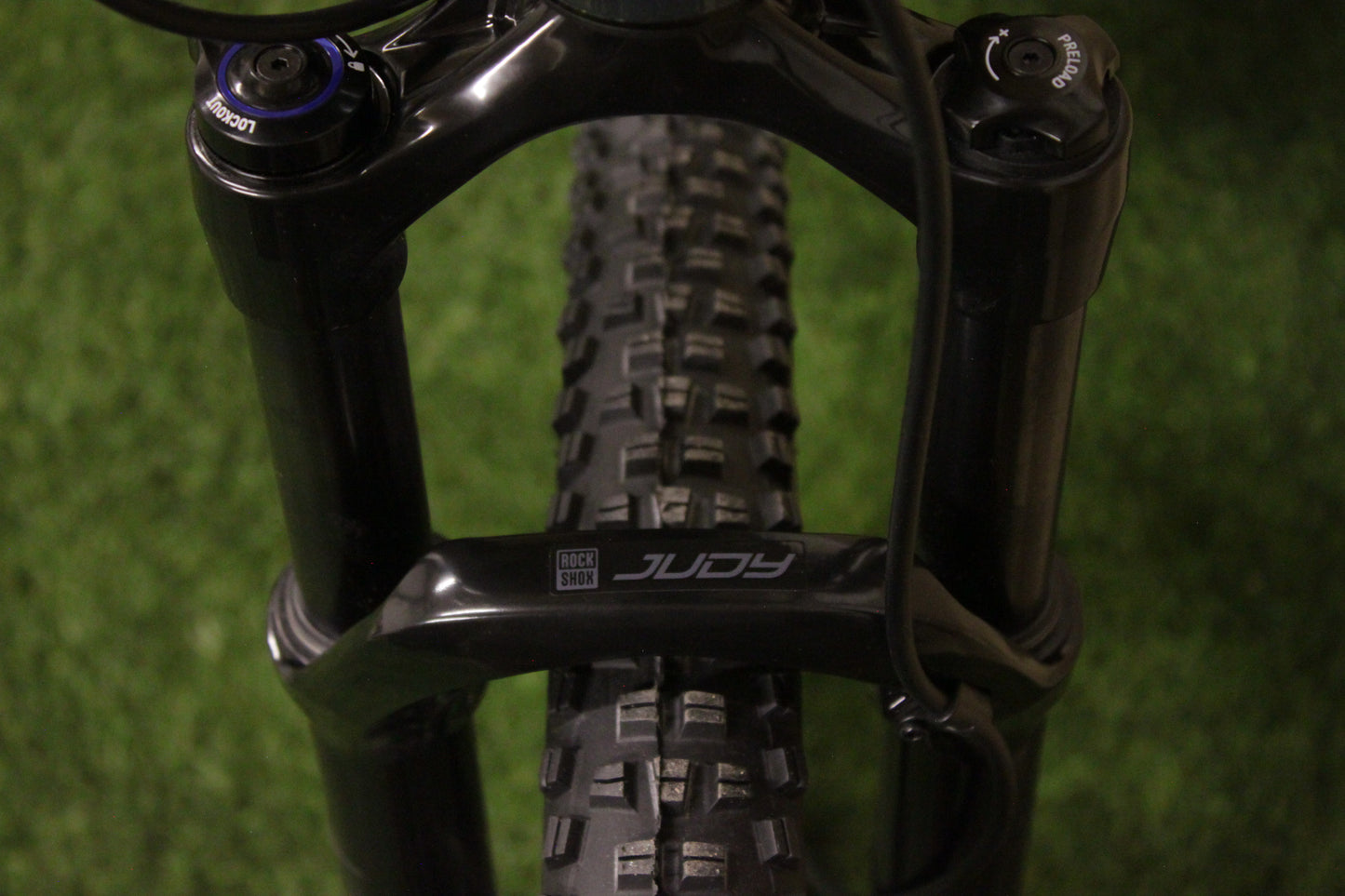

- Fork: RockShox FS-Judy TK 29 QR, Rebound adjust, 100mm travel

- Handlebar: Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp

- Stem: Calibre Trail, 31.8mm clamp, 45mm extension

- Grips: Calibre Trail, Single lock-on, soft compound, integrated bar end

- Headset: Semi-integrated, ZS44

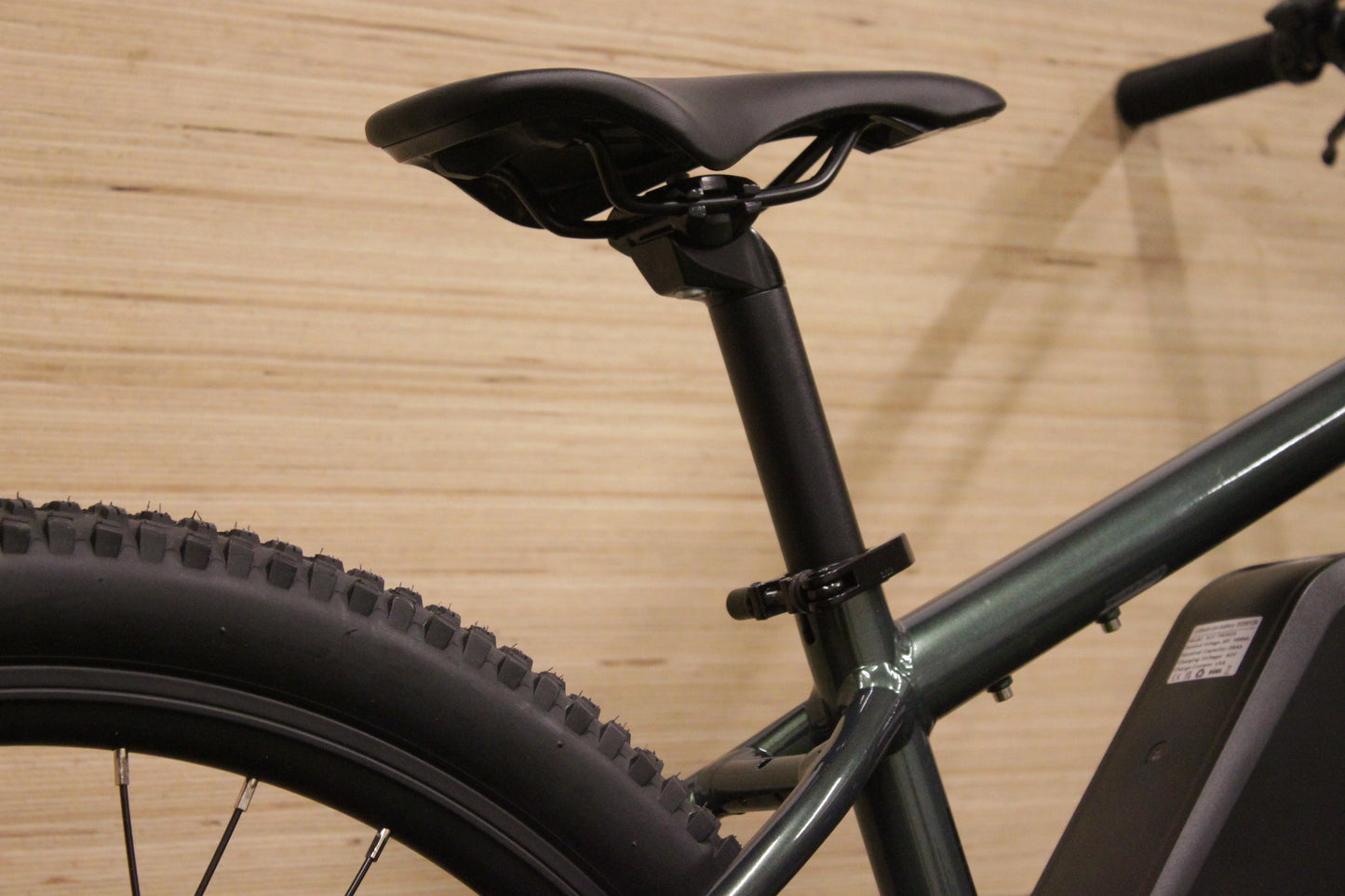

- Saddle: Calibre Trail, steel rails

- Seatpost: Calibre Trail 30.9 x 350mm

- Seatclamp: Calibre QR 34.9MM

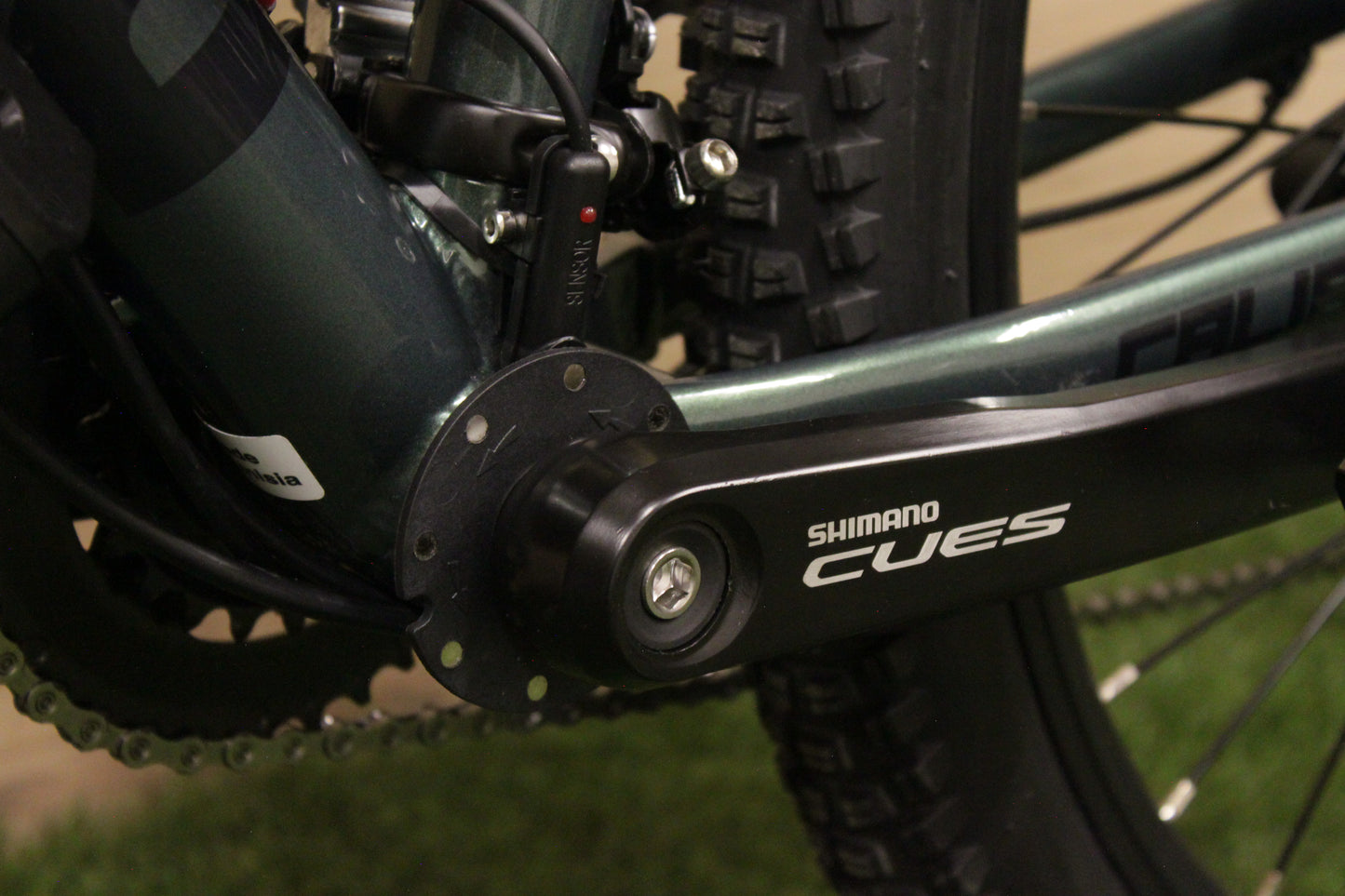

- Chainset: Calibre 175mm 22x36T

- Pedals: Flat pedals

- Bottom Bracket: Square taper 73mm BB

- Drivetrain: Shimano Cues 9 speed

- Cassette: Shimano 9 speed Acera 11-36T

- Chain: KM X9

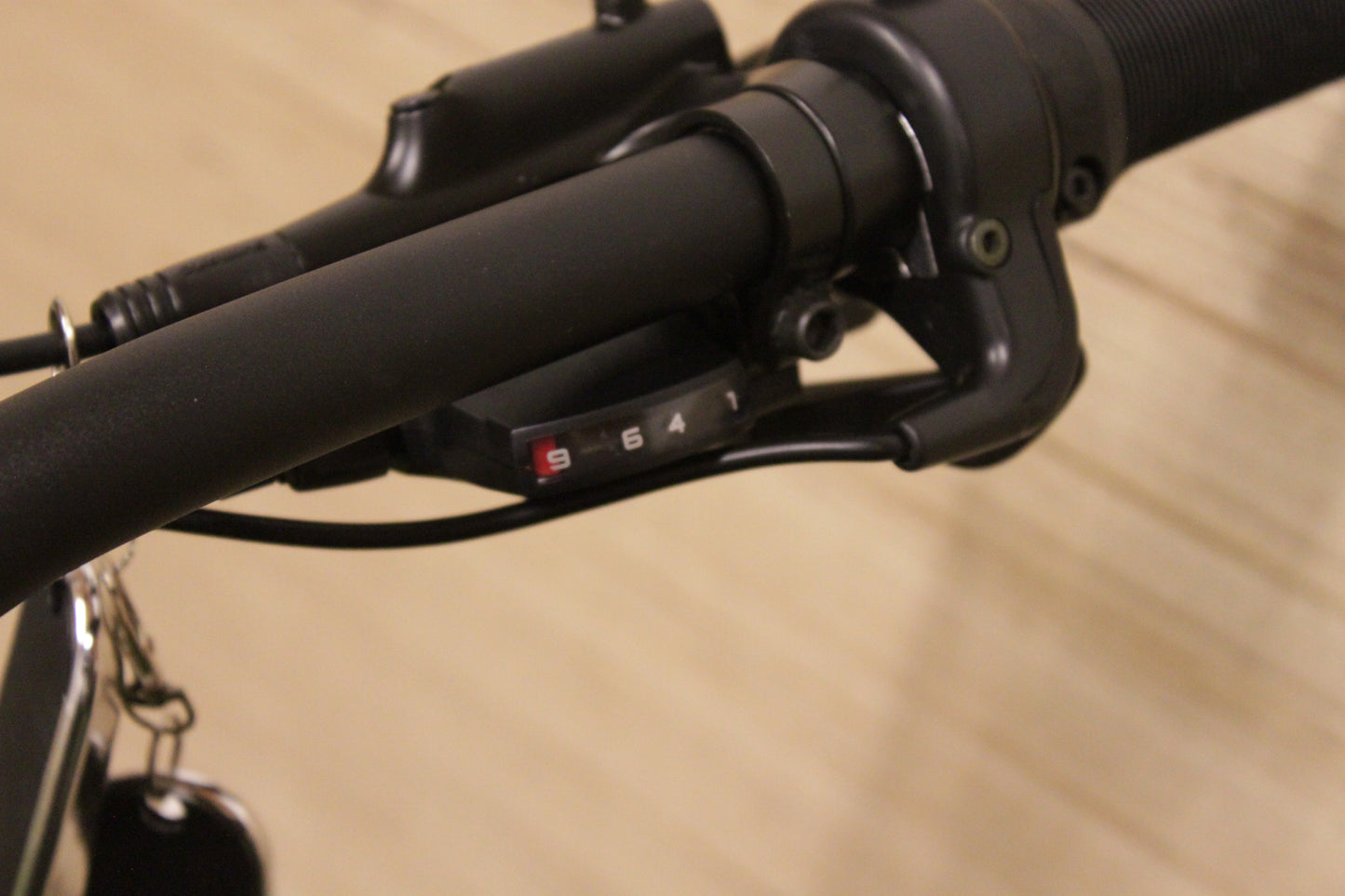

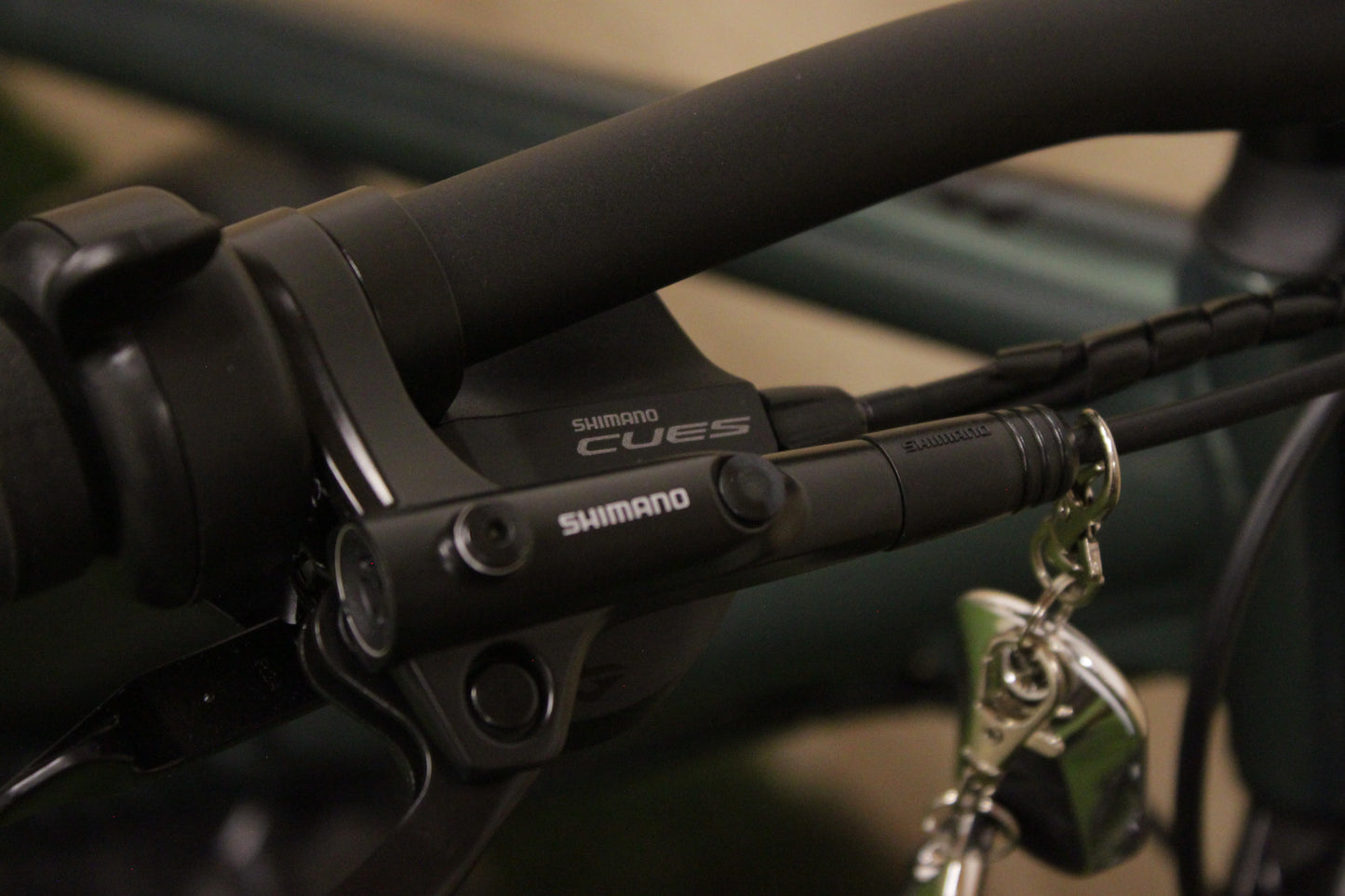

- Right Shifter: Shimano Cues 9 speed

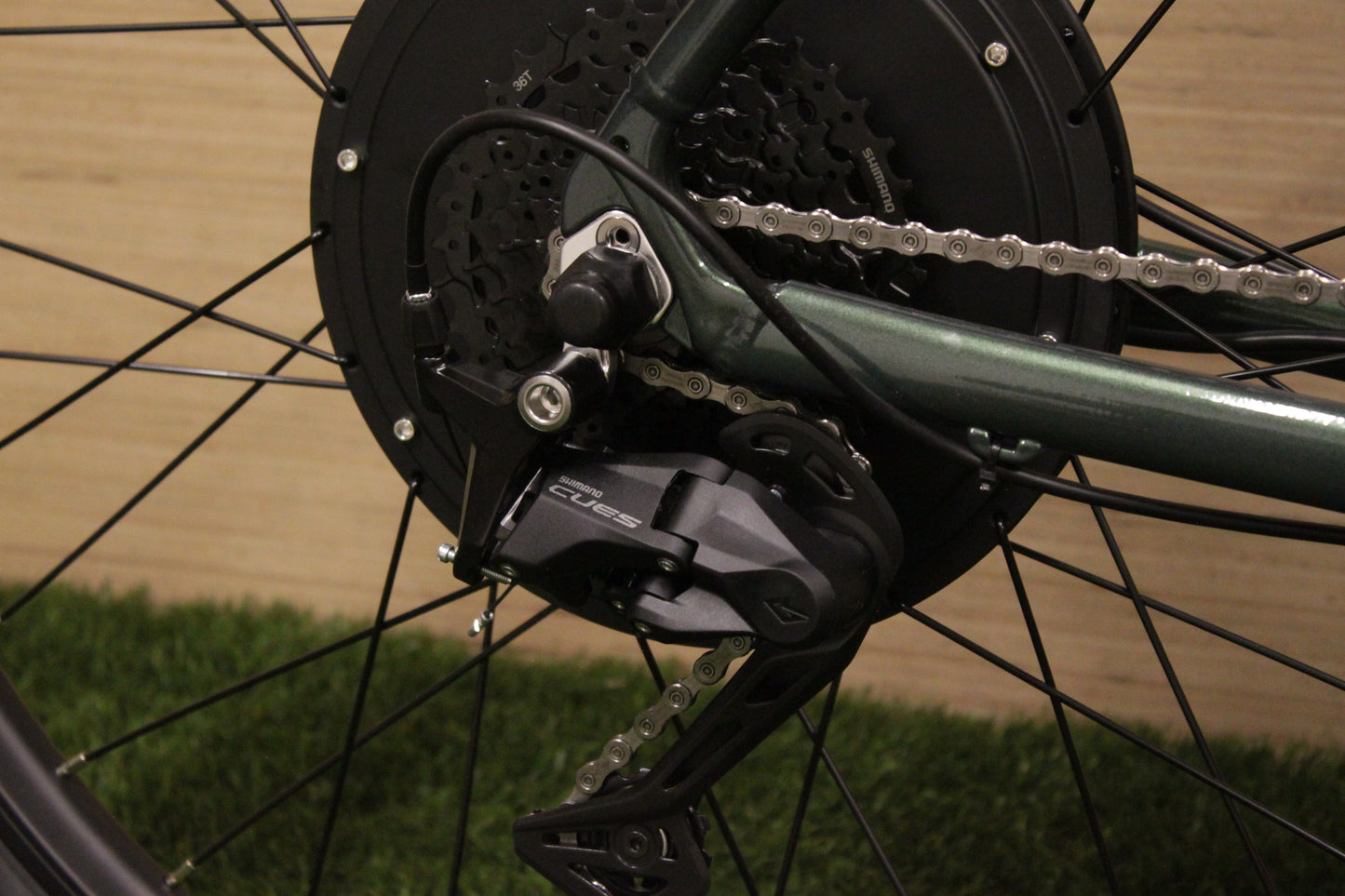

- Rear Derailleur: Shimano Cues 9 speed

Packaging:

This ebike arrives well packaged with minimal assembly time out the box (tools included). Attach the front quick release wheel, saddle, handlebar and pedals and it's ready to ride.

Not sure when you'll be in?

Our delivery drivers will call you prior to departure to ensure a delivery time that's suitable for you.

Please Note:

Battery must be fully charged prior to its first use.

Disclaimer:

By purchasing this e-bike, you acknowledge that you have reviewed the specific legal requirements for its use under UK law, including Government guidance on electric bike (EAPC) rules. You agree that Ebike Converters Limited bears no liability for any legal consequences, fines, or accidents resulting from the use of this vehicle, particularly if it is operated on public roads while failing to meet EAPC standards. You assume full responsibility for ensuring the bike is maintained safely and used in compliance with all local regulations.
