Free UK delivery!

Available in 2 Options:

-36V 28AH 1008WH 900W

-48V 25AH 1200WH 1200W

(Volts = Speed / AH = Range / WH = Battery Capacity / W = Power)

Basic information:

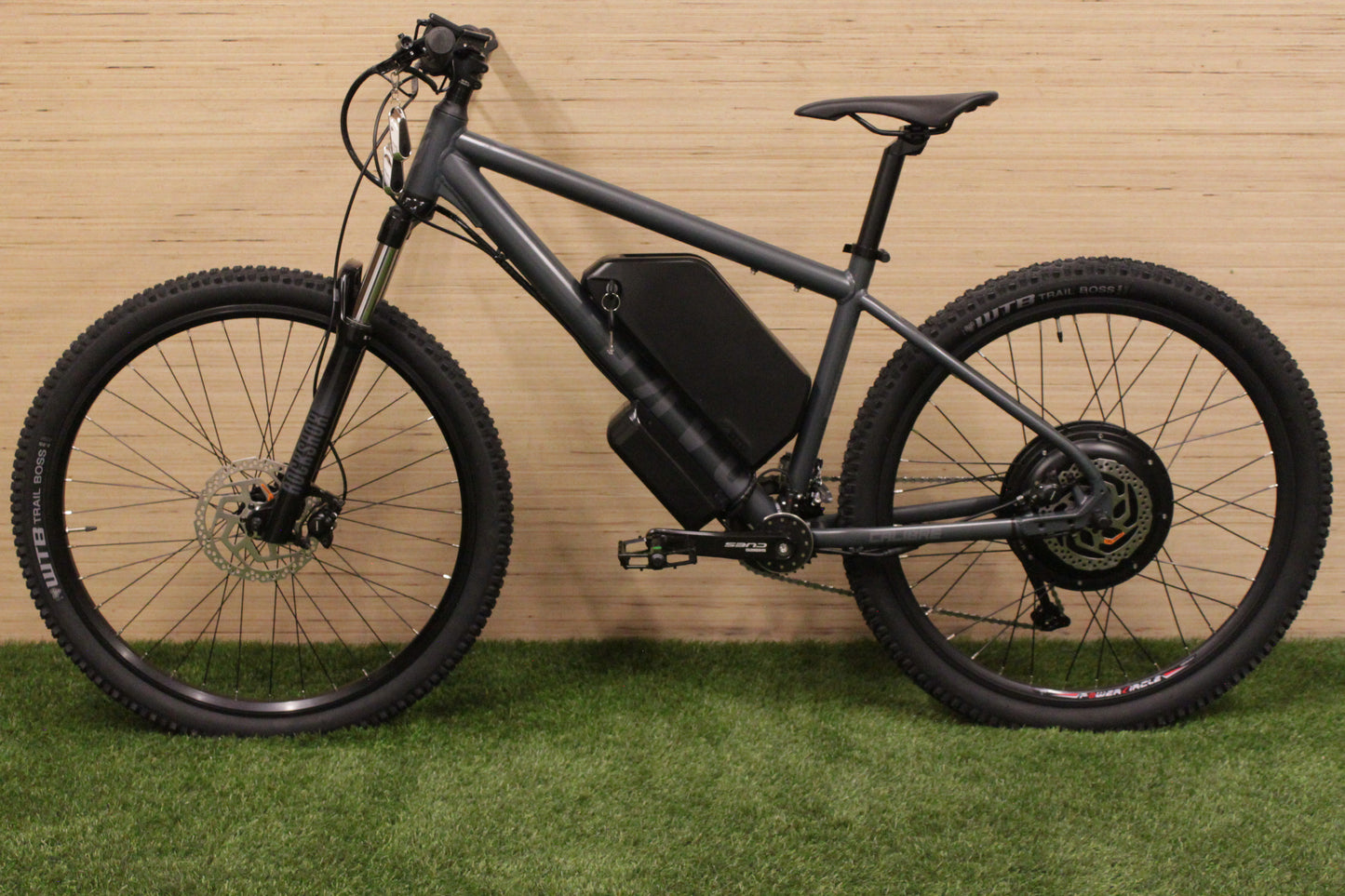

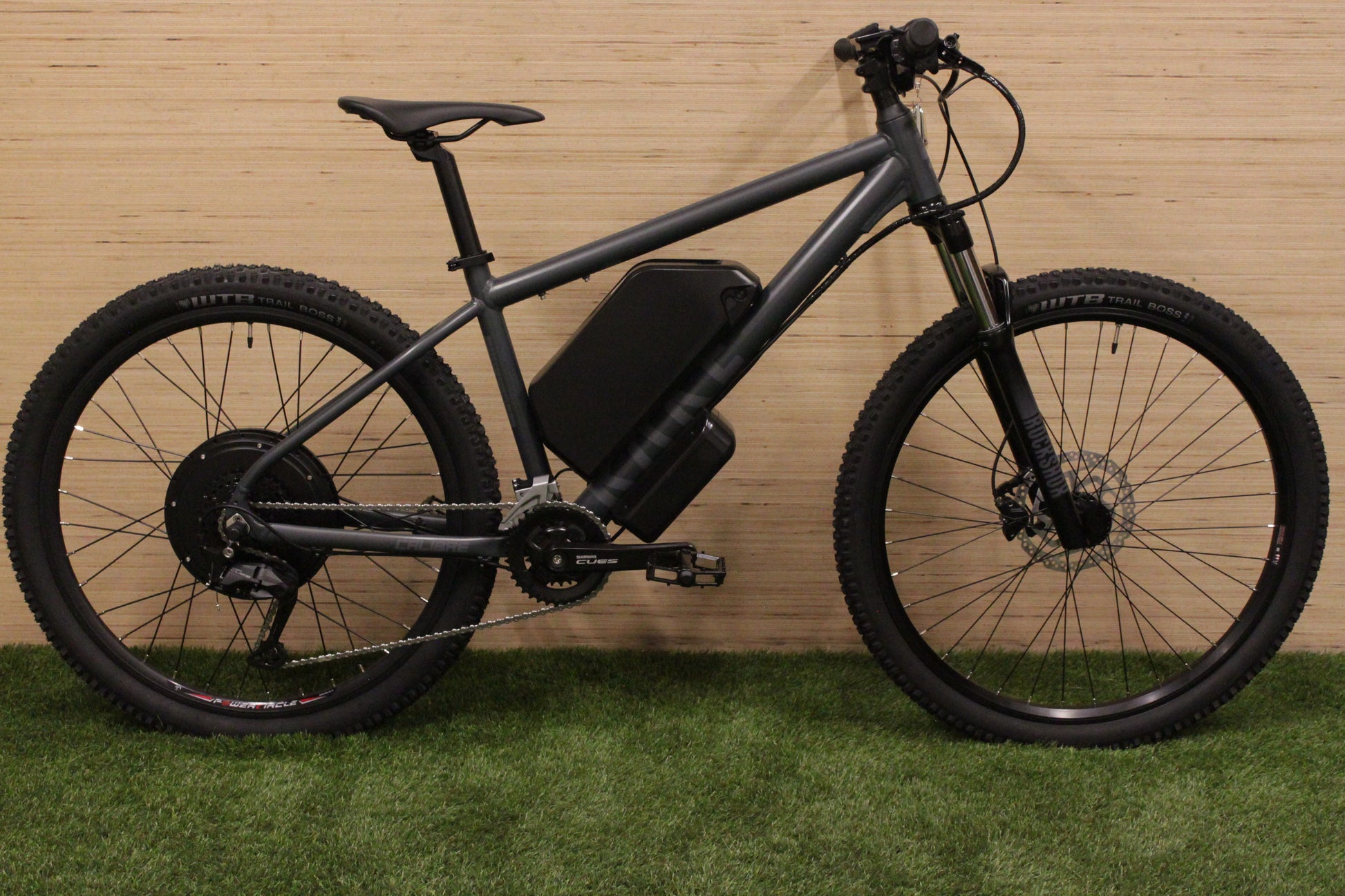

Make: Caliber

Model: Rake 27.5

Wheel Size: 27.5"

Colour: Grey

Features:

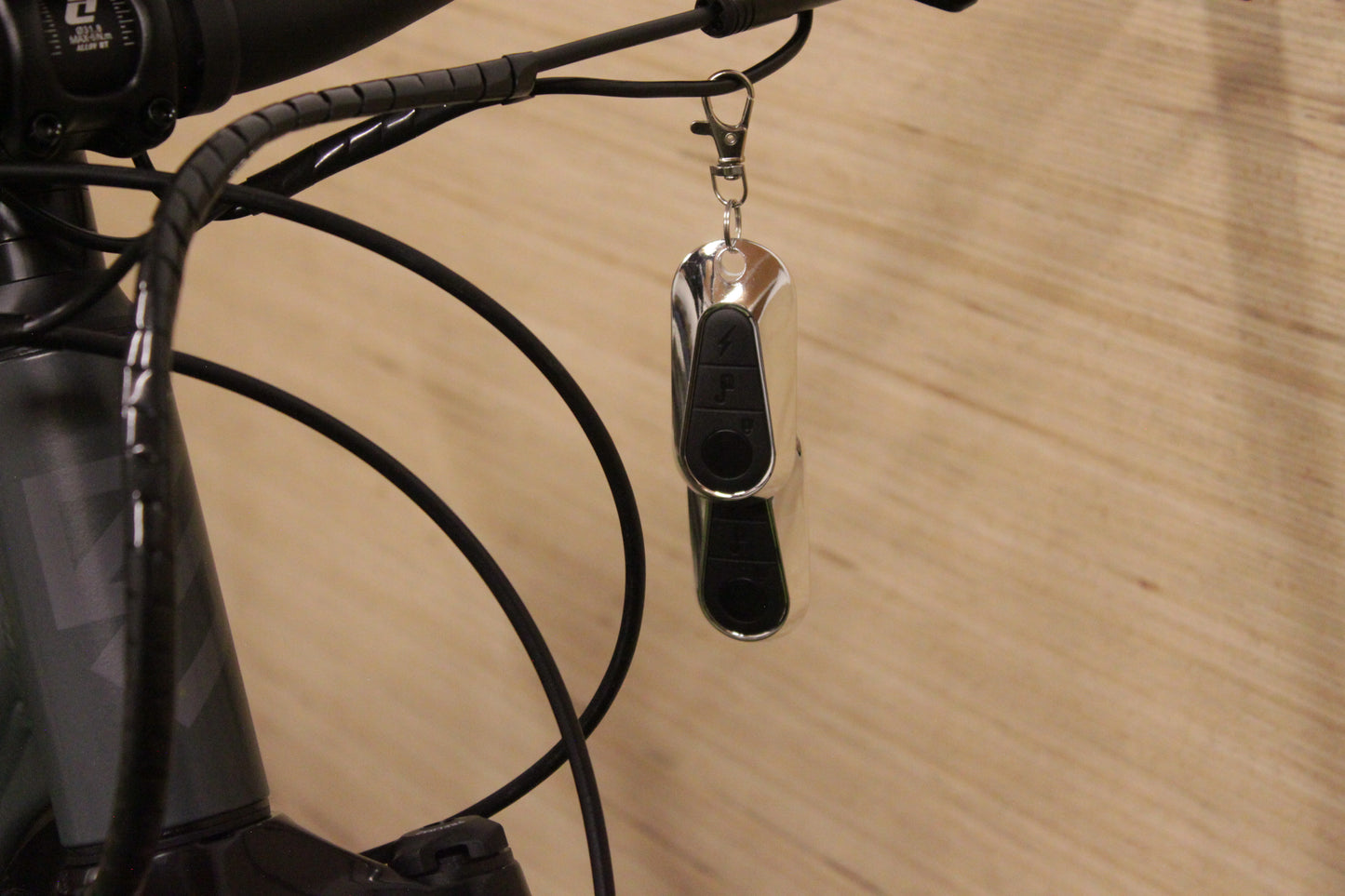

- Alarm System With Automatic Wheel Locking Technology

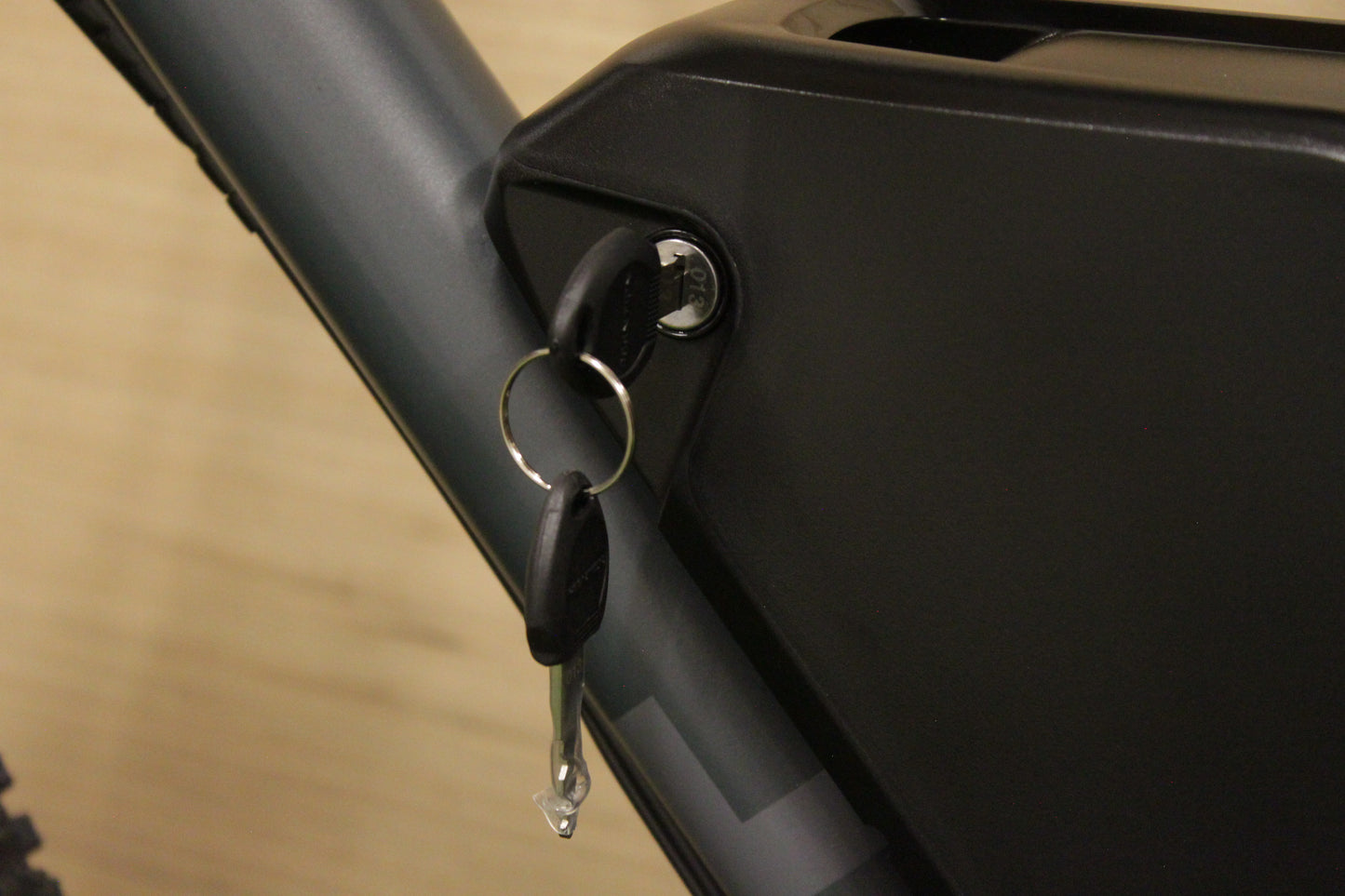

- Detachable and Lockable Battery

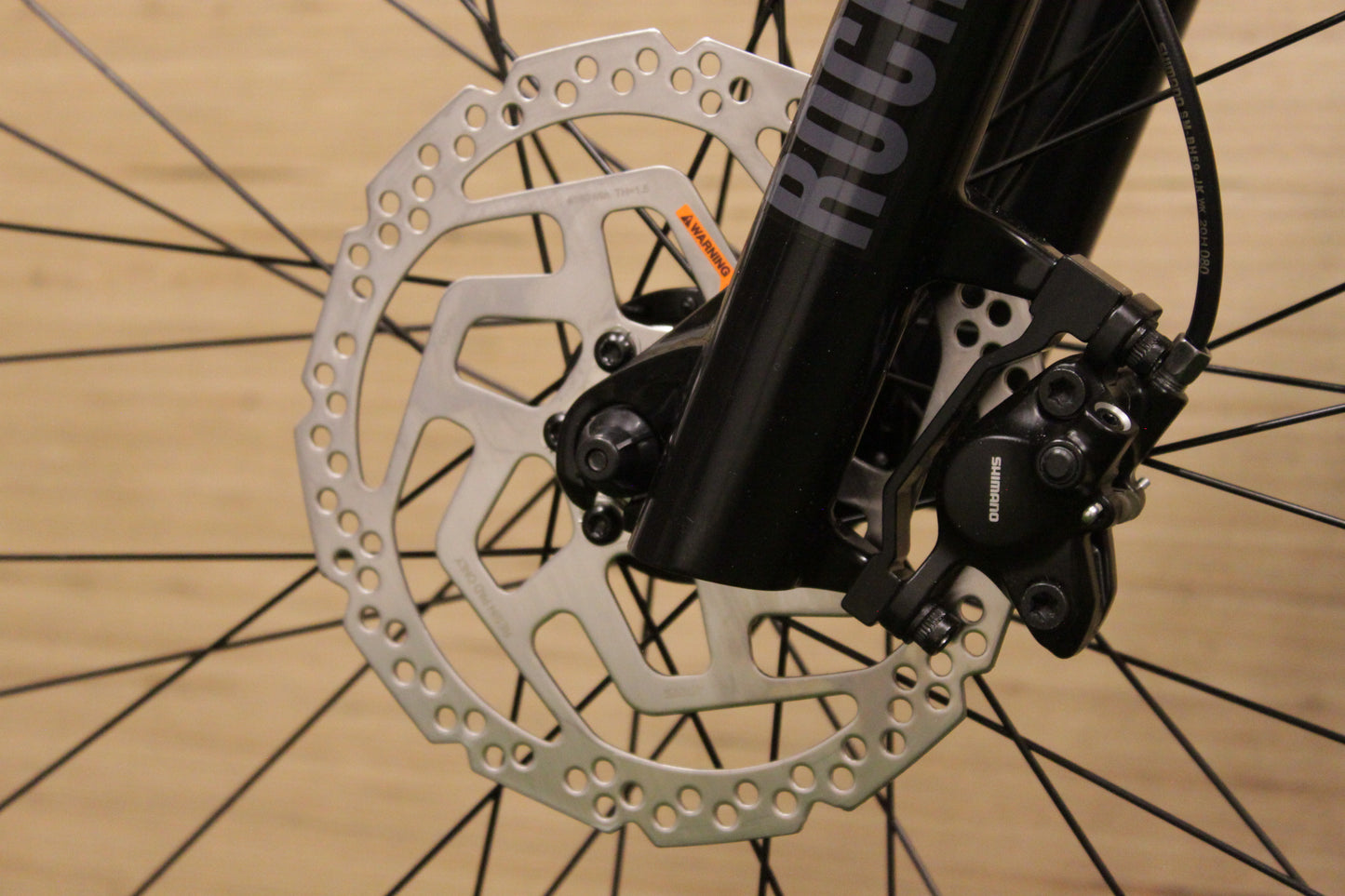

- Powerful Self Adjusting Hydraulic Disc Brakes

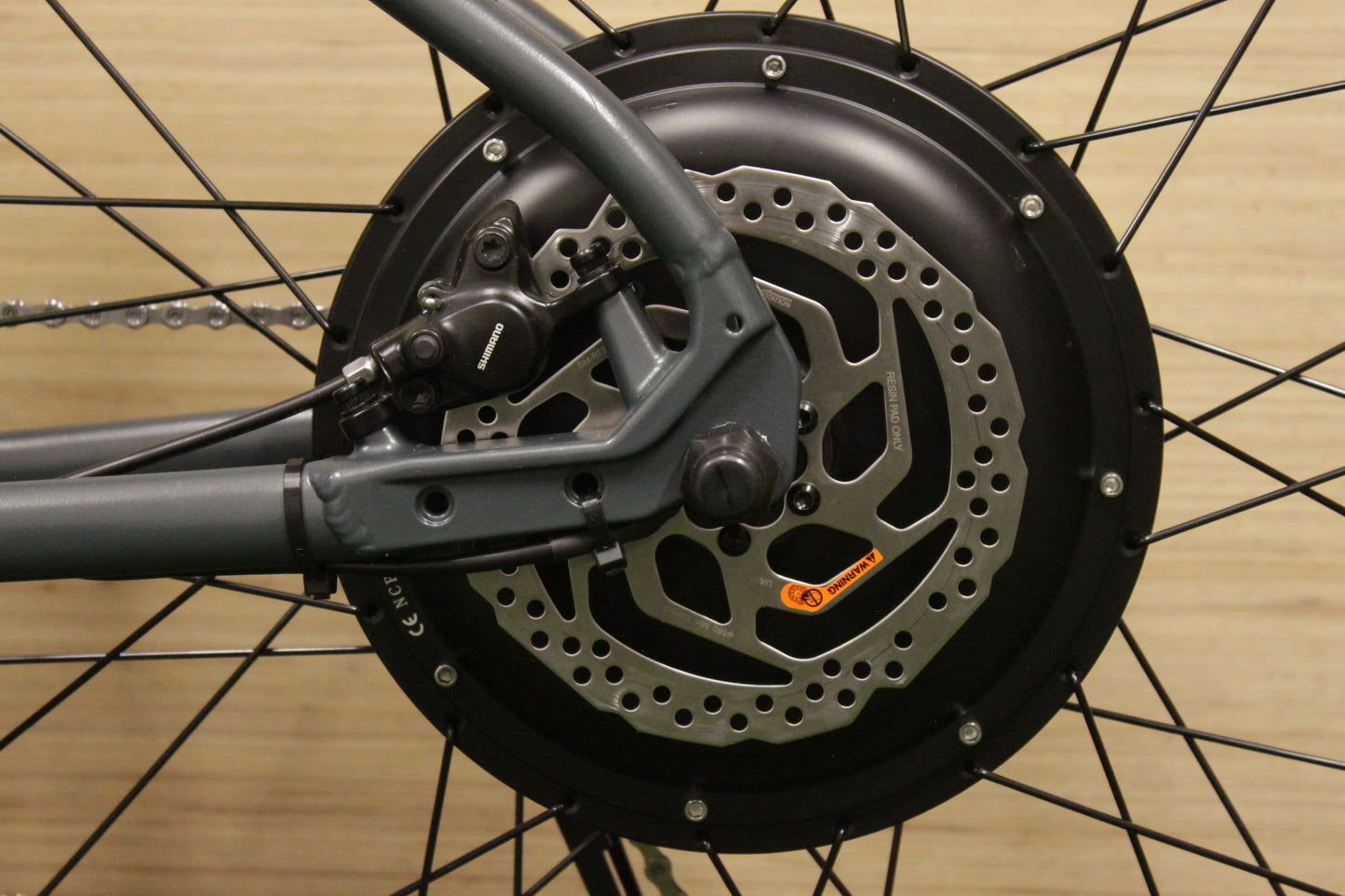

- Powerful Direct Drive Rear Hub Motor

- 100% Silent and smooth ride

- Thumb Throttle and up to 9 Pedal Assist Modes

- Disconnect-able Motor Cable

- Kickstand (optional)

Electrical Specification:

Power: 36V-900W / 48V-1200W

Battery Voltage: 36V / 48V

Range: 36V - 45 Miles / 48V 55 Miles (in ideal riding conditions)

Ride modes: Thumb Throttle and/or 9 Pedal Assist Modes

Charge time: 5-6 hours

Top speed: 36V-27MPH/48V-33MPH (in ideal riding conditions)

Controller: Sine Wave 25A

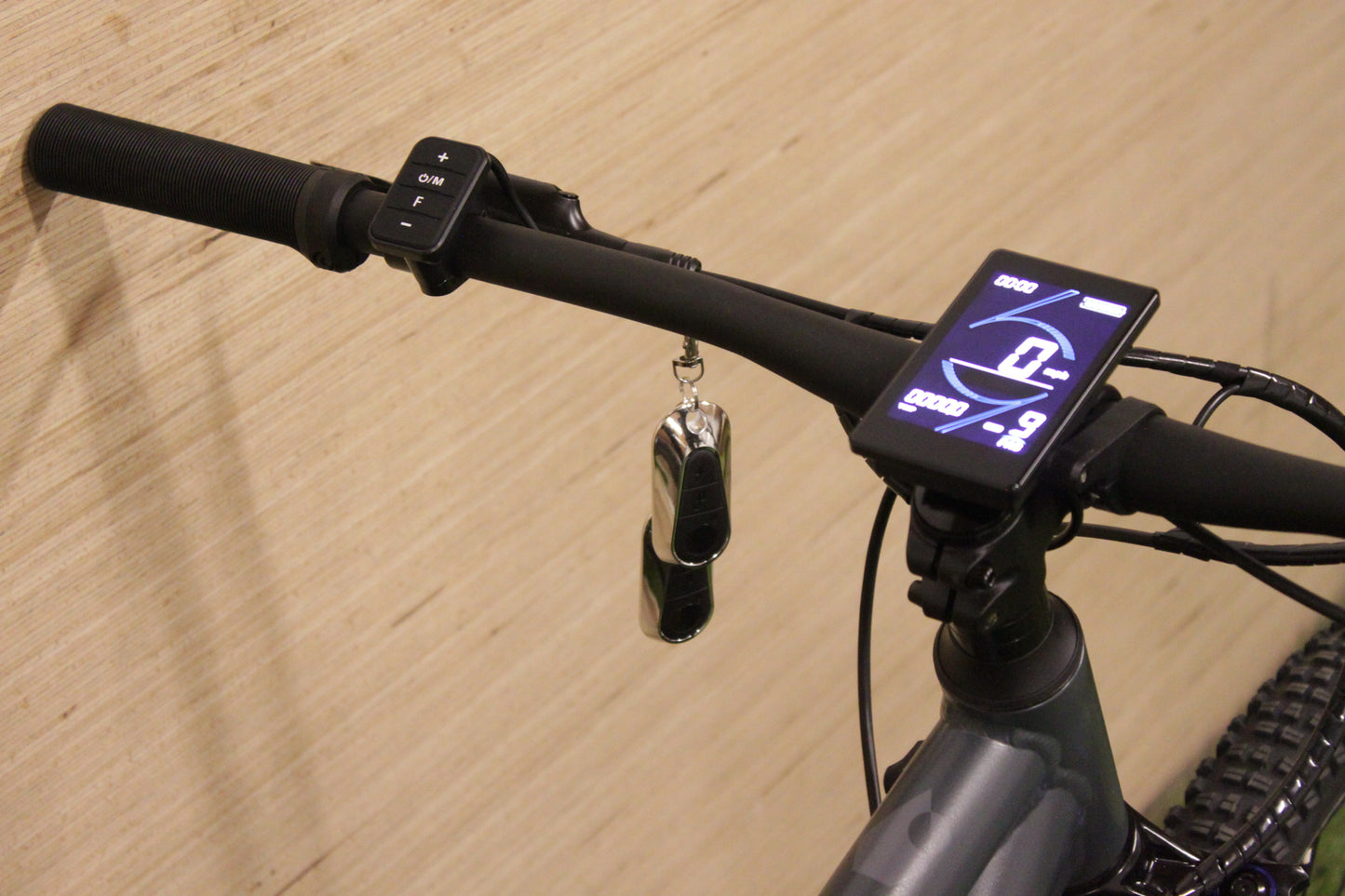

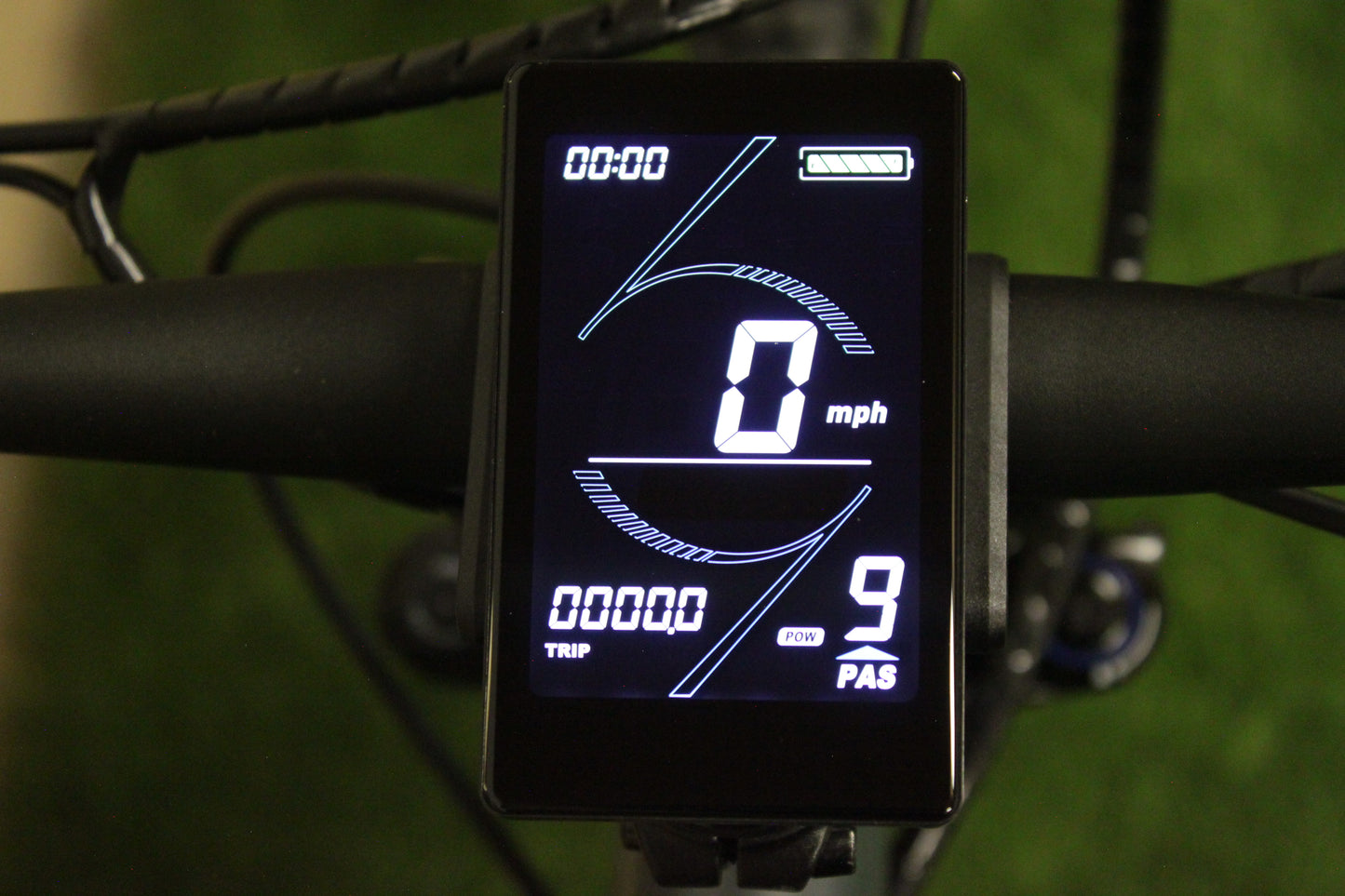

Display model: T5S (colour screen)

Display Features: Current/Average/Top speed, Voltage, Battery Percentage

Charger: 3A charger (UK Plug)

Includes: 2X Battery Keys and 2X Alarm keys

Mechanical Specification:

- Frame: Alu 6061 29”, 135 QR, Post-mount disc, 44mm headtube

- Fork: RockShox FS-Judy TK 27.5” QR, Rebound adjust, 100mm travel

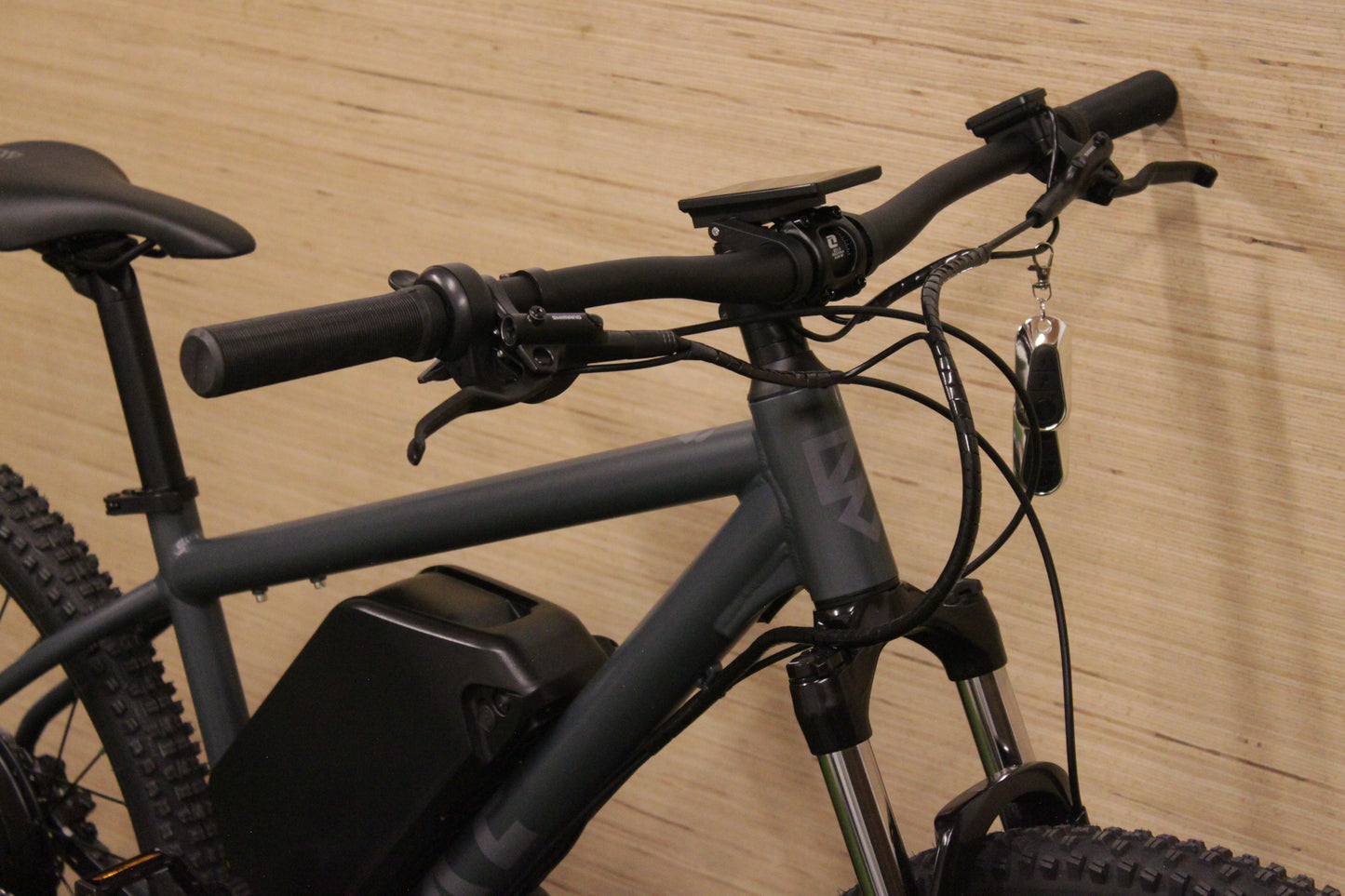

- Handlebar: Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp

- Stem: Calibre Trail, 31.8mm clamp, 45mm extension

- Grips: Calibre Trail, Single lock-on, soft compound, integrated bar end

- Headset: Semi-integrated, ZS44

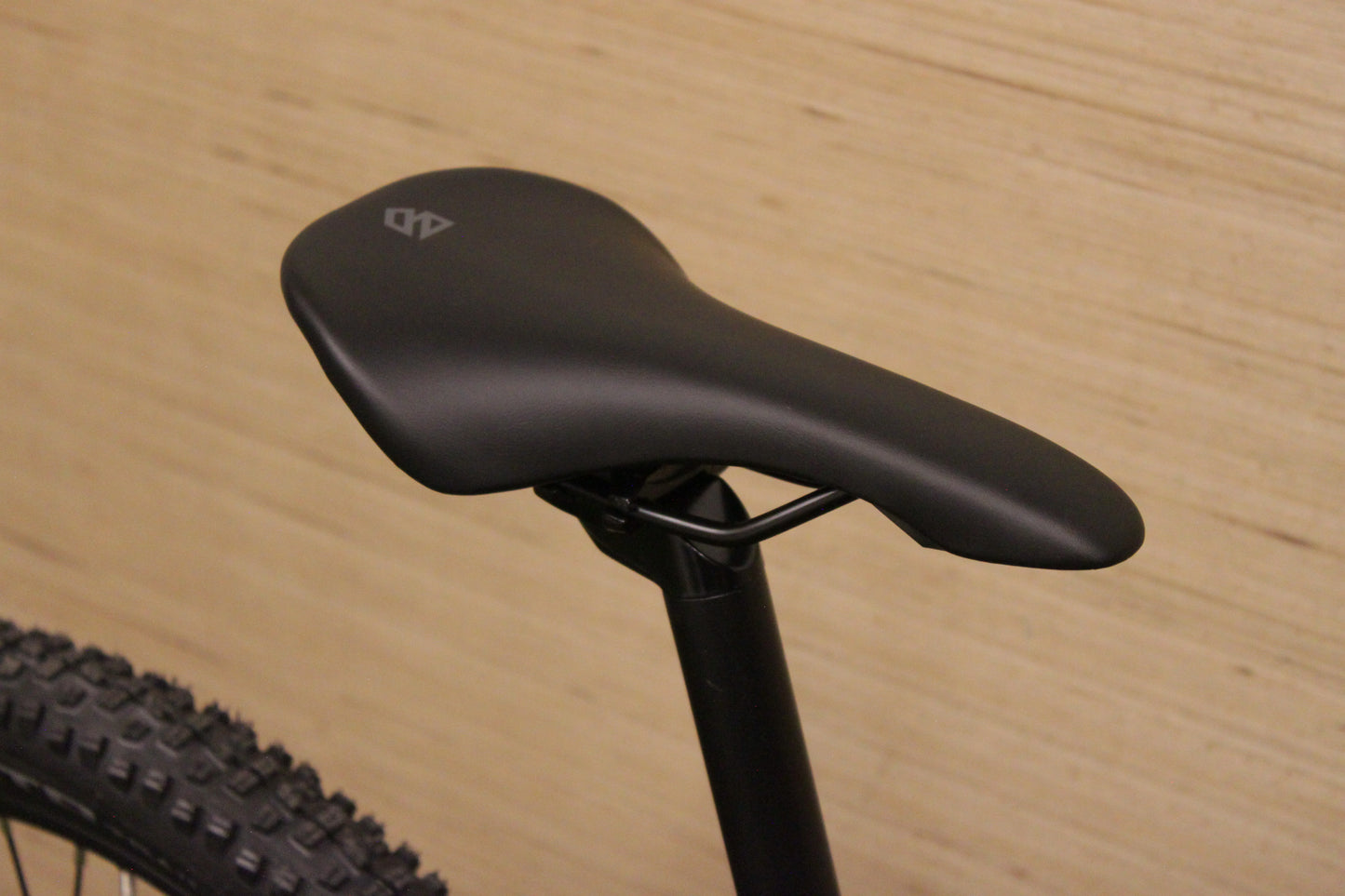

- Saddle: Calibre Trail, steel rails

- Seatpost: Calibre Trail 30.9 x 350mm

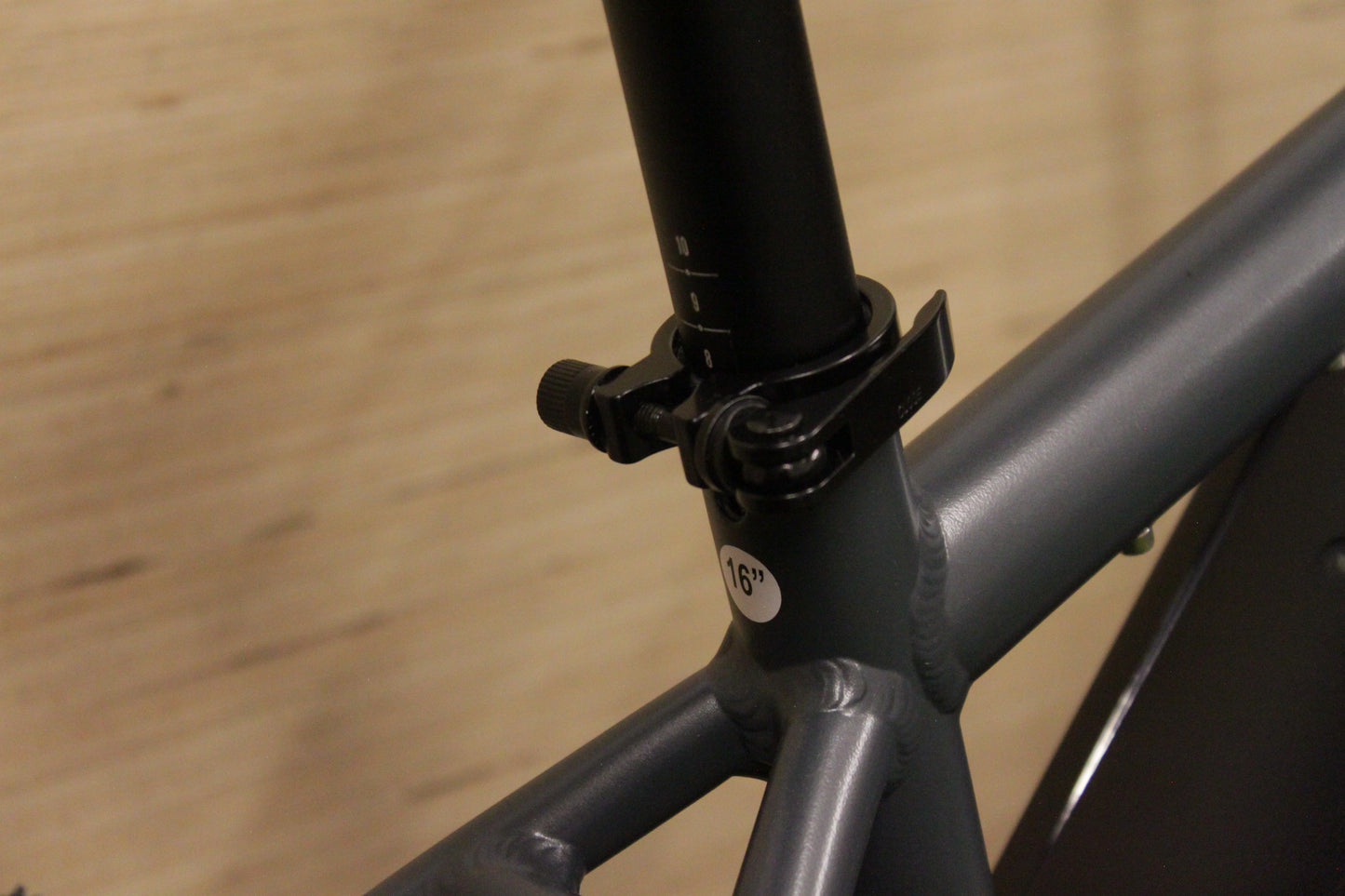

- Seatclamp: Calibre QR 34.9MM

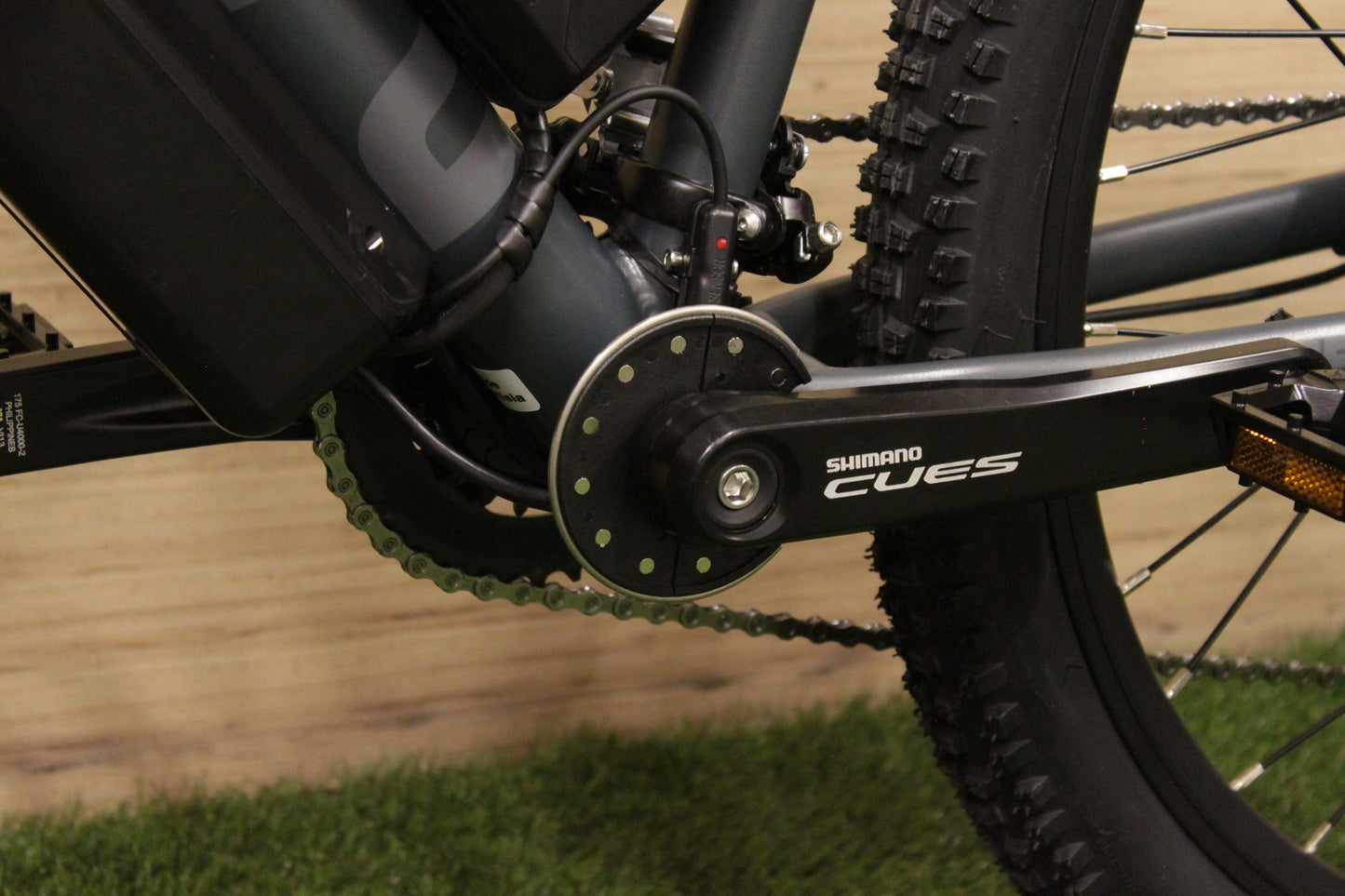

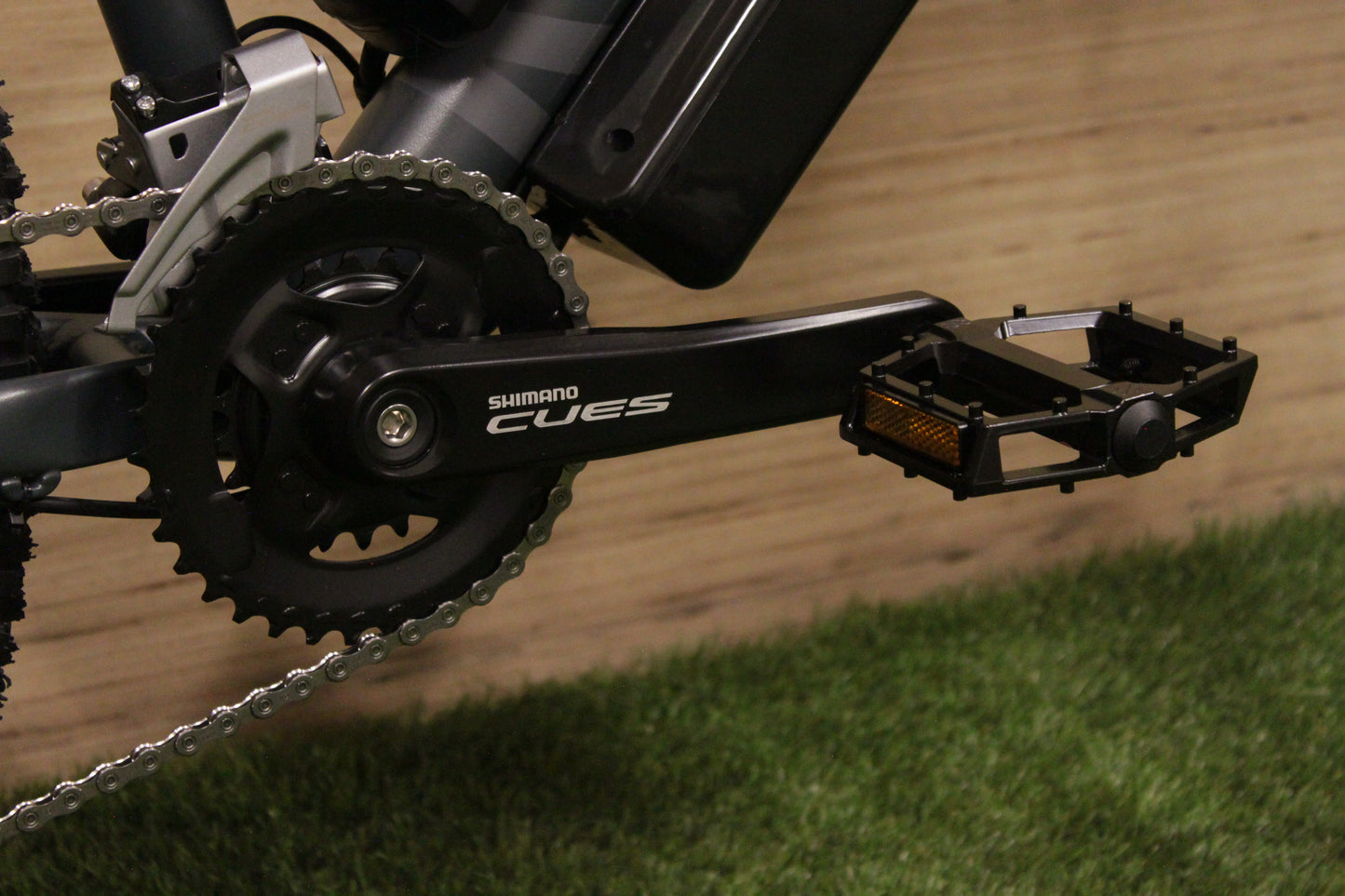

- Chainset: Calibre 175mm 36T

- Pedals: Flat pedals

- Bottom Bracket: Square taper 73mm BB

- Drivetrain: Shimano 18 speed

- Cassette: Shimano 9 speed Acera 11-36T

- Chain: KMC X9

- Shifter: Shimano Alivio 9 speed

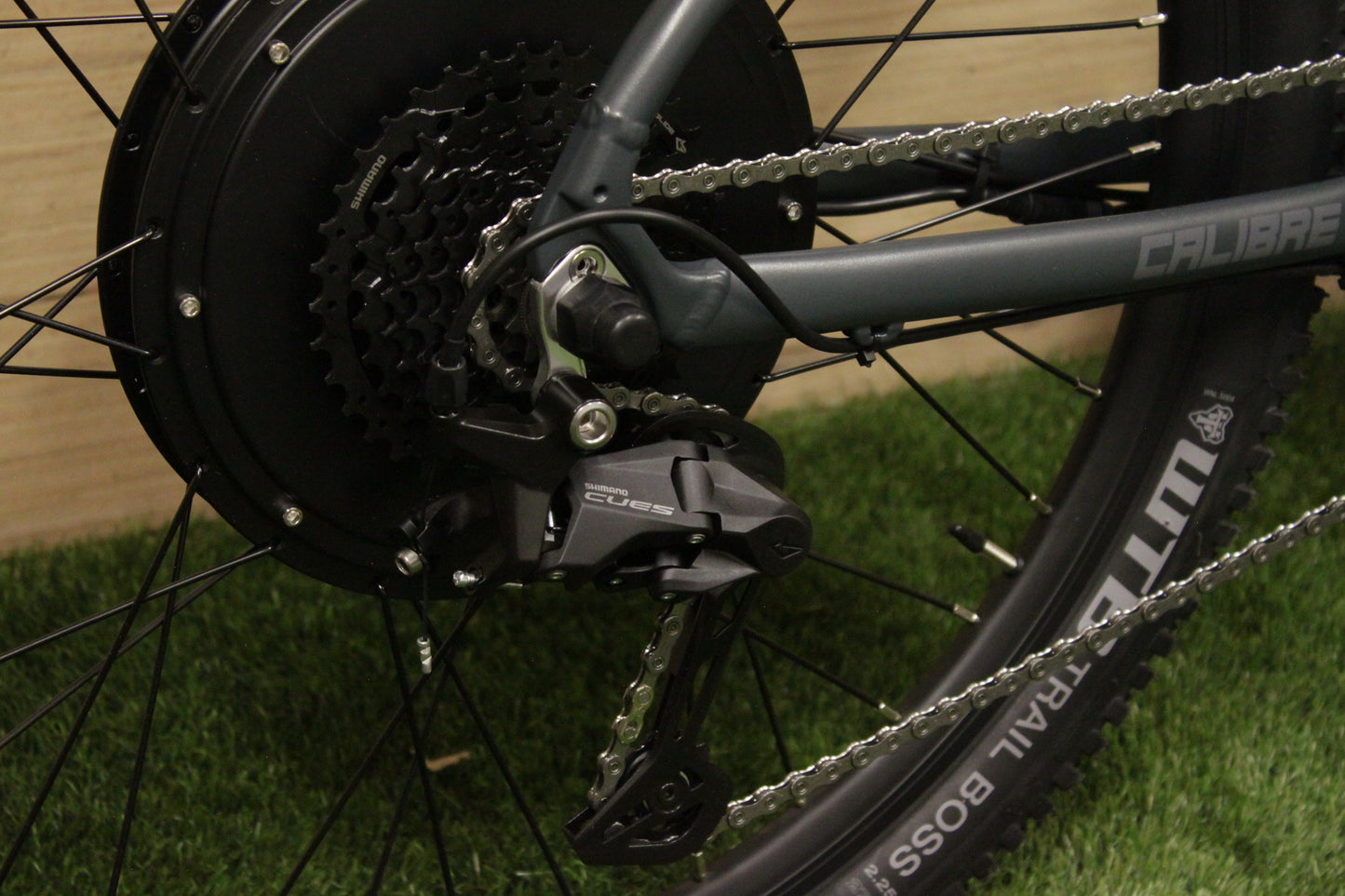

- Rear Derailleur: Shimano Alivio 9 speed

Packaging:

This ebike arrives well packaged with minimal assembly time out the box (tools included). Attach the front quick release wheel, saddle, handlebar and pedals and it's ready to ride.

Please Note:

By purchasing this e-bike, you acknowledge that you have reviewed the specific legal requirements for its use under UK law, including Government guidance on electric bike (EAPC) rules. You agree that Ebike Converters Limited bears no liability for any legal consequences, fines, or accidents resulting from the use of this vehicle, particularly if it is operated on public roads while failing to meet EAPC standards. You assume full responsibility for ensuring the bike is maintained safely and used in compliance with all local regulations.
