Free UK delivery on all our ready to go Ebikes!

Available in 2 Options:

-48V 30AH 1440WH 1680W

-52V 30AH 1560WH 1820W

(Volts = Speed / AH = Range / WH = Battery Capacity / W = Power)

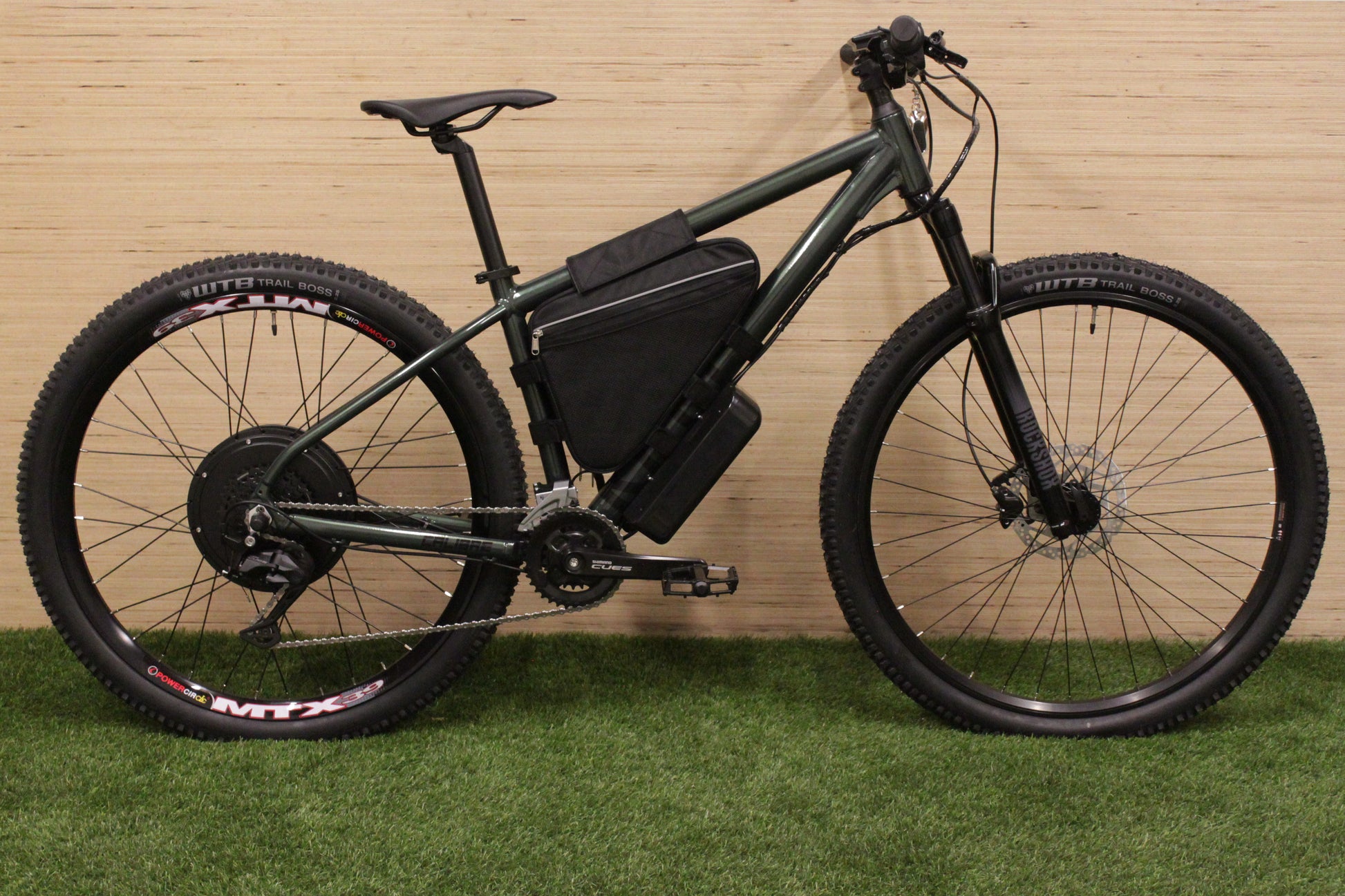

Basic information:

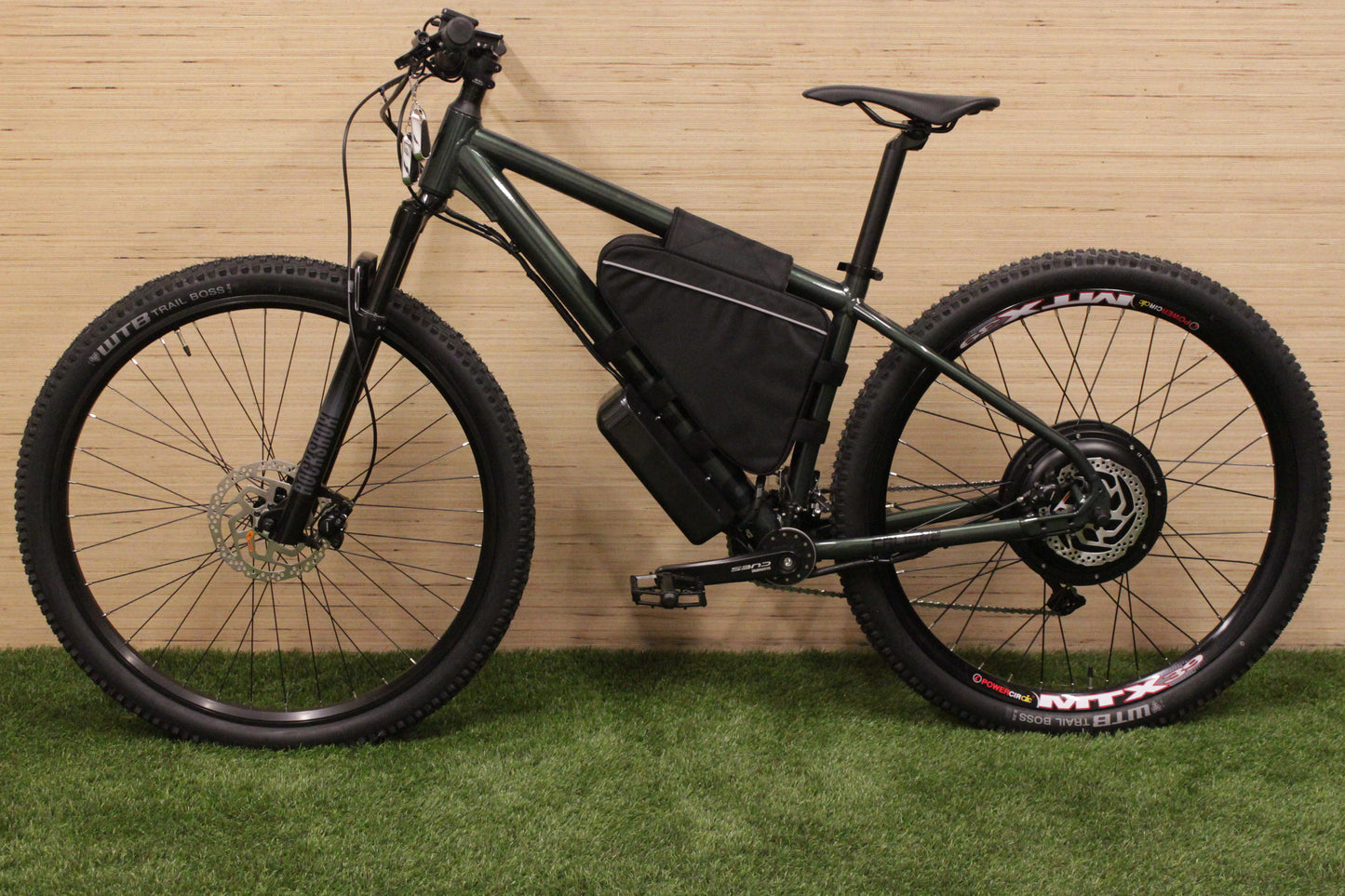

- Make: Caliber

- Model: Rake

- Clarks M2 hydraulic disc brakes

- Wheel Size: 29"

- Colour: Dark Green

Features:

- Alarm System With Automatic Wheel Locking Technology

- Powerful Self Adjusting Shimano Hydraulic Brakes

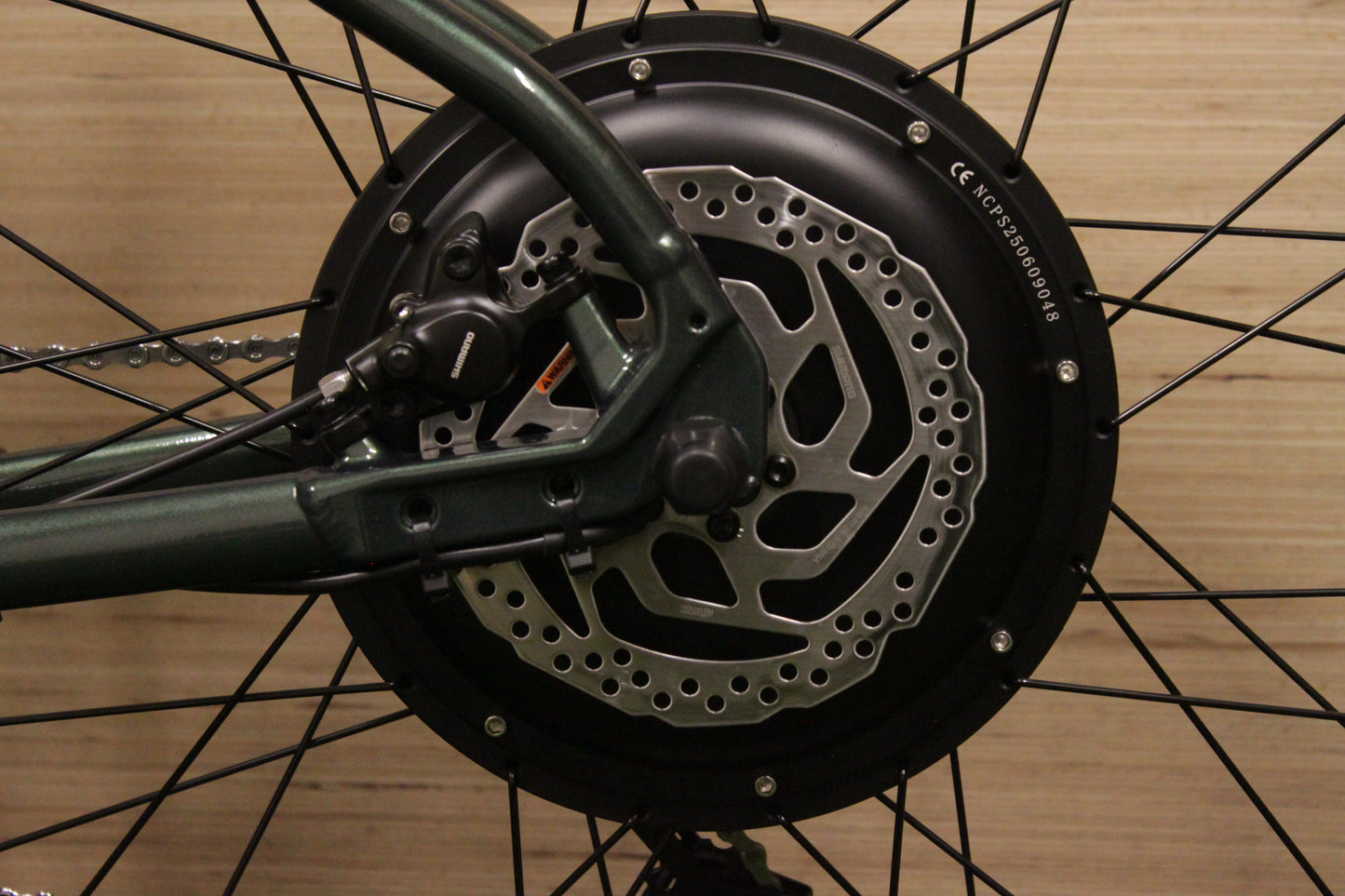

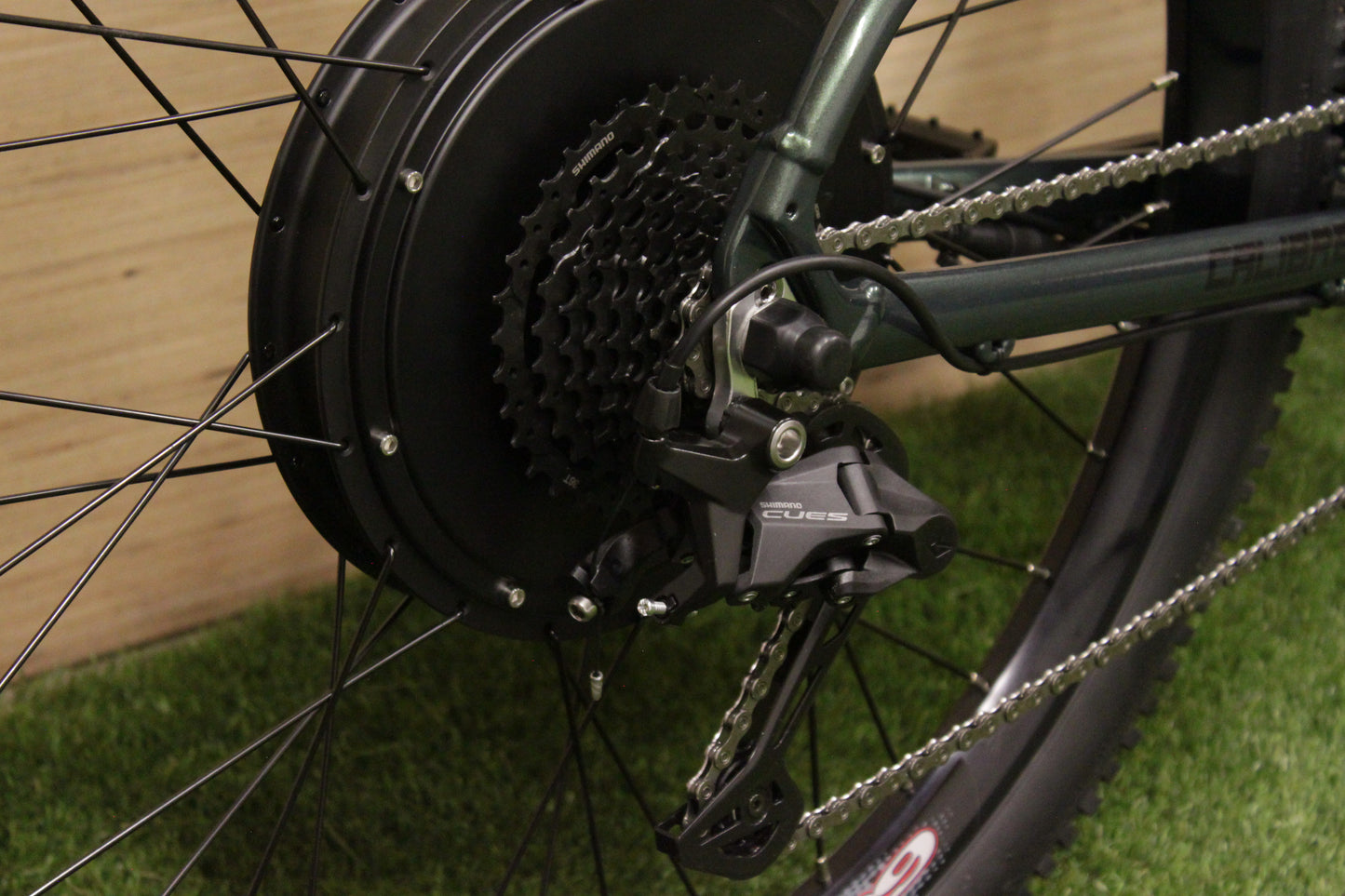

- Powerful Direct Drive Rear Hub Motor

- 100% Silent and smooth ride

- Thumb Throttle and up to 9 Pedal Assist Modes

- Disconnect-able Motor Wheel- Kickstand (optional)

Electrical Specification:

- Power: 48V-1680W / 52V-1820W

- Battery Voltage: 48V/52V

- Battery Type: Polly (5 Pin)

- Range: 48V - 45 Miles / 52V 50 Miles (in ideal riding conditions)

- Ride modes: Thumb Throttle and/or 9 Pedal Assist Modes

- Powerful 5A Charger XT60(Charging time: 5-6 hours) UK Plug

- Top speed: 48V-35MPH/52V-38MPH (in ideal riding conditions)

- Controller: Sine Wave 35A

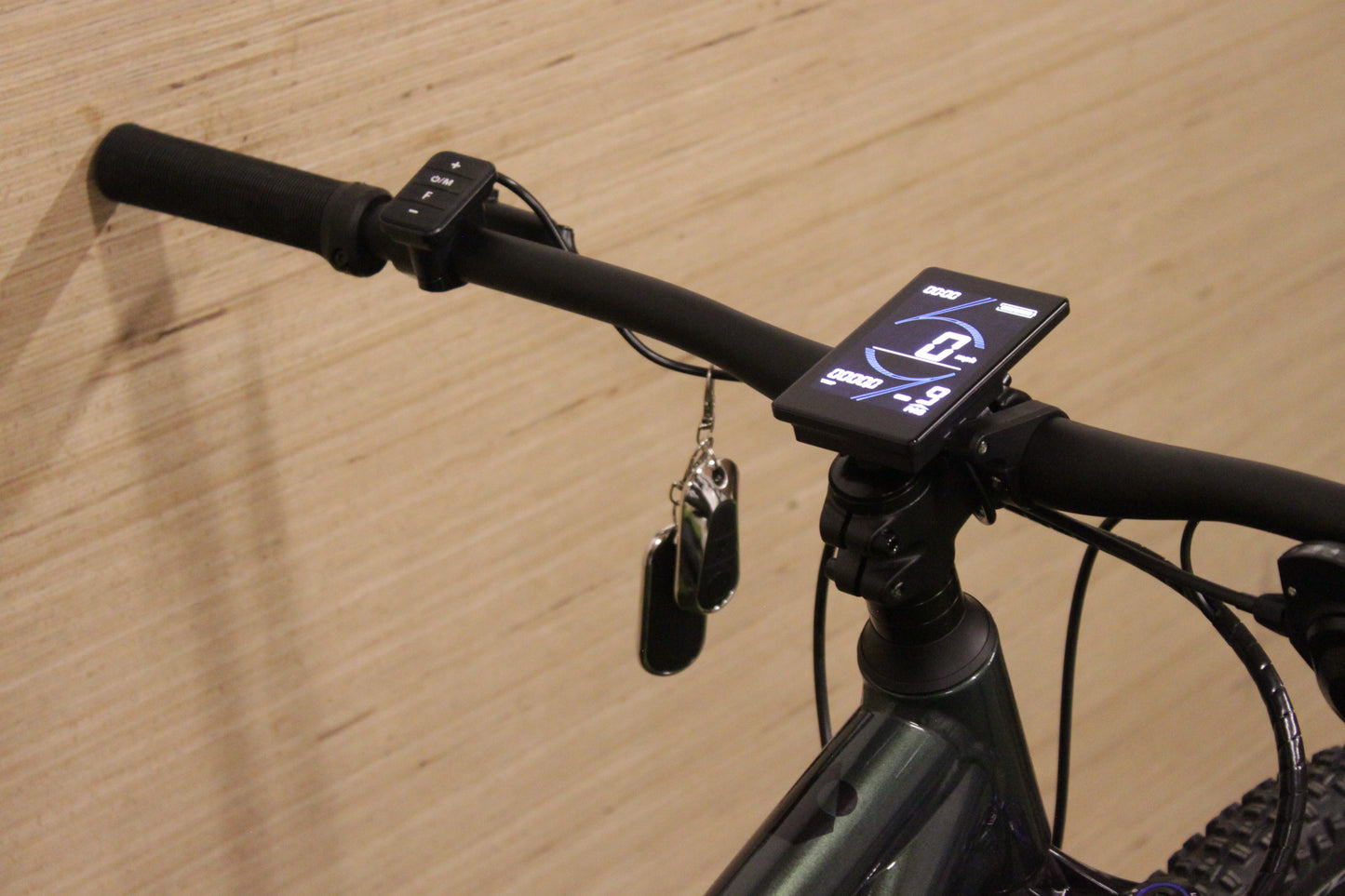

- Display model: T5S (colour screen)

- Display Features: Current/Average/Top speed, Voltage, Battery Percentage

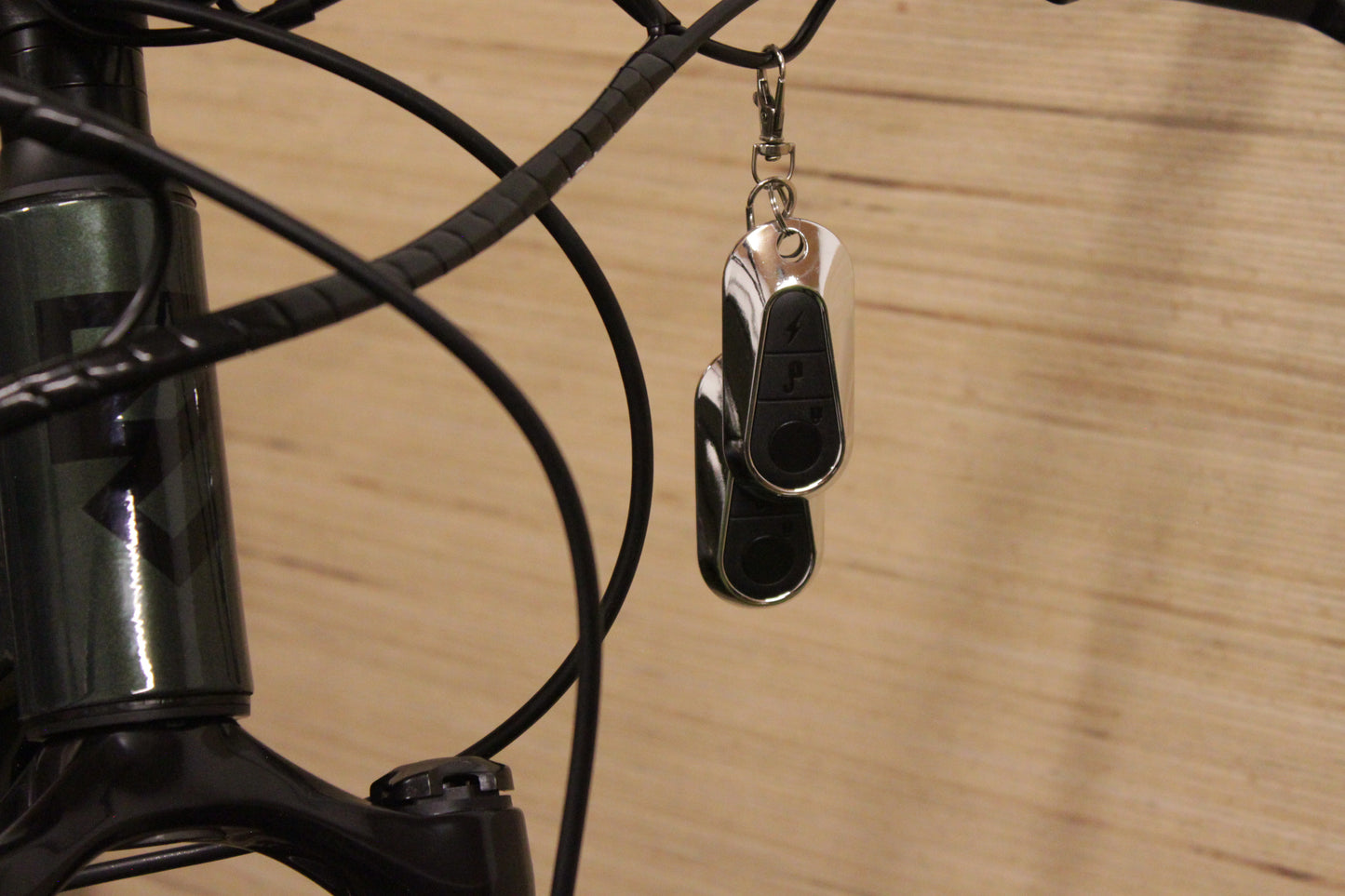

- Includes: 2X Alarm keys

Mechanical Specification:

- Calibre hardtail frame – A lightweight alloy frame with balanced geometry for efficient climbs and confident descents

- 100mm RockShox Judy suspension fork - A capable coil-sprung trail fork with adjustable rebound damping

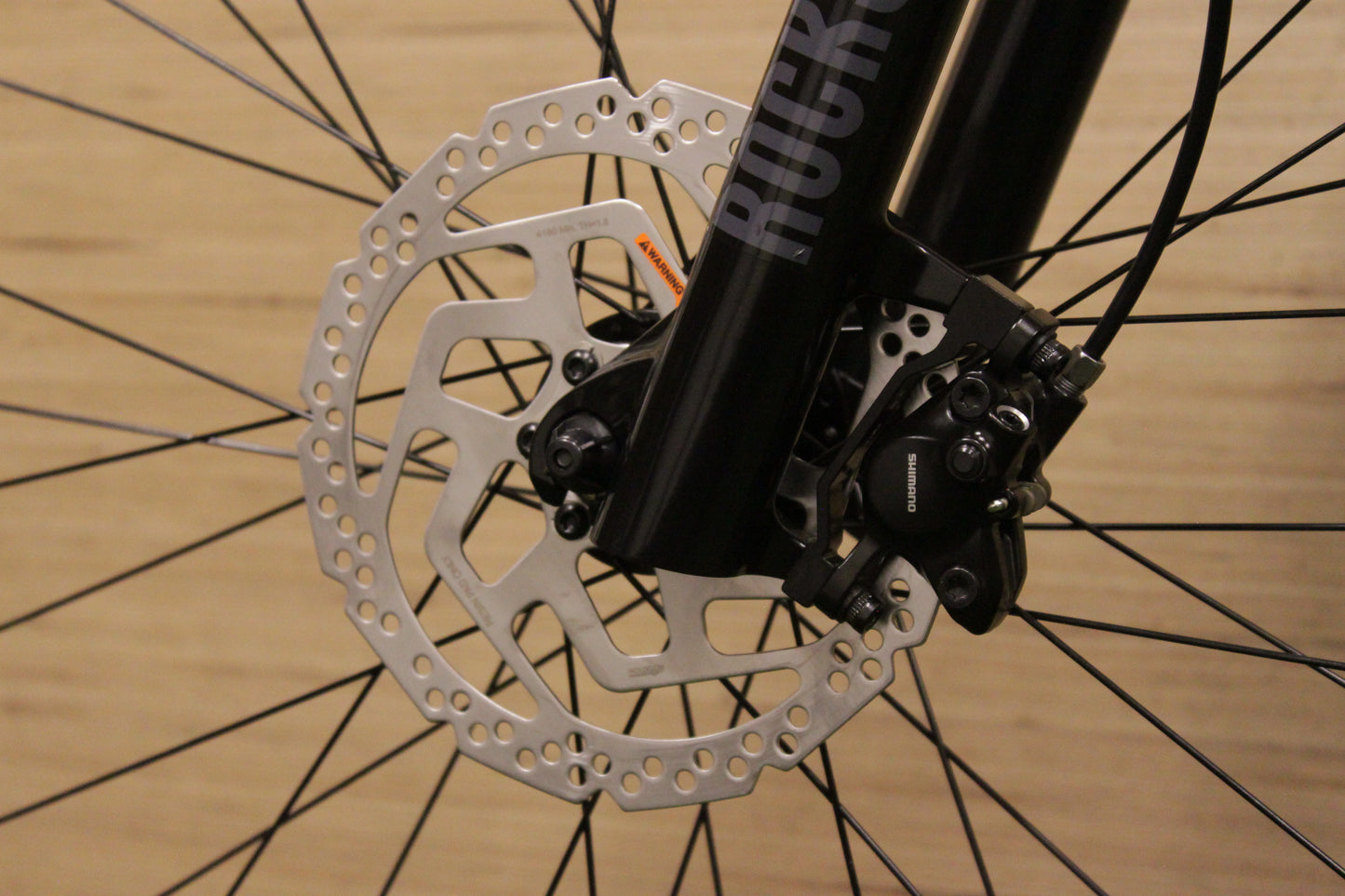

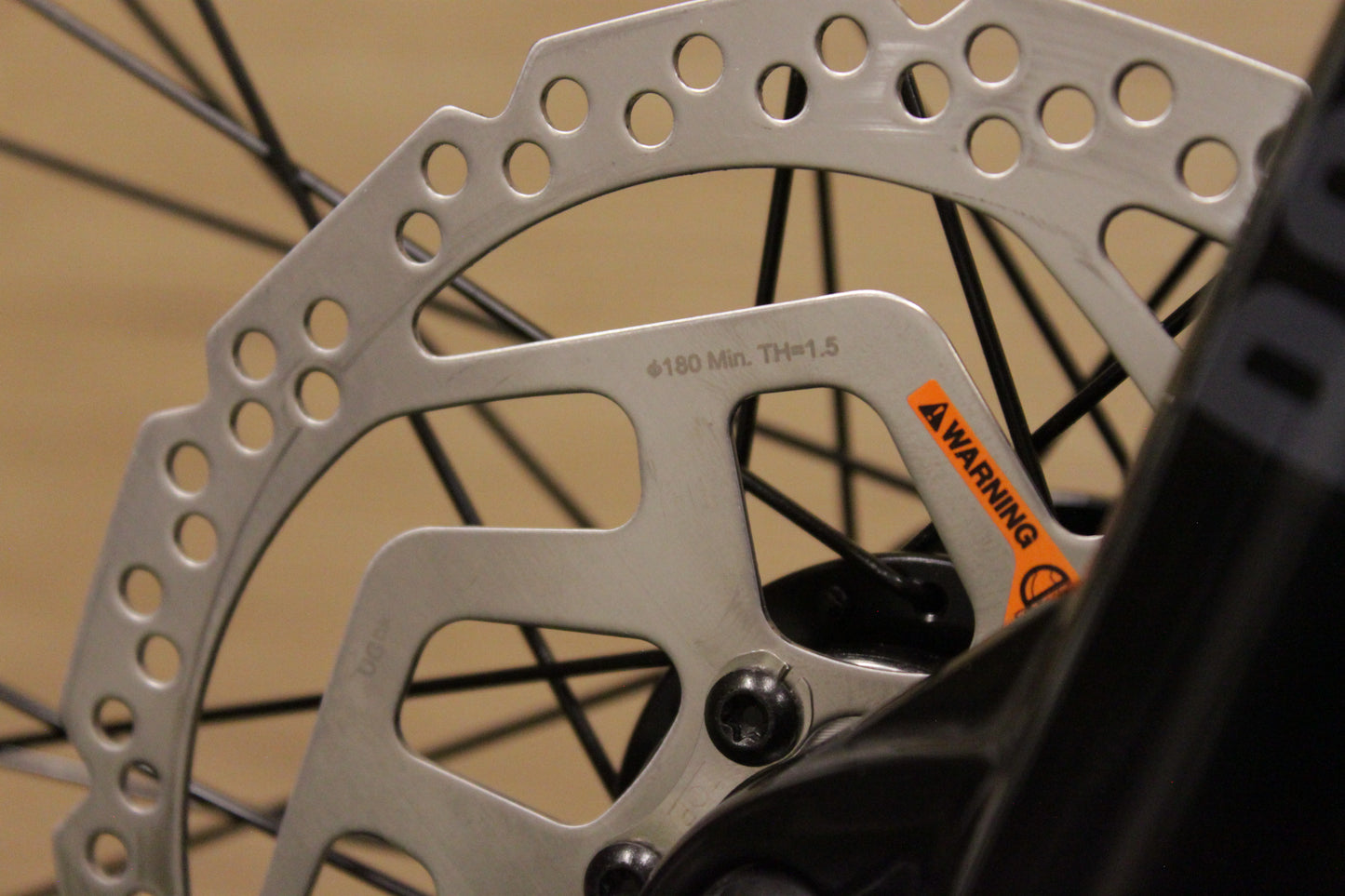

- Clarks M2 hydraulic disc brakes – Smooth and responsive brakes that represent awesome value

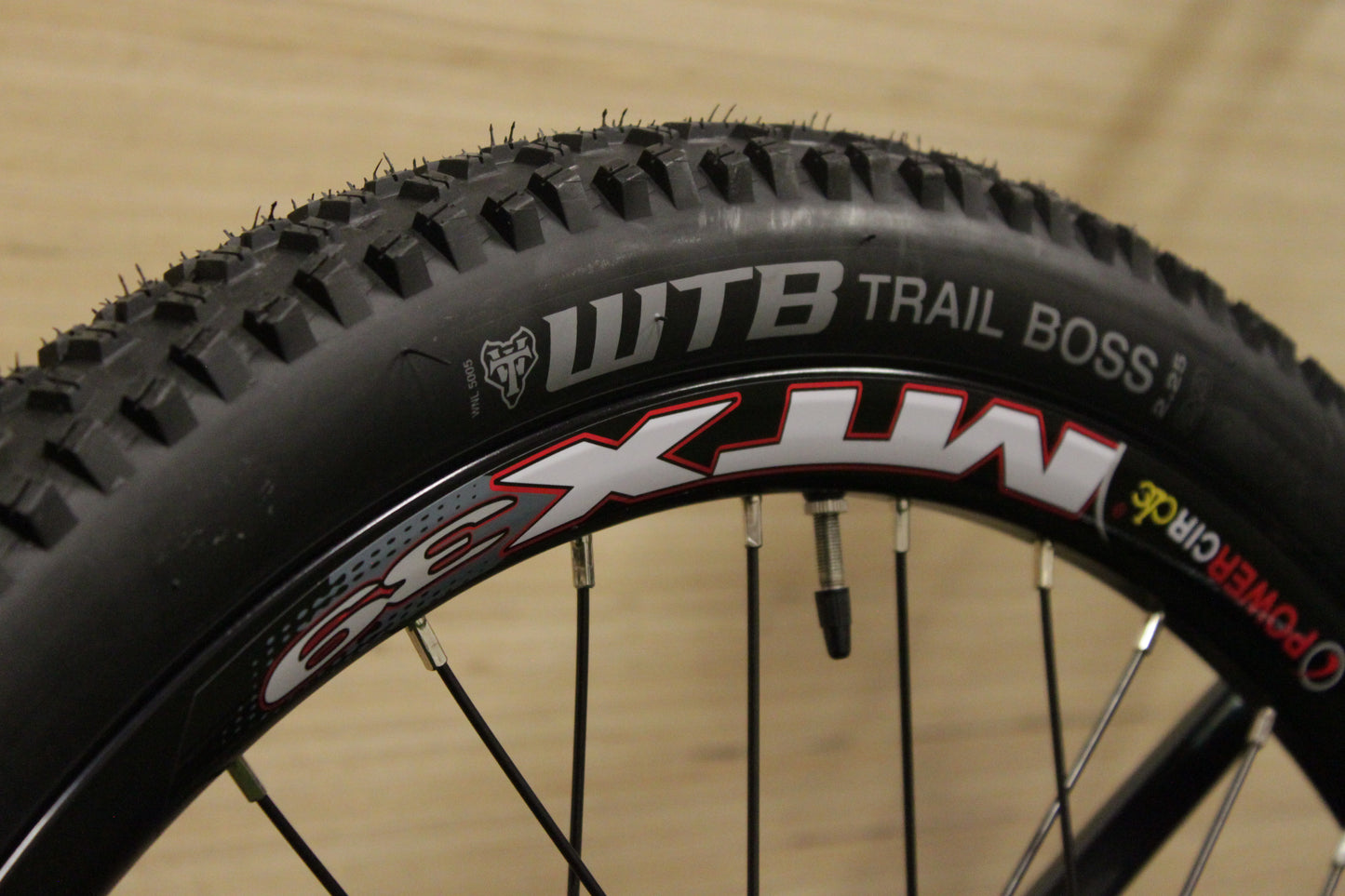

- WTB Trail Boss tyres– An all-round trail tyre that excels on loose and rocky surfaces

- Frame: Alu 6061 29”, 135 QR, Post-mount disc, 44mm headtube

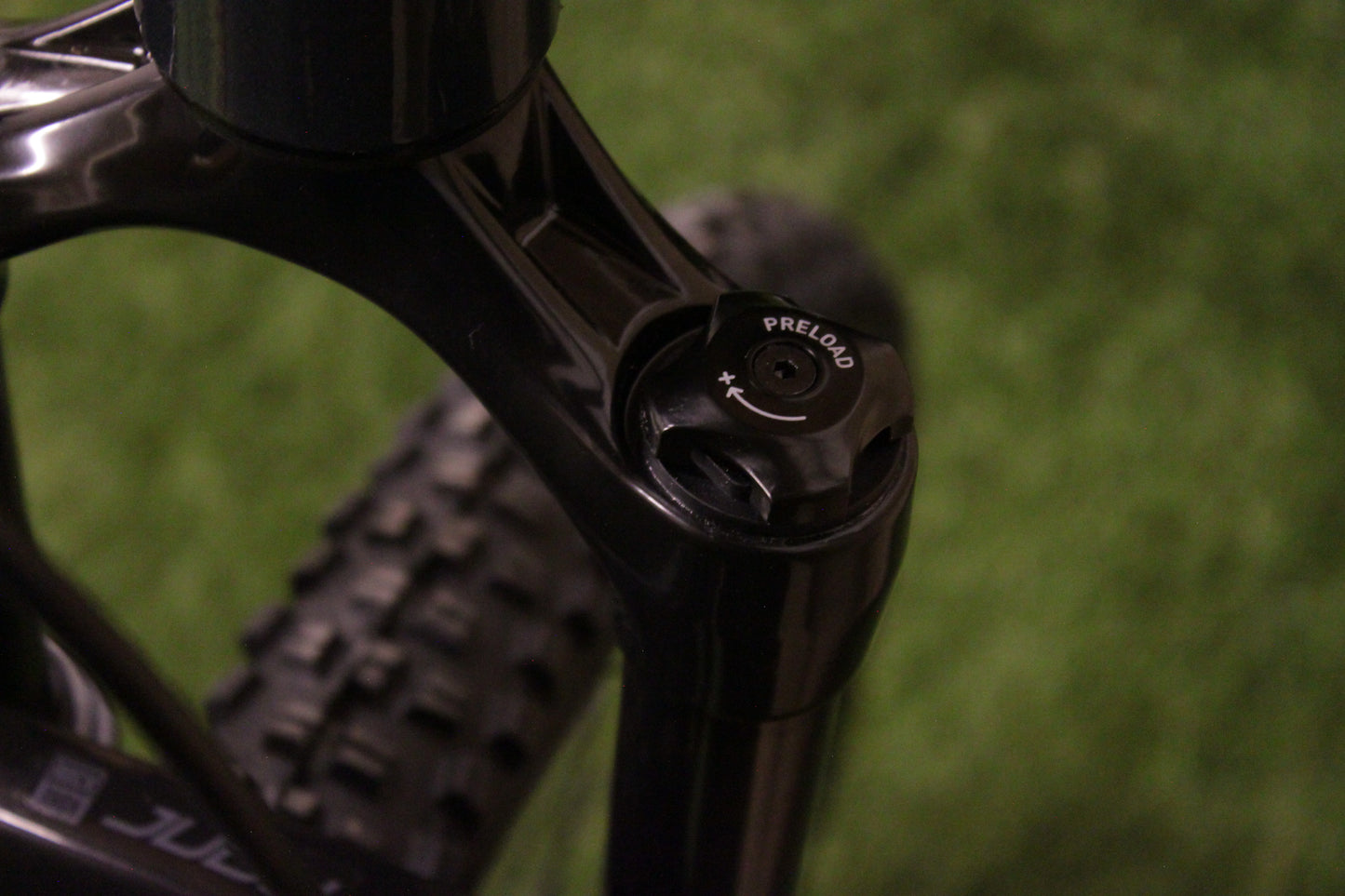

- Fork: RockShox FS-Judy TK 29 QR, Rebound adjust, 100mm travel

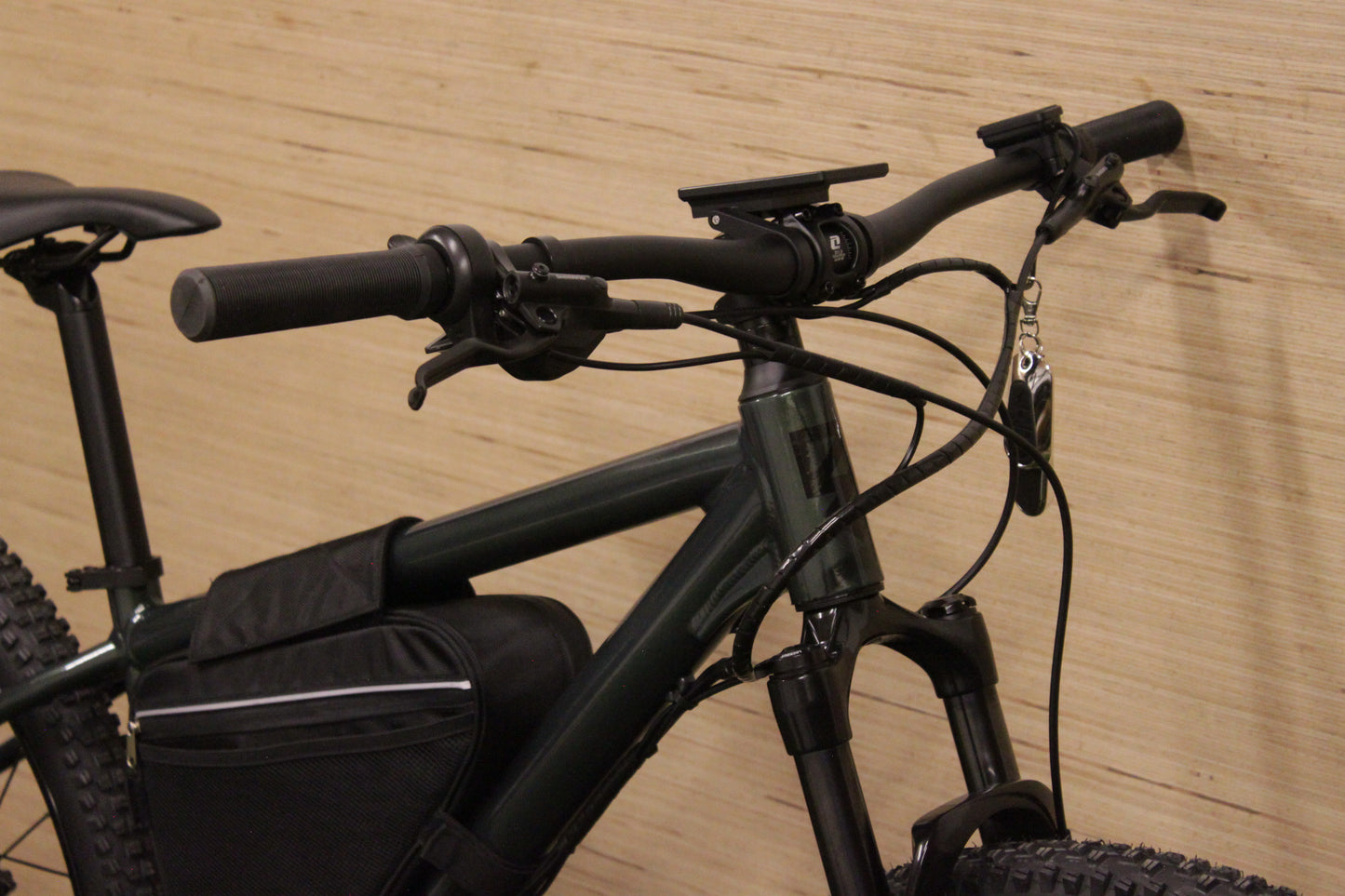

- Handlebar: Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp

- Stem: Calibre Trail, 31.8mm clamp, 45mm extension

- Grips: Calibre Trail, Single lock-on, soft compound, integrated bar end

- Headset: Semi-integrated, ZS44

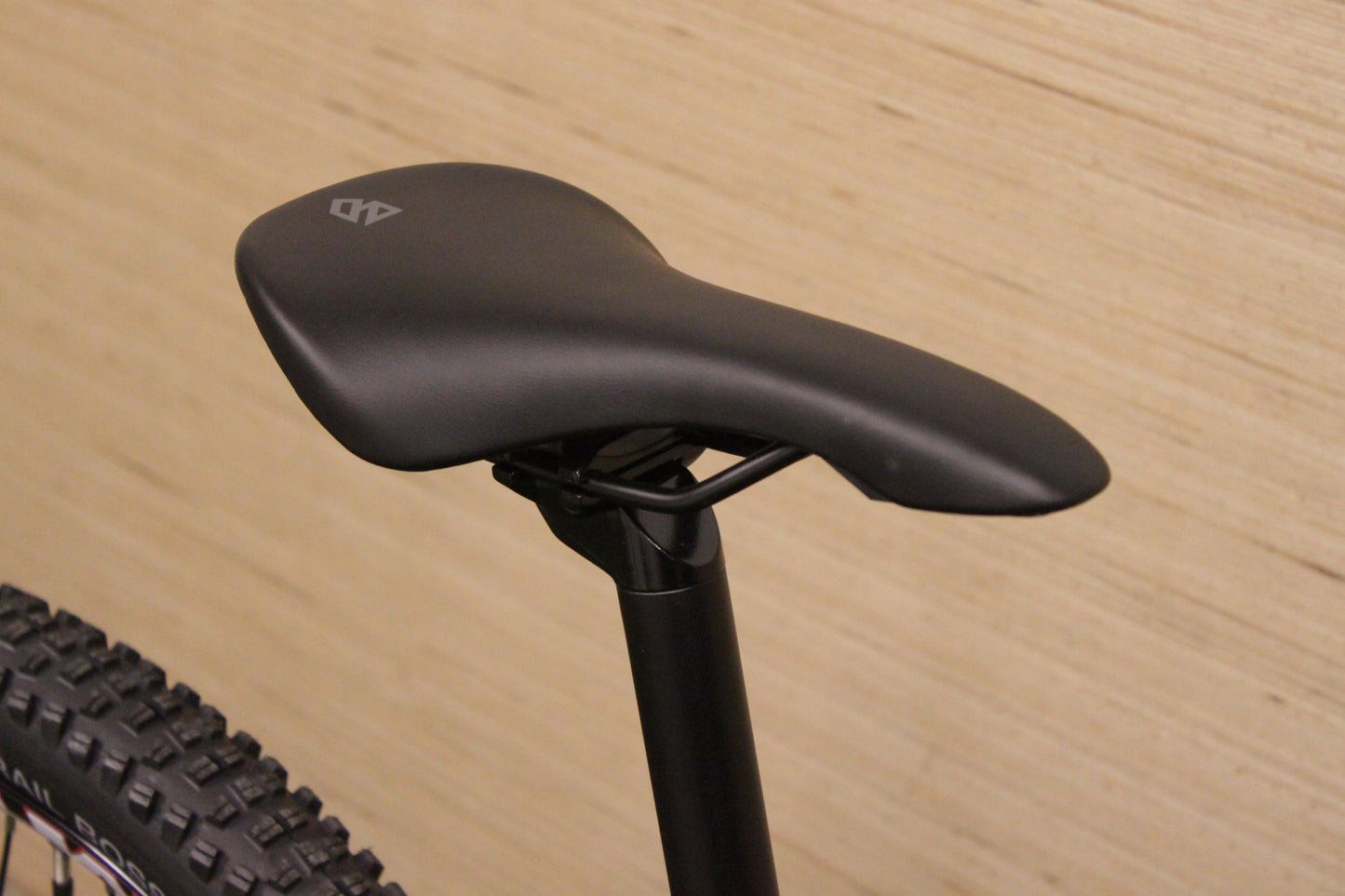

- Saddle: Calibre Trail, steel rails

- Seatpost: Calibre Trail 30.9 x 350mm

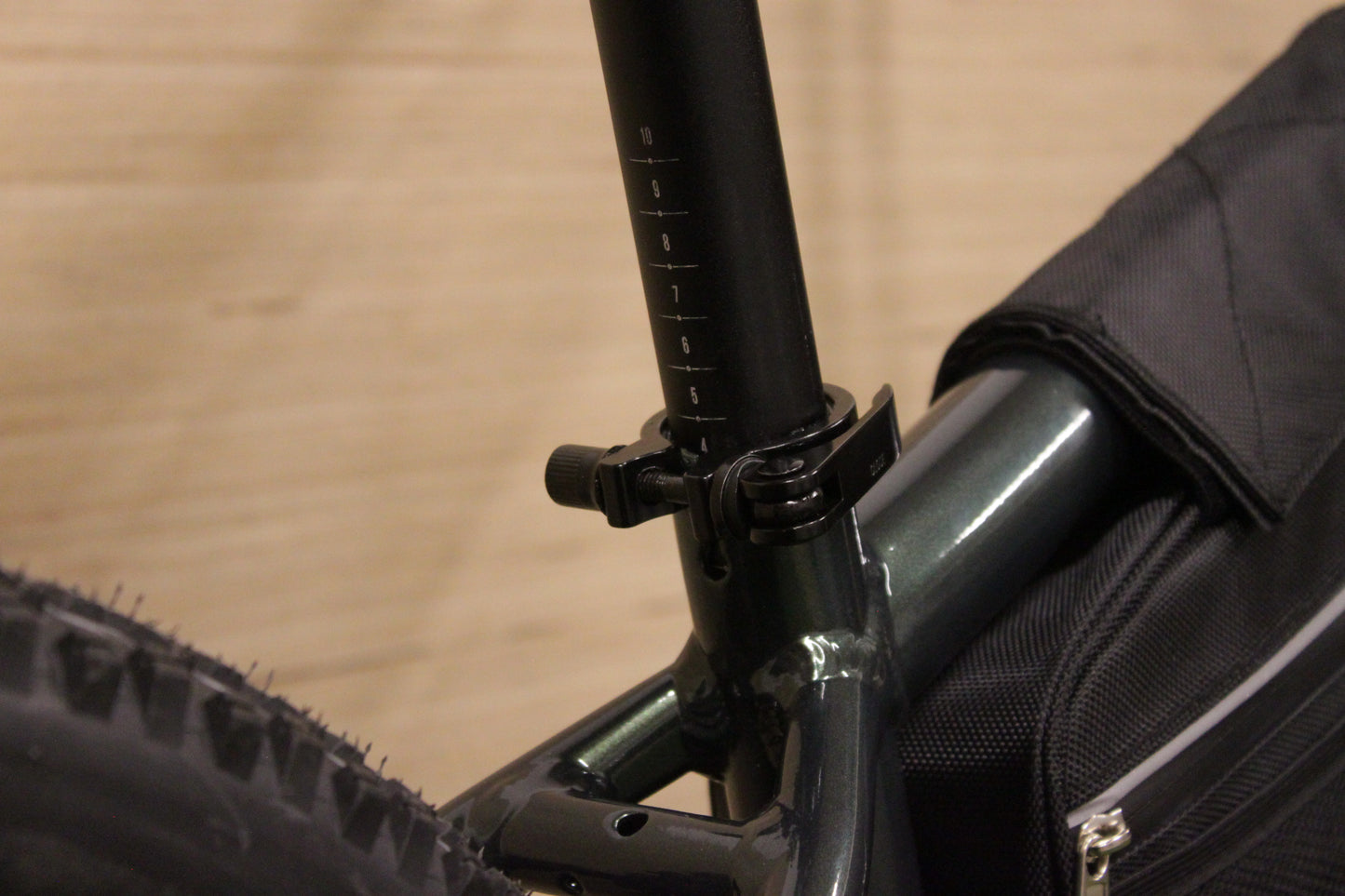

- Seatclamp: Calibre QR 34.9MM

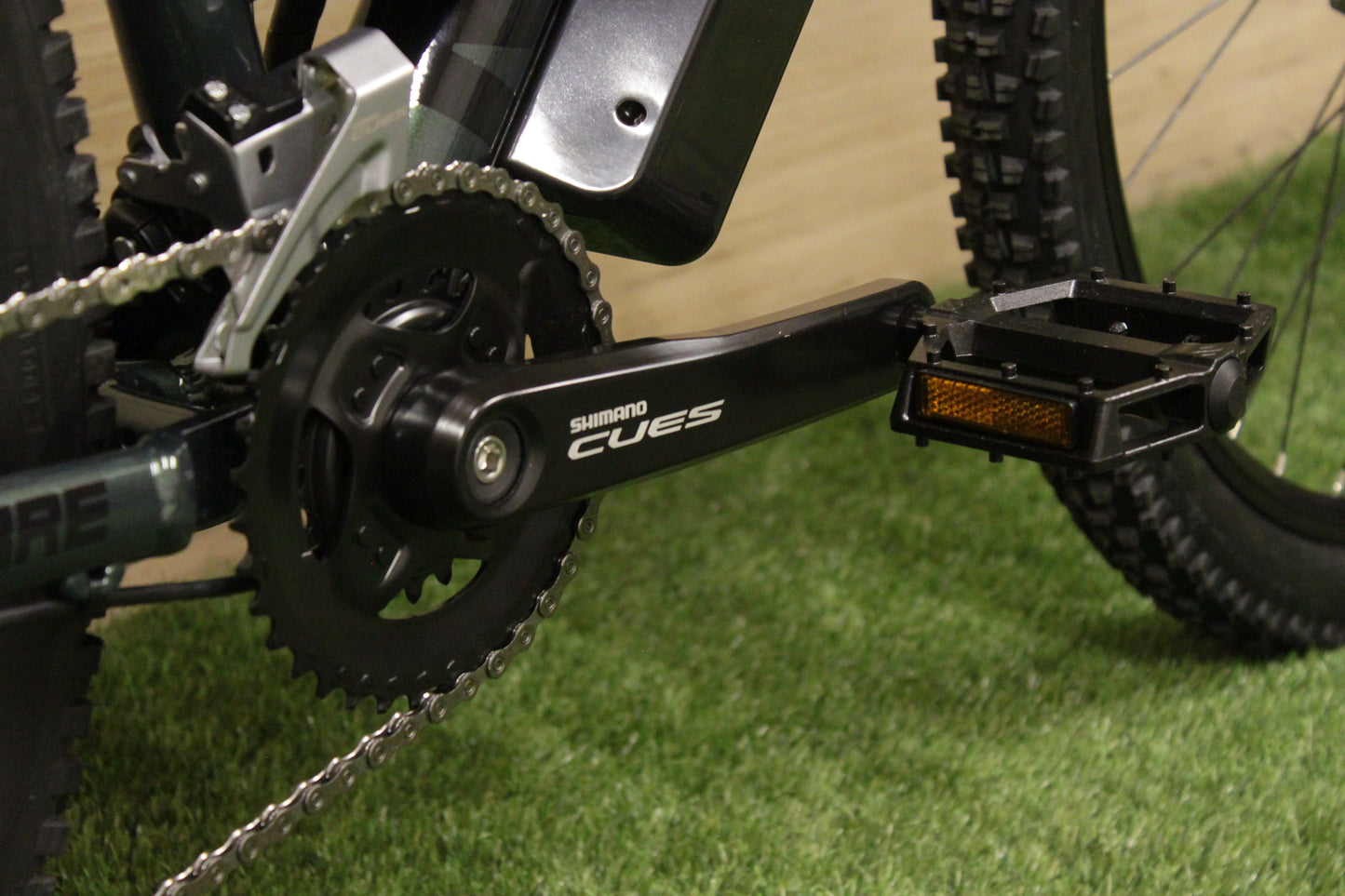

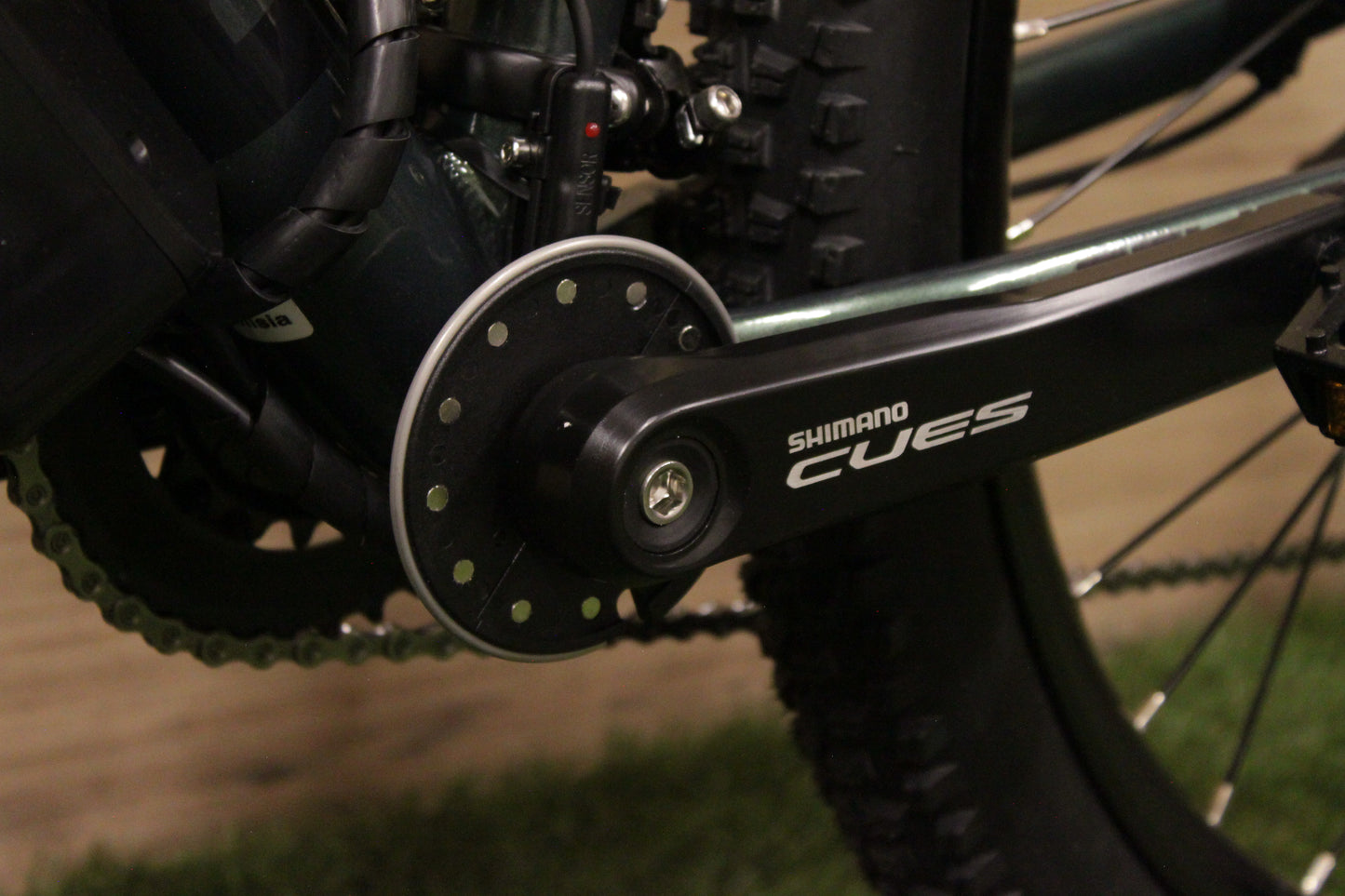

- Chrankset: Shimano Cues 175mm 36T

- Pedals: Flat pedals

- Bottom Bracket: Square taper 73mm BB

- Drivetrain: Shimano 9 speed

- Cassette: Shimano 9 speed Acera 11-36T

- Chain: KM X9

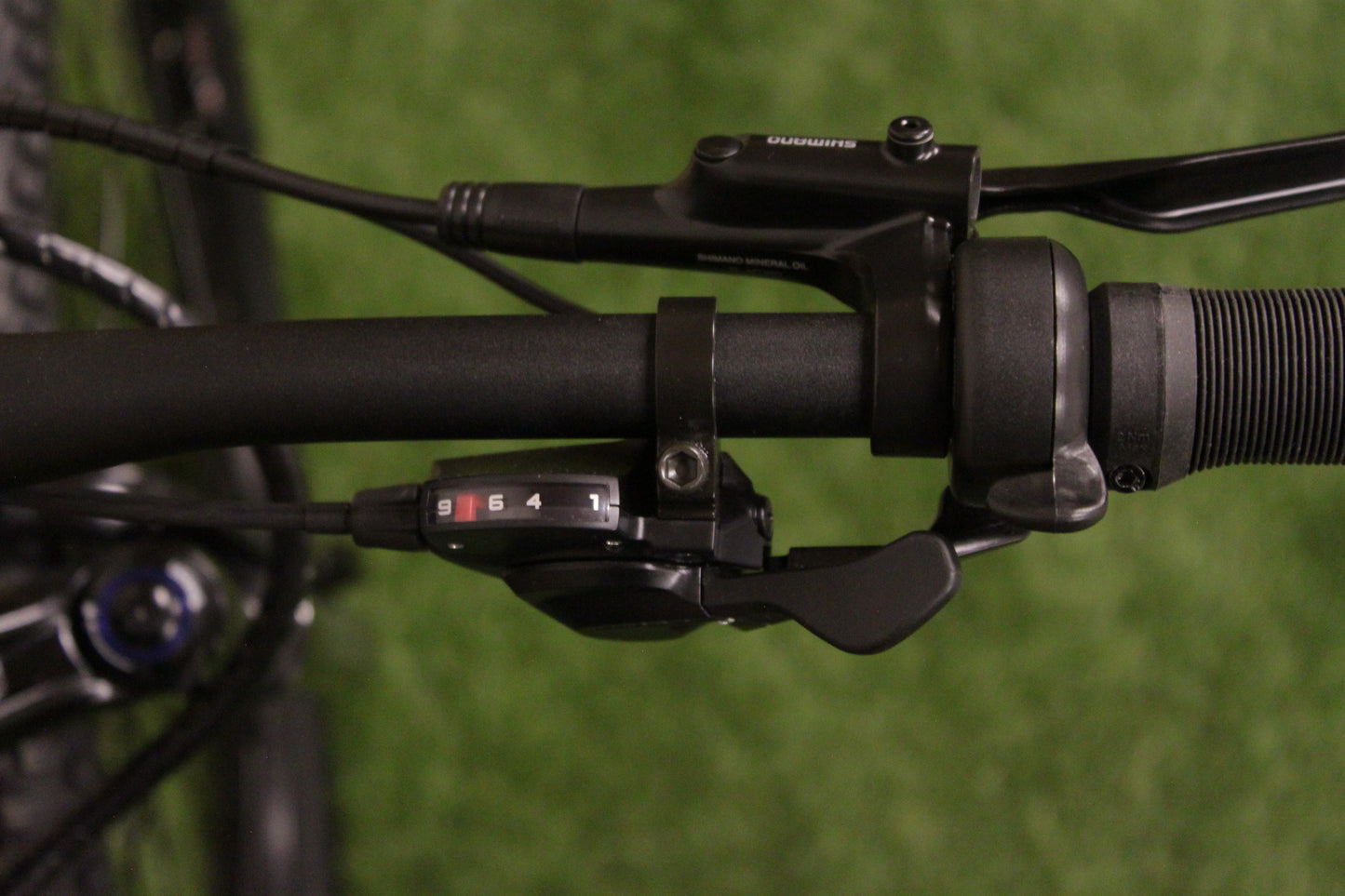

- Shifter Right: Shimano Cues 9 speed

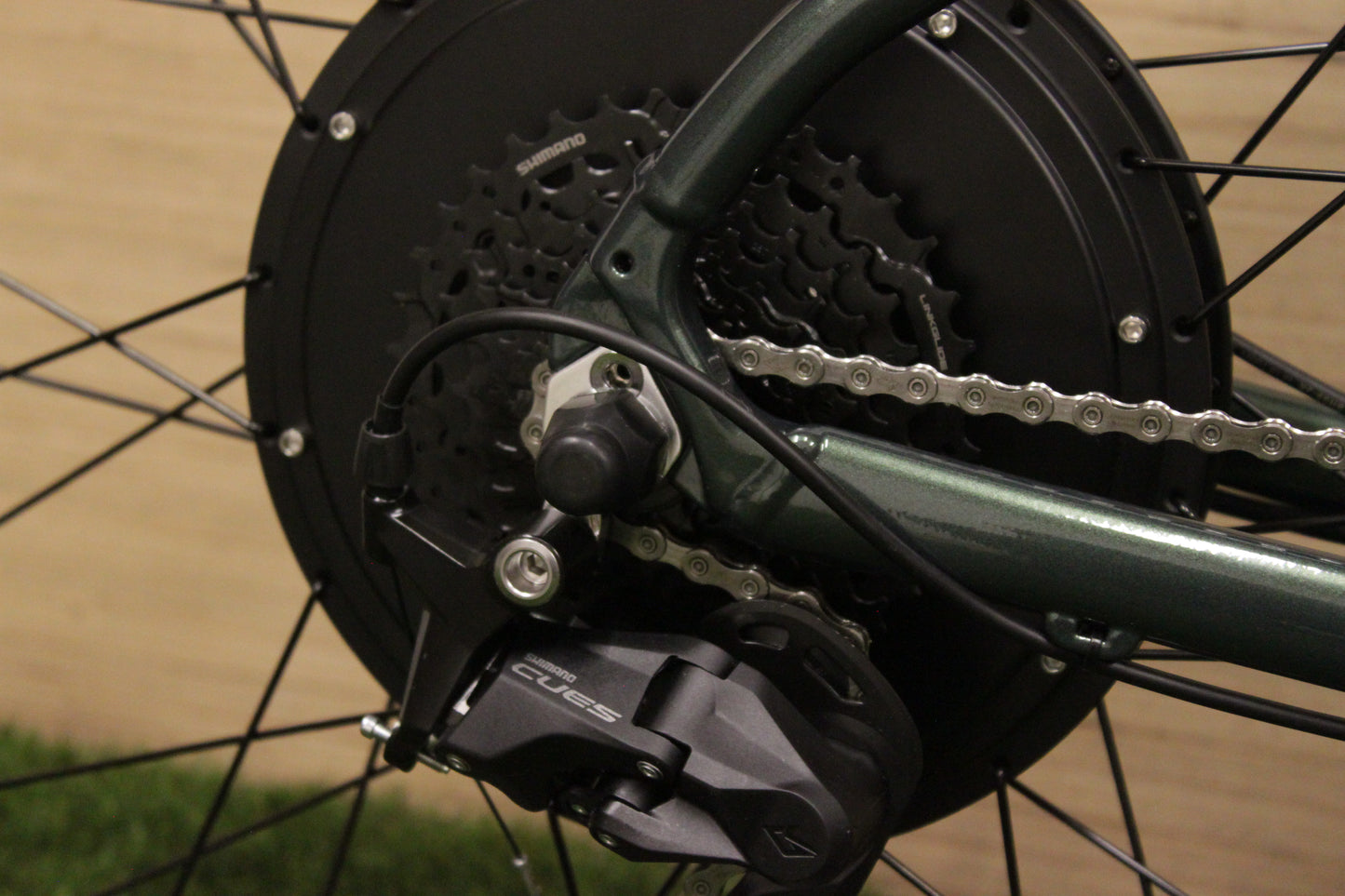

- Rear Derailleur: Shimano Cues 9 speed direct mount

Packaging:

This ebike arrives well packaged with minimal assembly time out the box (tools included). Attach the front quick release wheel, saddle, handlebar and pedals and it's ready to ride.

Not sure when you'll be in?

Our delivery drivers will call you prior to departure to ensure a delivery time that's suitable for you.

Please Note:

Battery must be fully charged prior to its first use.

Disclaimer:

By purchasing this e-bike, you acknowledge that you have reviewed the specific legal requirements for its use under UK law, including Government guidance on electric bike (EAPC) rules. You agree that Ebike Converters Limited bears no liability for any legal consequences, fines, or accidents resulting from the use of this vehicle, particularly if it is operated on public roads while failing to meet EAPC standards. You assume full responsibility for ensuring the bike is maintained safely and used in compliance with all local regulations.
