Free UK delivery!

Available in 2 Options:

-36V 28AH 1008WH 900W

-48V 25AH 1200WH 1200W

(Volts = Speed / AH = Range / WH = Battery Capacity / W = Power)

Basic information:

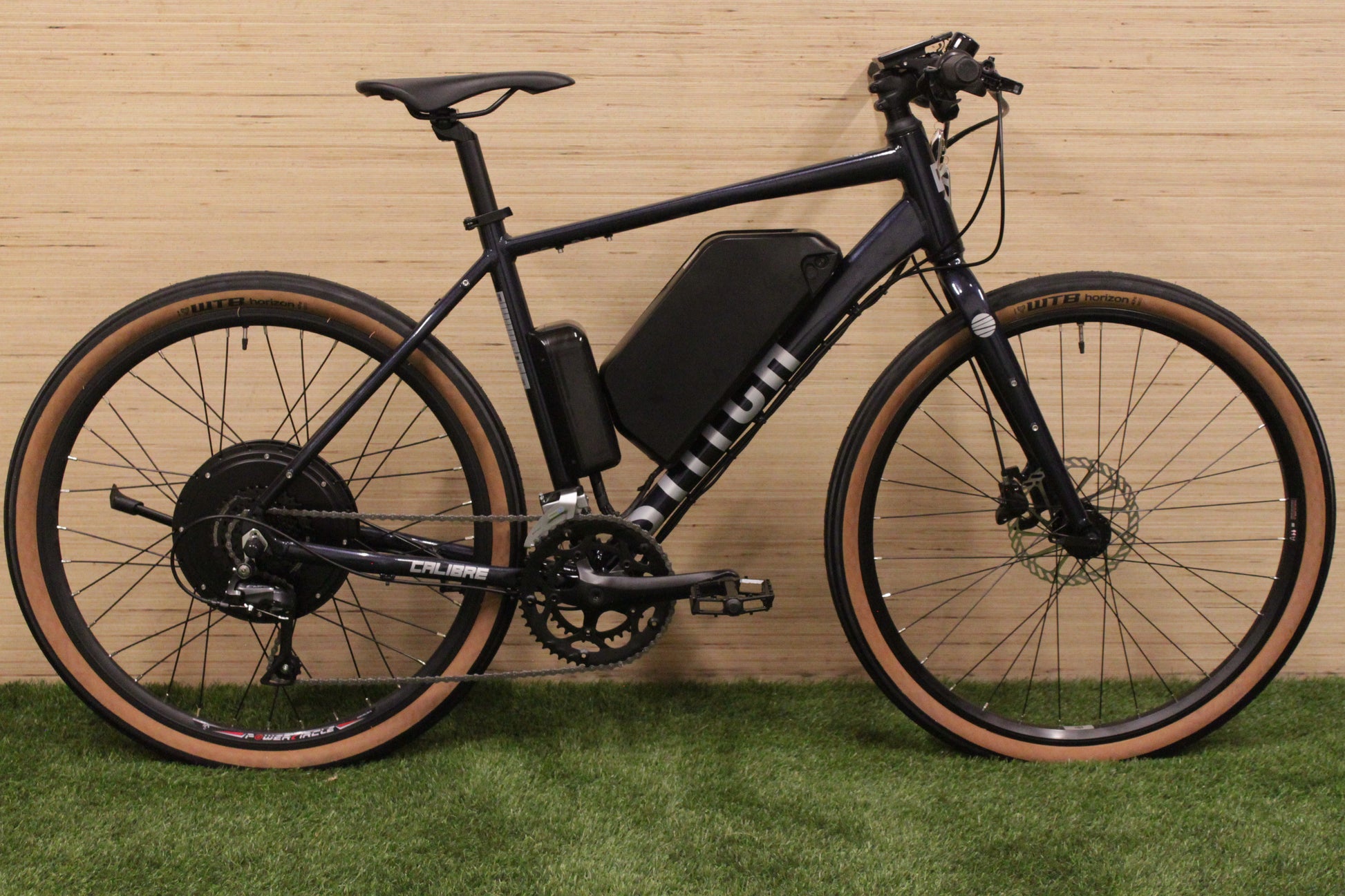

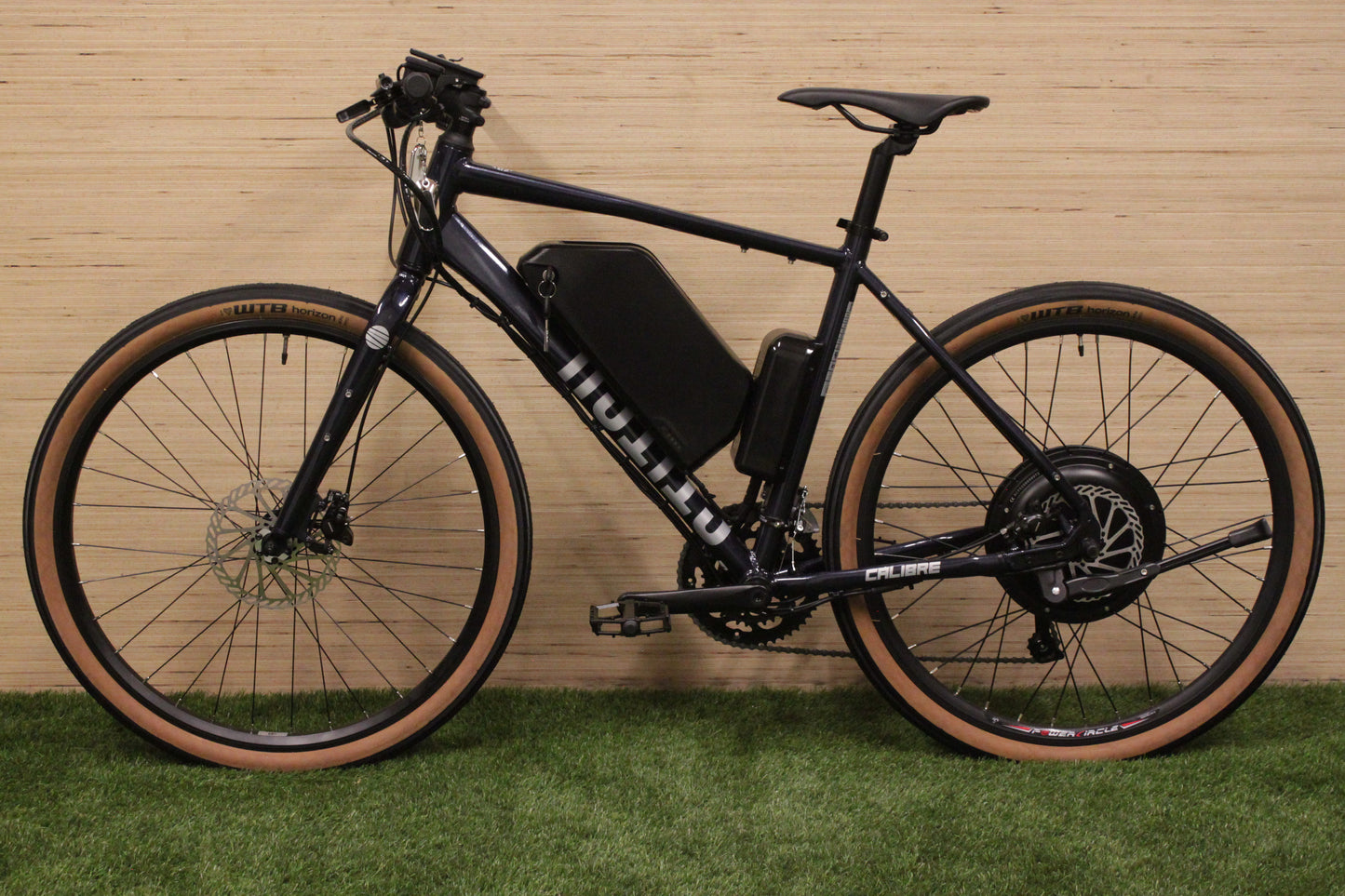

Make: Caliber

Model: Stitch

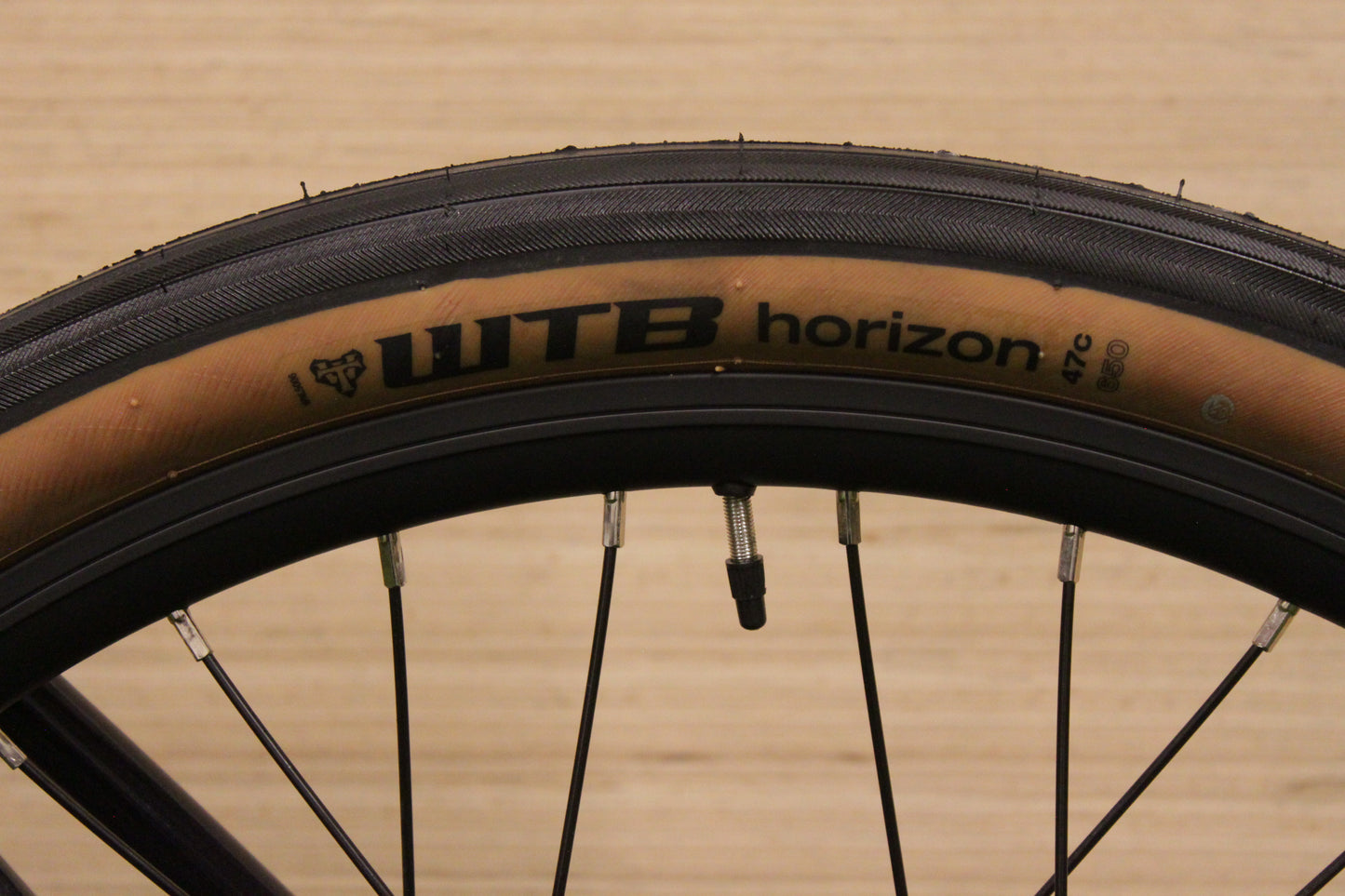

Wheel Size: 27.5"

Colour: Navy Blue

Features:

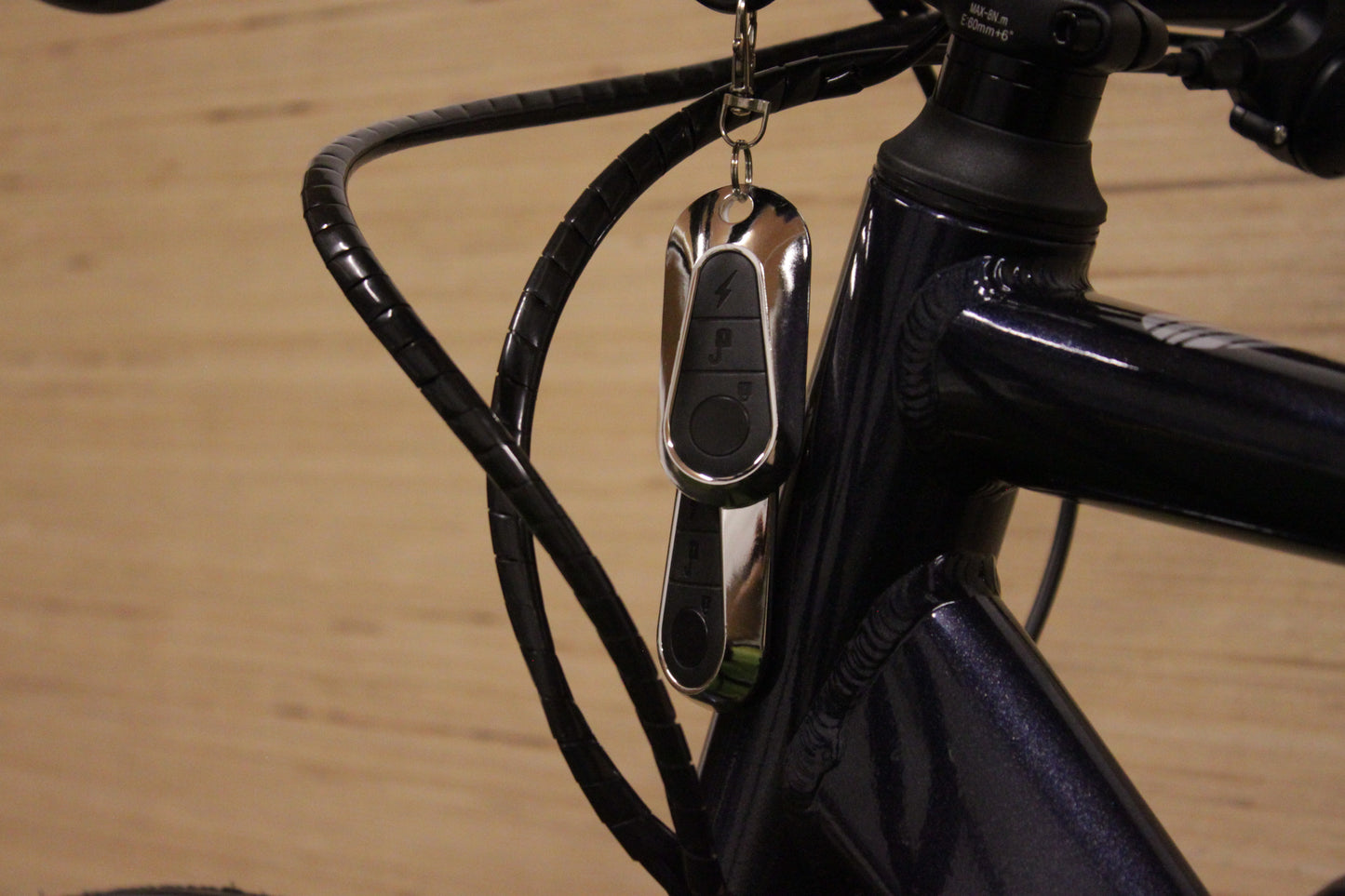

- Alarm System With Automatic Wheel Locking Technology

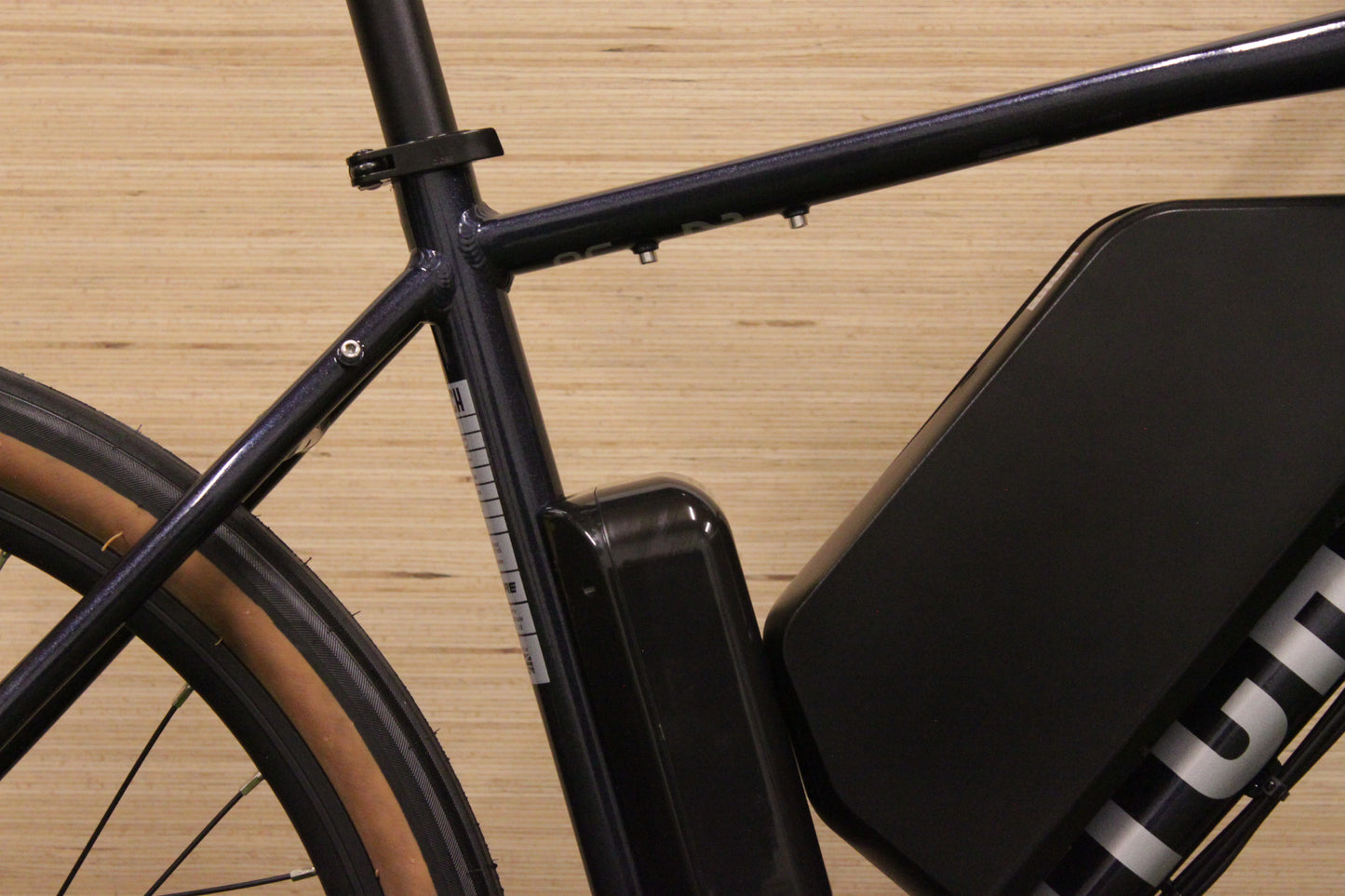

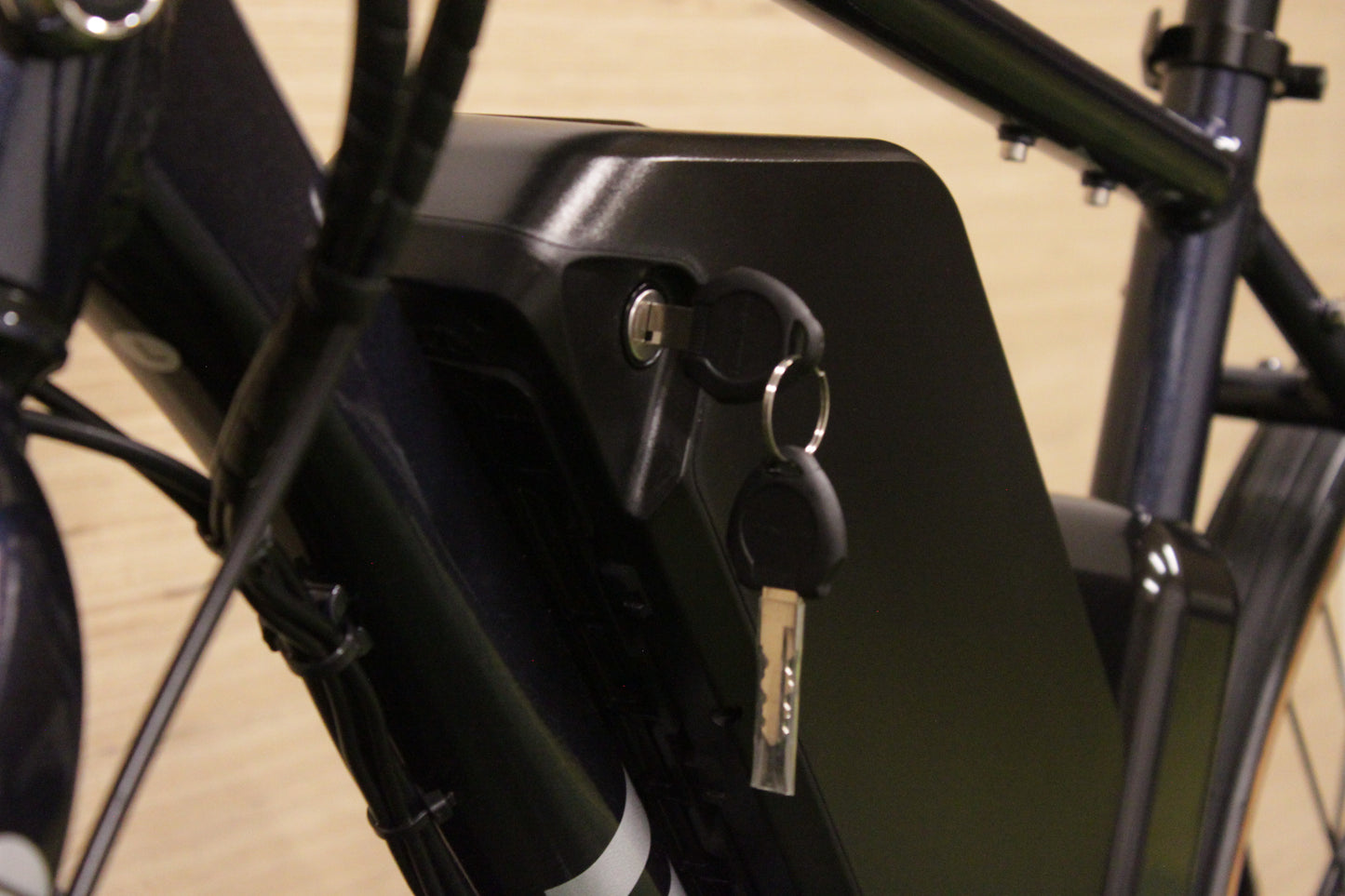

- Detachable and Lockable Battery

- Powerful Self Adjusting Hydraulic Brakes

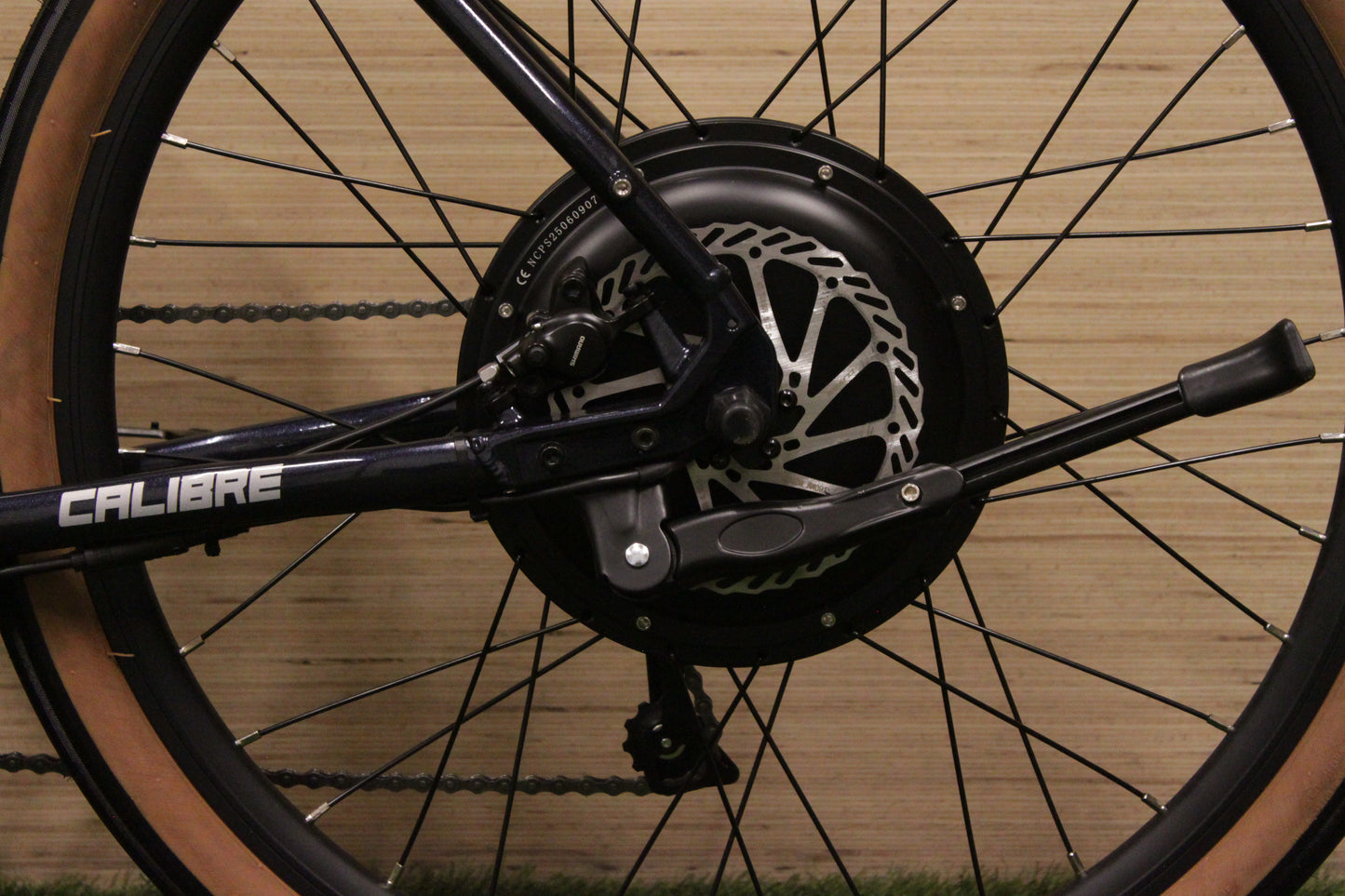

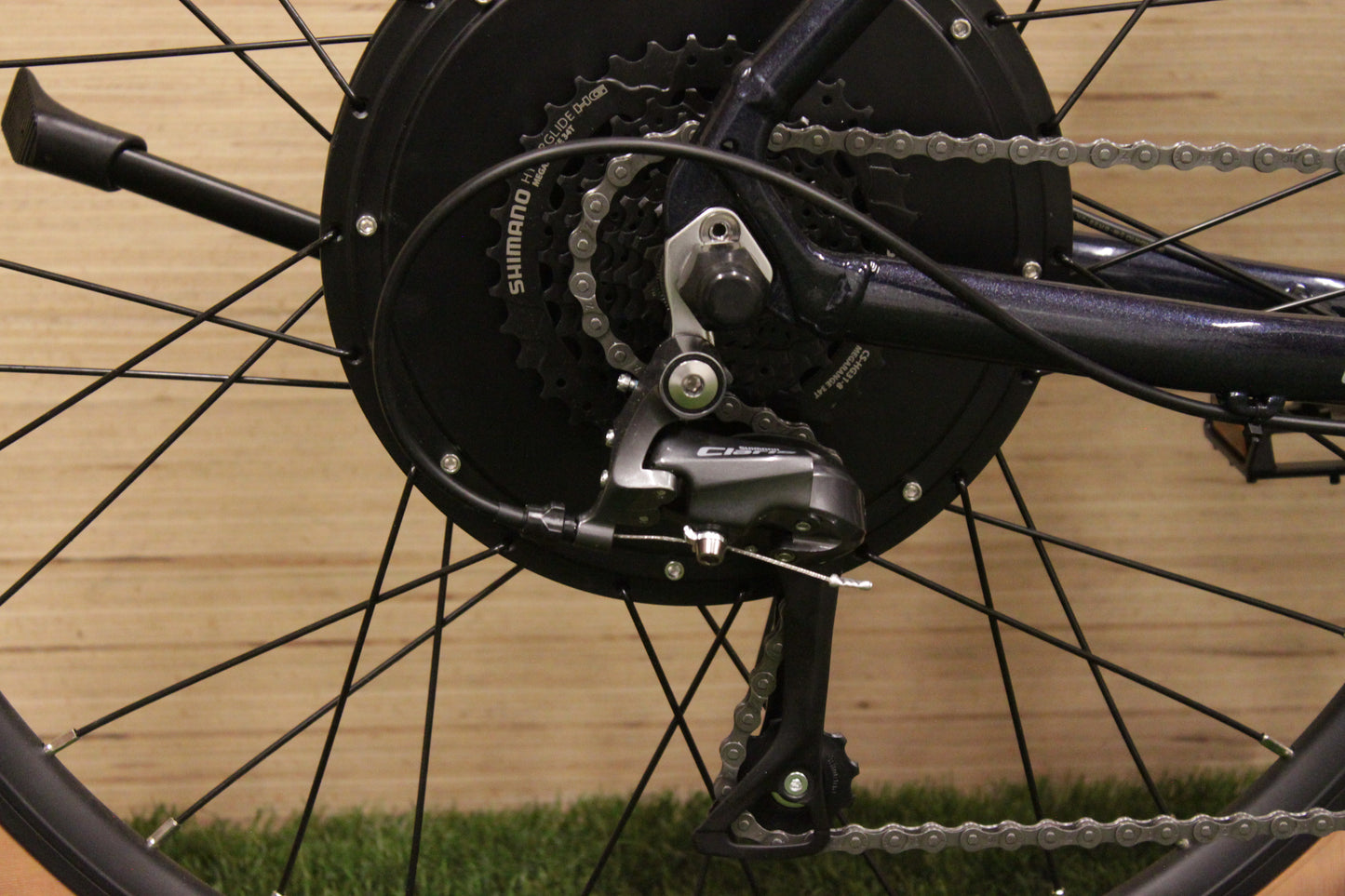

- Powerful Direct Drive Rear Hub Motor

- 100% Silent and smooth ride

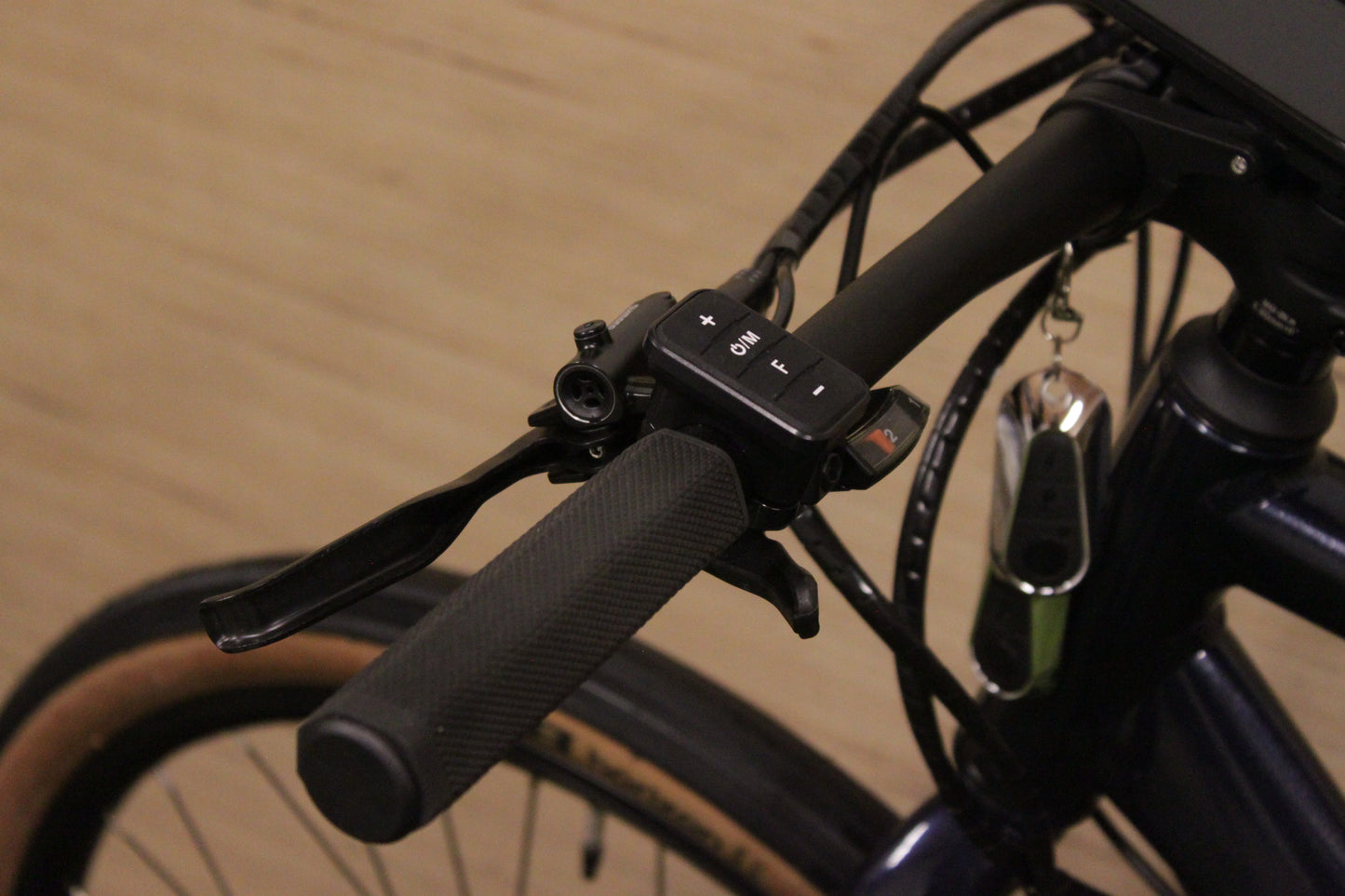

- Thumb Throttle and up to 9 Pedal Assist Modes

- Disconnect-able Motor Wheel

- Kickstand

Electrical Specification:

Power: 36V-900W / 48V-1200W

Battery Voltage: 36V / 48V

Battery Type: Polly (5 Pin)

Range: 36V - 50 Miles / 48V 60 Miles (in ideal riding conditions)

Ride modes: Thumb Throttle and/or 9 Pedal Assist Modes

Charge time: 5-6 hours

Top speed: 36V-28MPH/48V-34MPH (in ideal riding conditions)

Controller: Sine Wave 25A

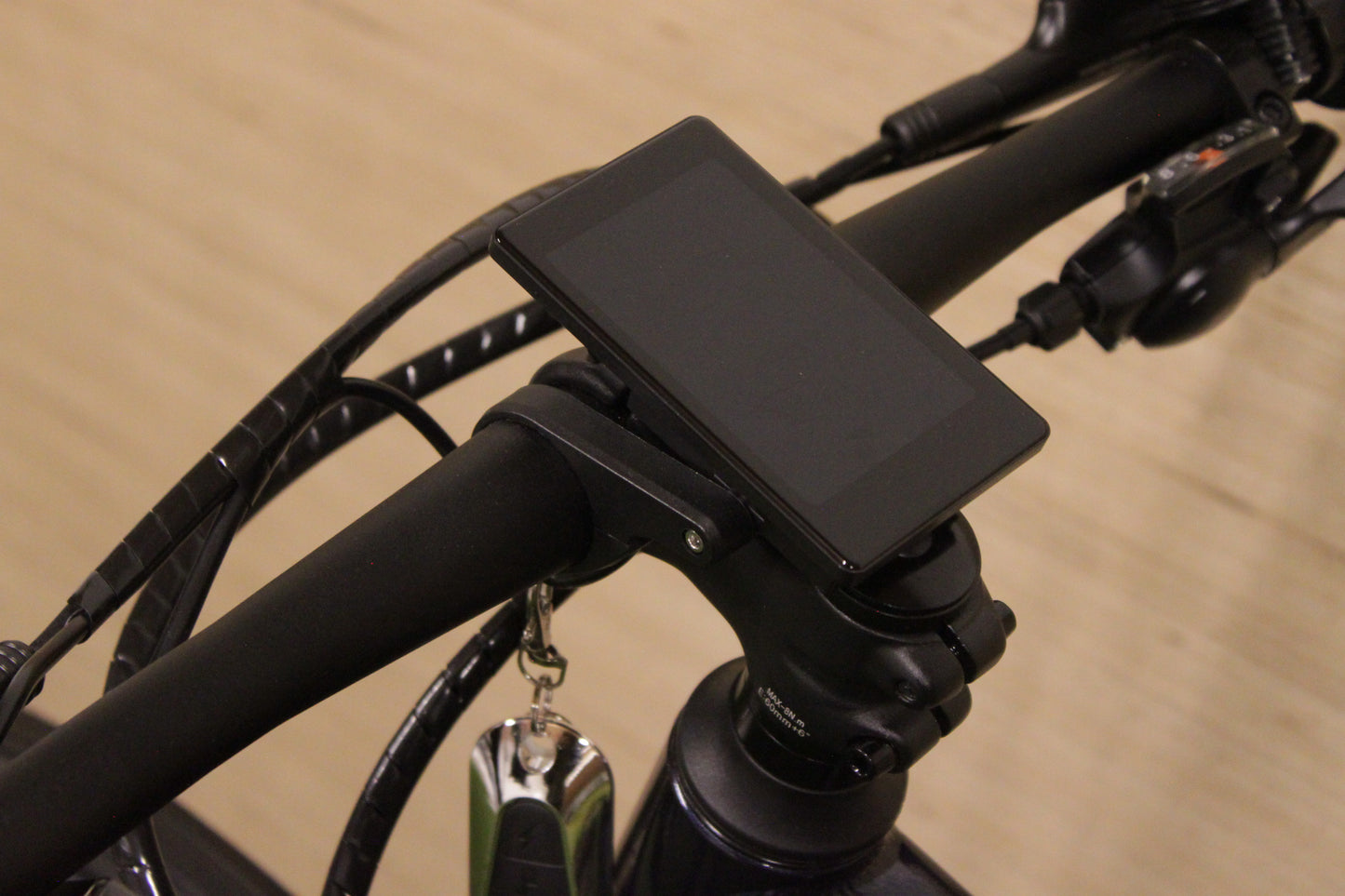

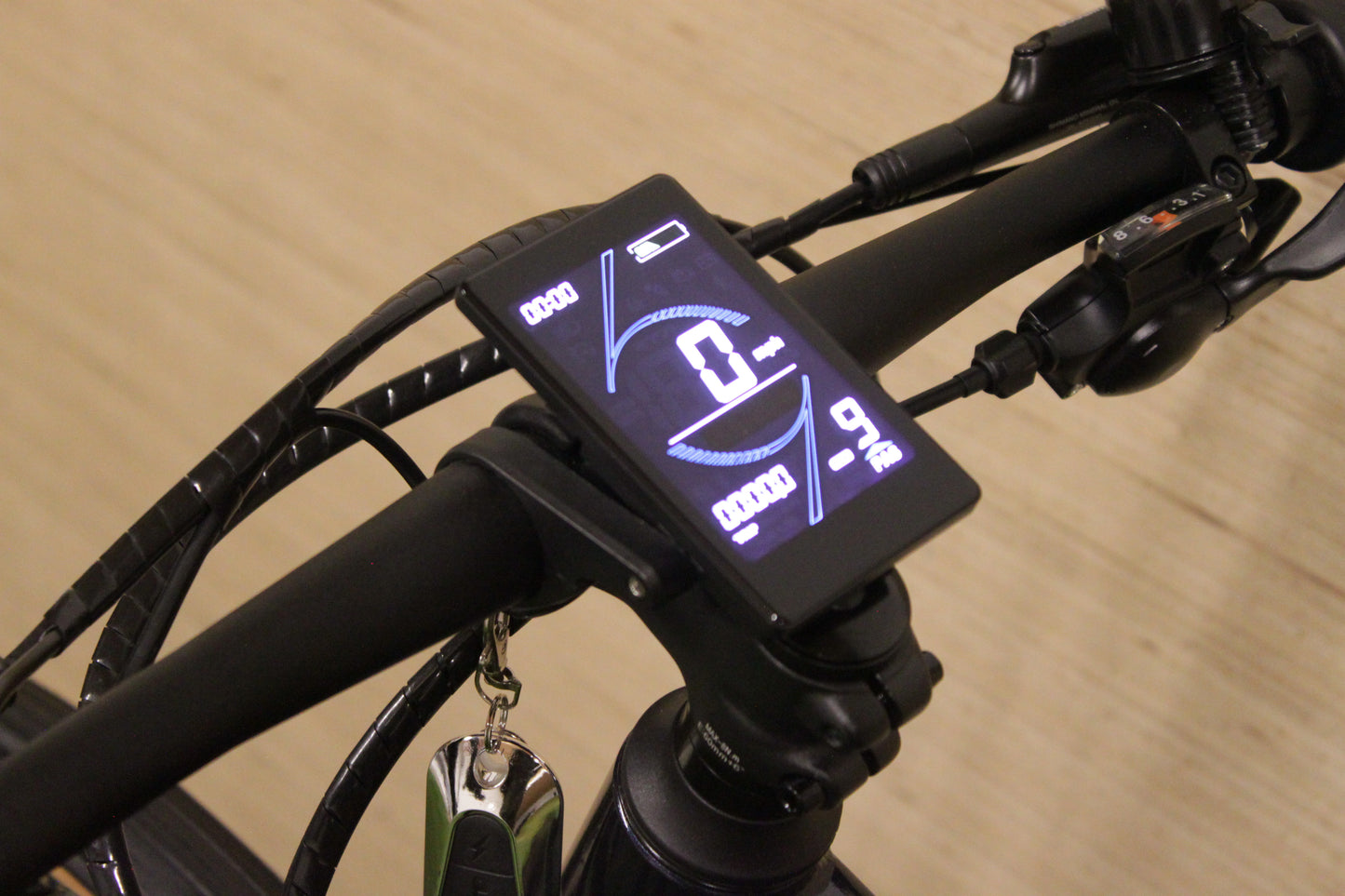

Display model: T5S (colour screen)

Display Features: Current/Average/Top speed, Voltage, Battery Percentage

Charger: 3A charger DC5521 (UK Plug)

Includes: 2X Battery Keys and 2X Alarm keys

Mechanical Specification:

Frame:Alu 6061, 27.5”, 135 QR, Post-mount disc, 44mm headtube

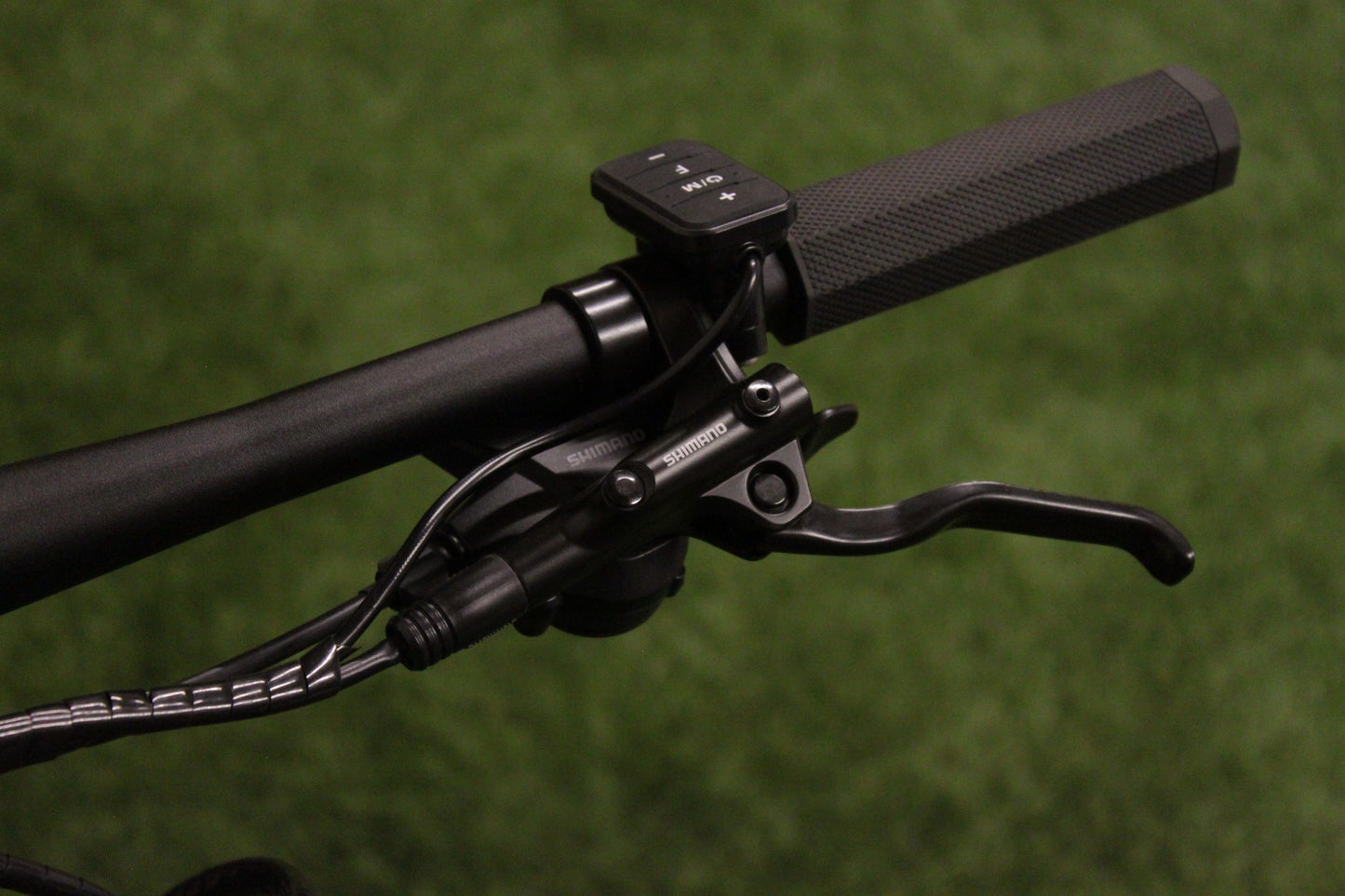

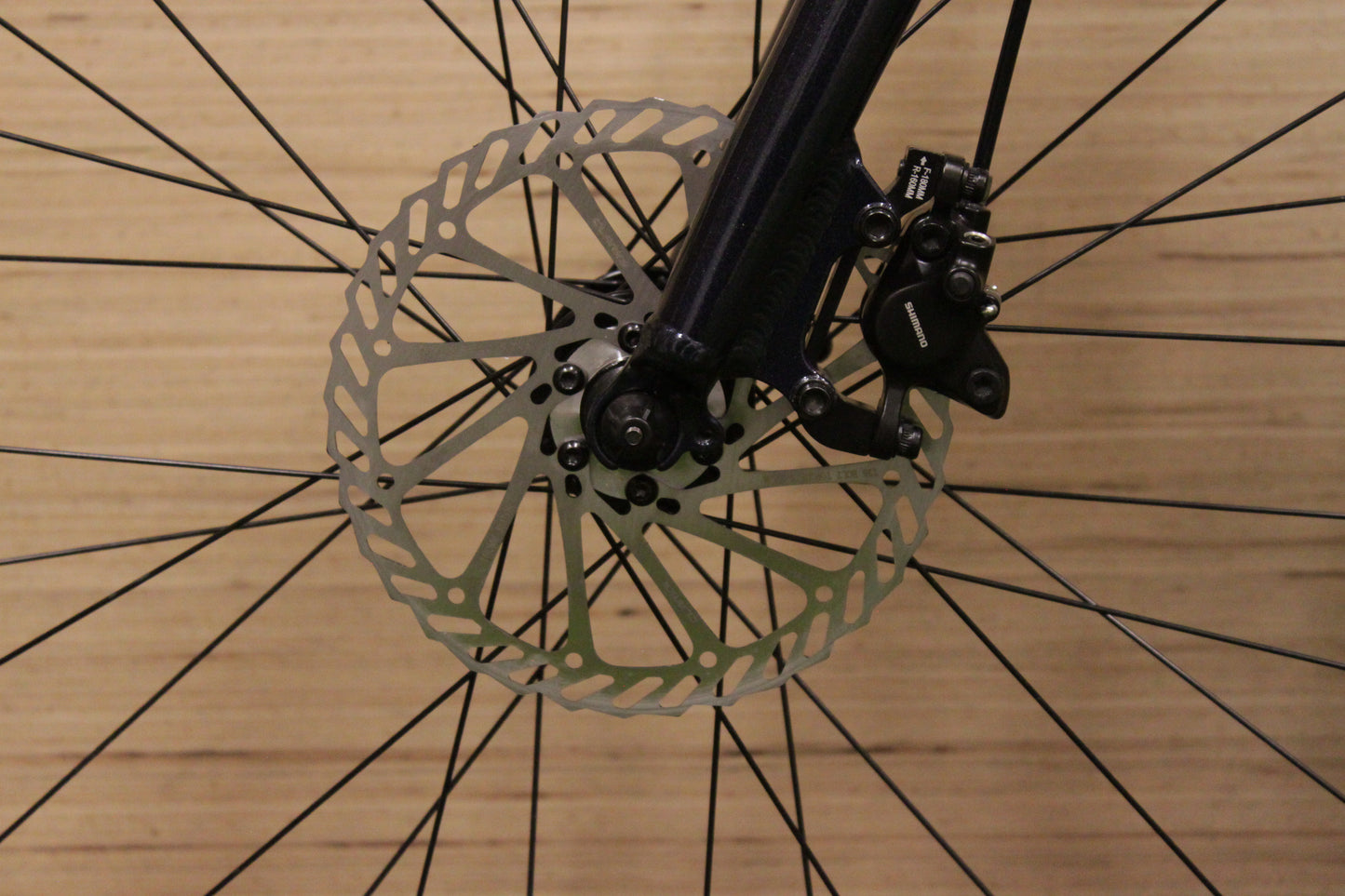

Brakes:Hydraulic MineralShimano MT200 F-180/R-160

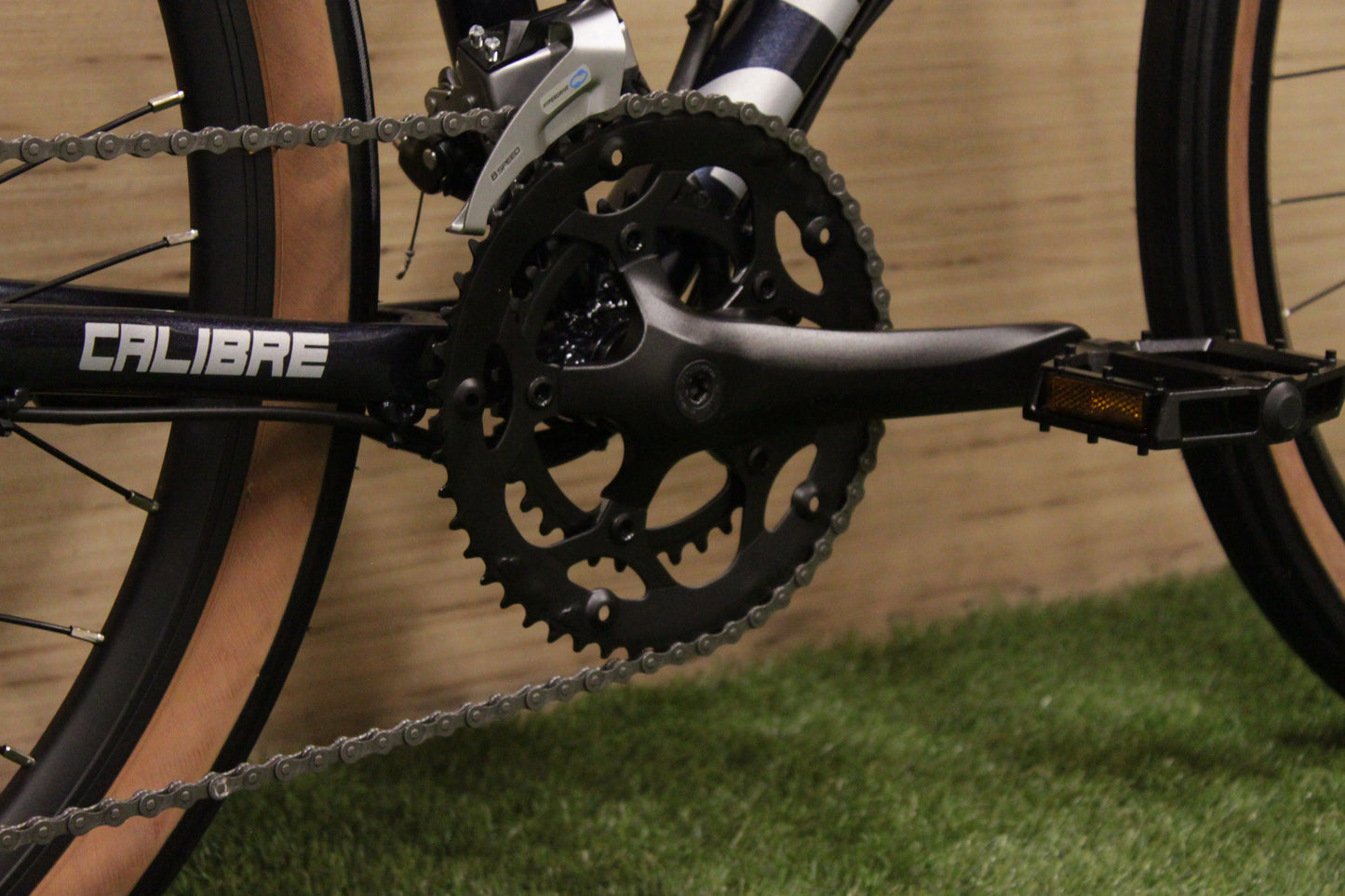

Chainset: Calibre 170mm crank, 50x34 chainring

Cassette:Shimano 8 speed, 11 - 34

Forks:Alu 6061, 100mm QR, IS disc mount, rack  mudguard mounts, 28.6mm steerer, 50mm offset, 410 A2C

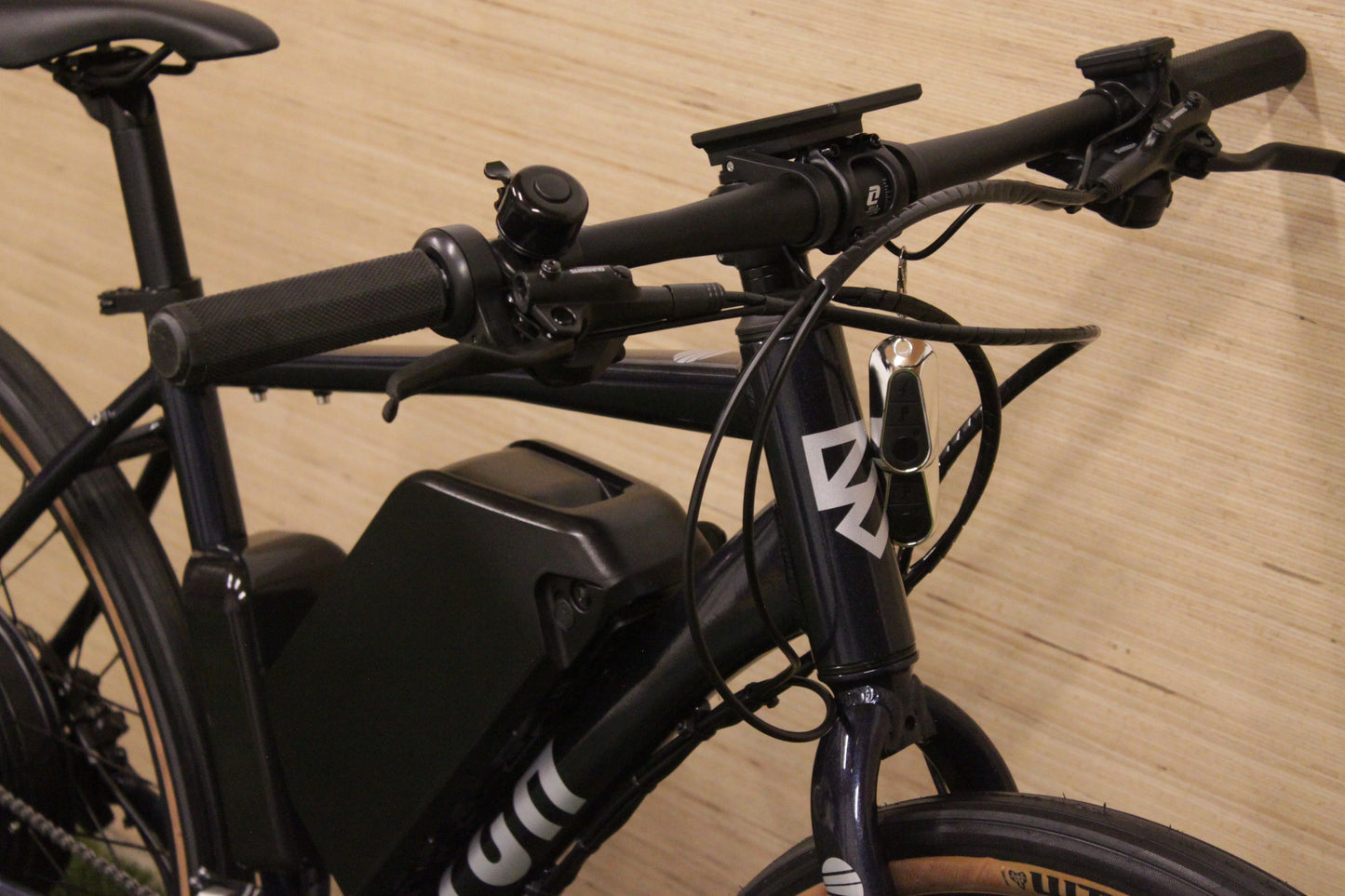

Handlebar:Calibre flat bar 720mm wide

Stem:Calibre Trail, 31.8mm clamp, 60mm extension

Grips:Black soft rubber hex grips

Headset:Semi-integrated, ZS44

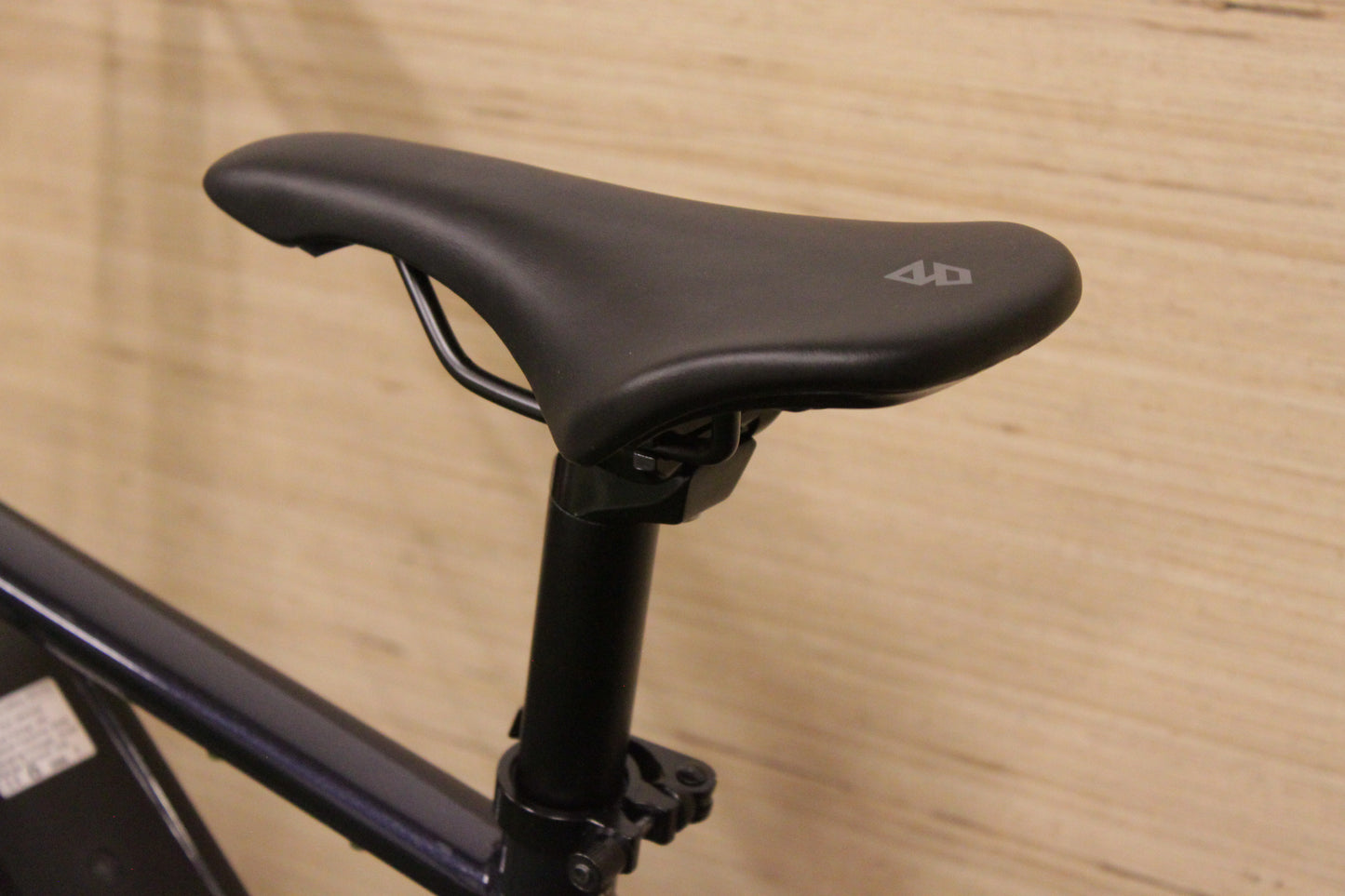

Saddle:Calibre Trail, steel rails

Seatpost: Calibre Trail 30.9 x 350mm

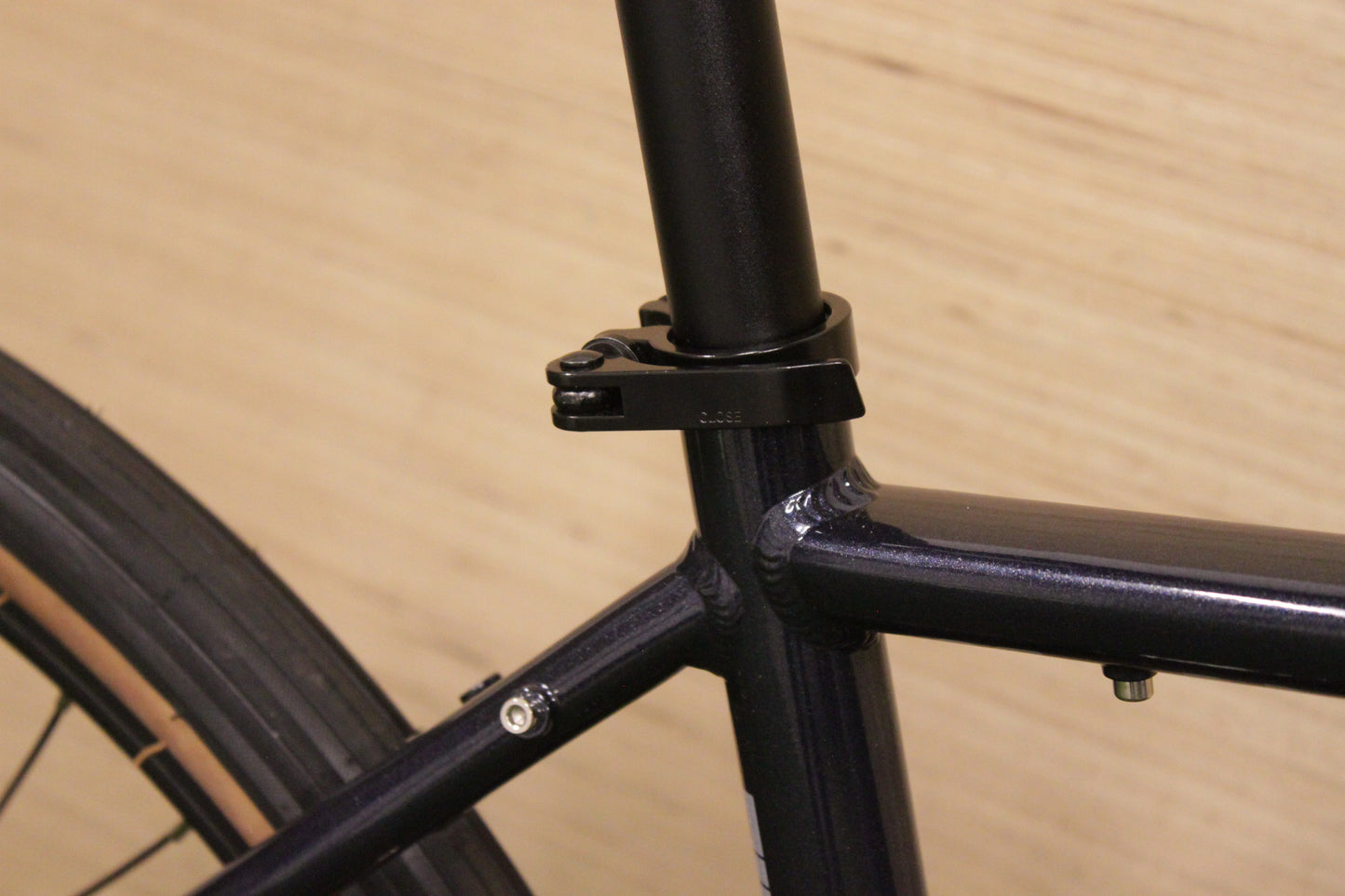

Seat clamp: Calibre Quick Release 34.9MM

Pedals:Flat pedals

Bottom Bracket: External 73mm BB

Drivetrain:Shimano Claris 16 speed

Chain:KMC Z8

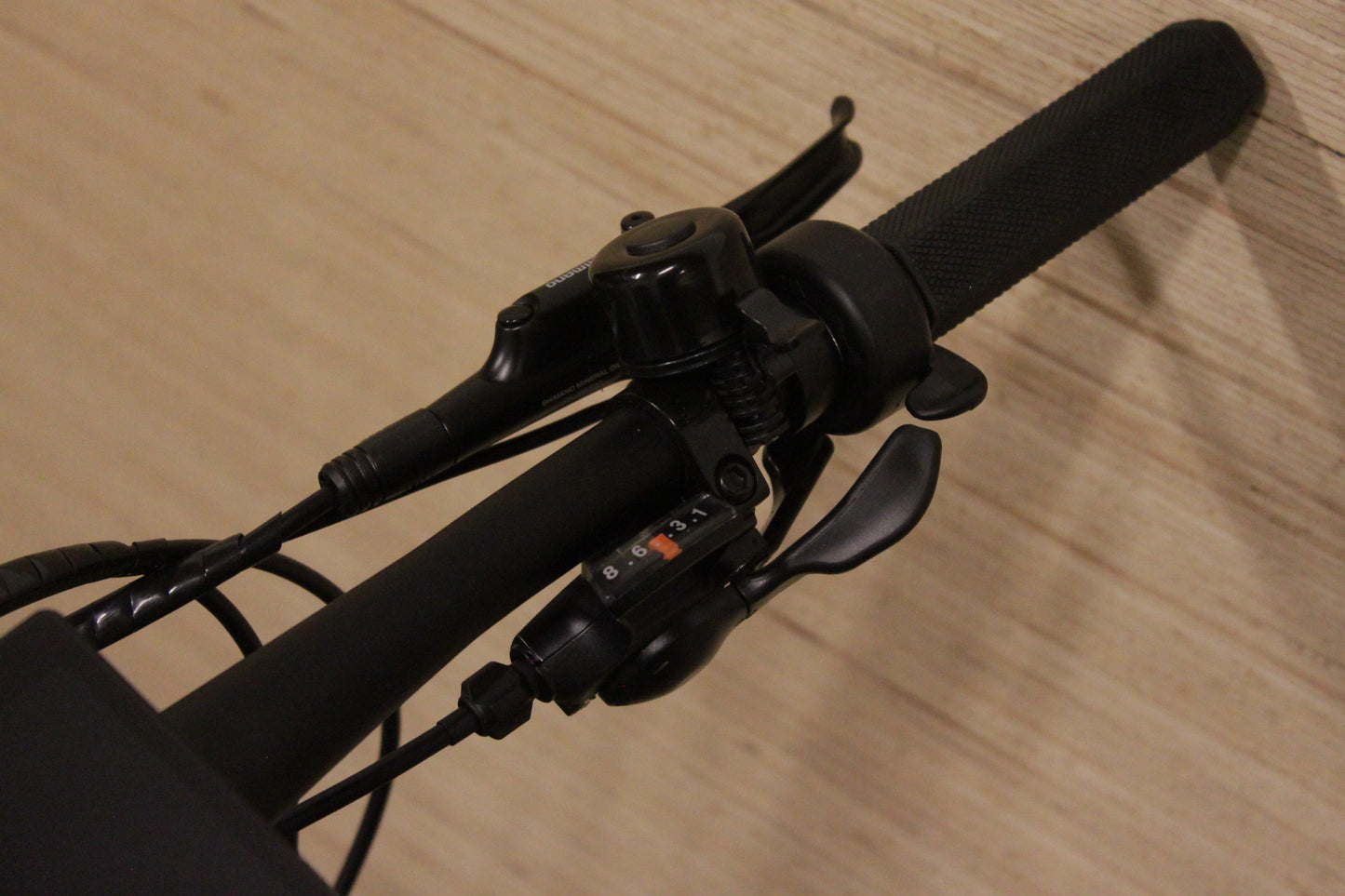

Right Shifter:Shimano 8 speed Altus rapidfire

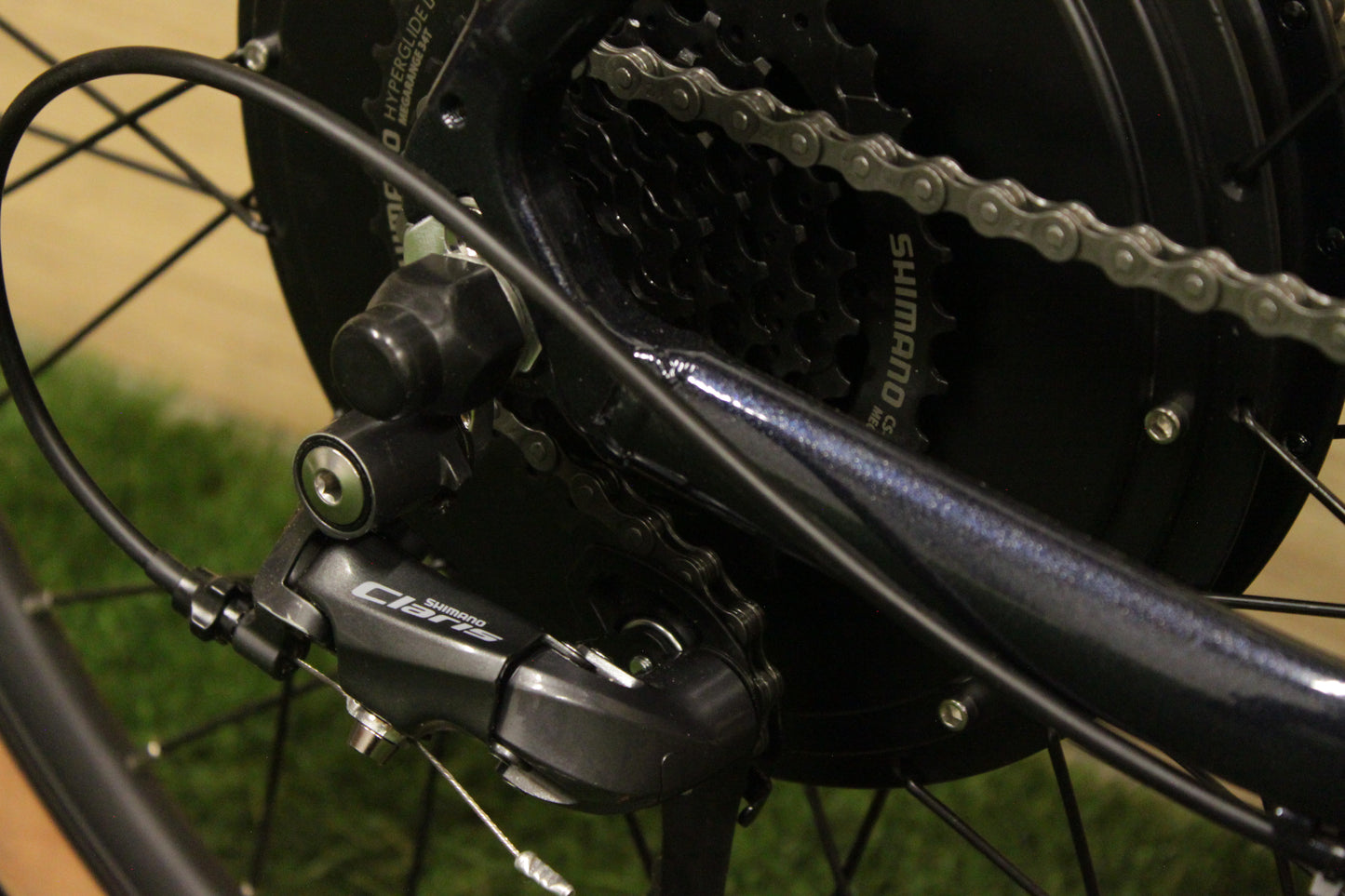

Rear derailleur:Shimano Claris RD-R2000GS 8 speed

Left Shifter: Shimano 2 speed Altus rapidfire

Front derailleur: Shimano Claris

Packaging:

This ebike arrives well packaged with minimal assembly time out the box (tools included). Attach the front quick release wheel, saddle, handlebar and pedals and it's ready to ride.

Please Note:

By purchasing this e-bike, you acknowledge that you have reviewed the specific legal requirements for its use under UK law, including Government guidance on electric bike (EAPC) rules. You agree that Ebike Converters Limited bears no liability for any legal consequences, fines, or accidents resulting from the use of this vehicle, particularly if it is operated on public roads while failing to meet EAPC standards. You assume full responsibility for ensuring the bike is maintained safely and used in compliance with all local regulations.
